EVA/TPU Shoes Foam Thick Plate Production Line
PRODUCT video

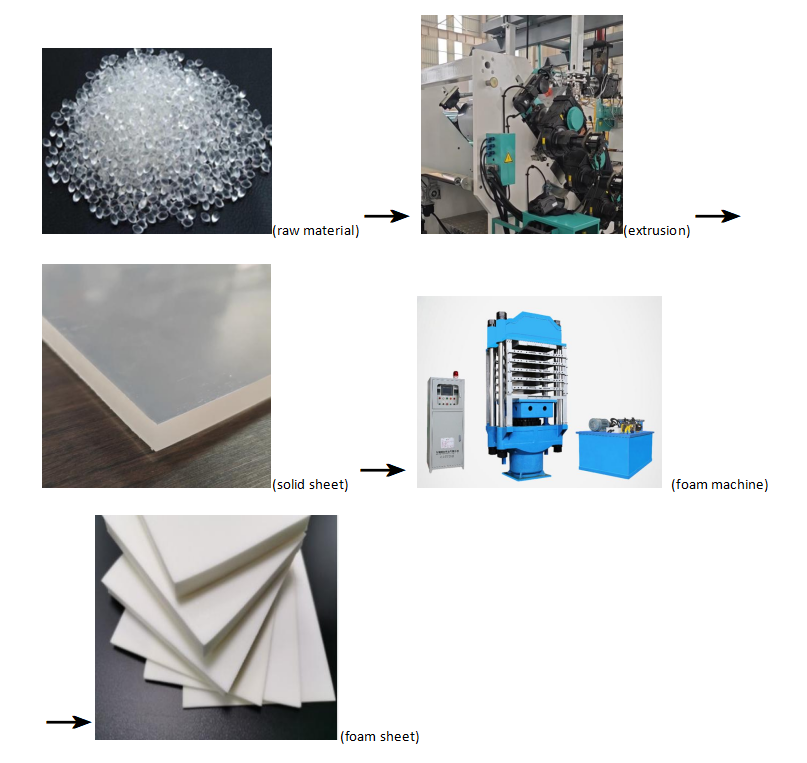

Production Process
PRODUCT DESCRIPTION
Most sports shoes are made of EVA and POE midsoles. EVA is soft and has good shock absorption, while POE has good durability and high resilience.
Supercritical fluid (SCF) refers to a fluid with pressure and temperature above the critical
point.
In the CO2 phase diagram (Figure 1), O is the triple point, at which point the three-
phase equilibrium states coexist. Point C is the endpoint of the equilibrium line between
gas and liquid phases, known as the critical point. At this point, the temperature and
pressure are respectively the critical temperature and critical pressure.
SCF maintains gas like properties while also exhibiting liquid like properties. Its diffusion
coefficient is 10-100 times that of a liquid. Excellent permeability, flow, heat and mass
transfer performance, therefore it has strong solubility for many substances and can
extract and separate non-volatile and thermosensitive substances at lower temperatures
PRODUCT application
PVC WPC door panels have wide application in house building decorative material, such as door panel, wide hollow board, partition board to divide room space, having many advantages like moisture proof, corrosion-proof, high temperature resistant, easy to clean, light, heat preservation, sound insulation, simple installation, simple manufacturing process and diverse styles.
1.Wood-plastic door panels have the same processing performance as logs, can be nailed, drilled, cut, bonded, fixed with nails or bolts, smooth and delicate surface, no sanding, its film adhesion is good, can also be peritoneal according to personal preferences.
2. With fire, waterproof, corrosion, moisture resistance, not eaten by insects, effectively eliminate insects, prolong service life, acid and alkali resistance, harmless, pollution-free and other excellent performance, low maintenance costs.
3. The use of similar wood appearance, higher hardness than plastic, long life, thermoplastic molding, high strength, energy saving.
4. Strong quality, light weight, heat preservation, smooth surface, no formaldehyde and other harmful substances, harmless, pollution-free.
5. Colorful, there are many colors to choose from. It has a natural wood feel and wood texture, and can customize the color you need according to your personality
6 Strong plasticity, can be very simple to achieve personalized modeling, fully reflect the personality style.
7. Reasonable structure, high strength fast installation structure, time-saving installation, product serialization, rich style, strong compatibility
8. Good thermal insulation and sound insulation performance
Middle layer：Bio-circular balanced EVA&POE

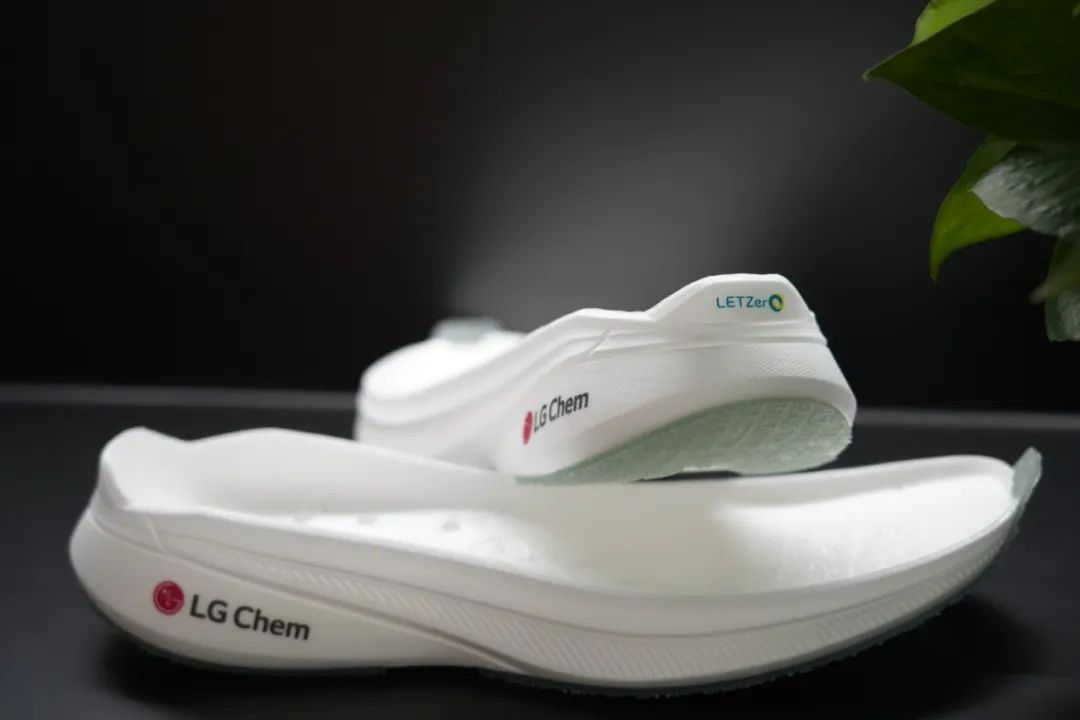

EVA material is mainly used to improve the softness of shoes. Generally, the rebound of pure EVA foam material is between 40% and 45%. However, LG Chem's Bio circular balanced EVA and POE midsoles made by supercritical foaming process can achieve a rebound rate of 71% and a density of 0.147g/cm3.

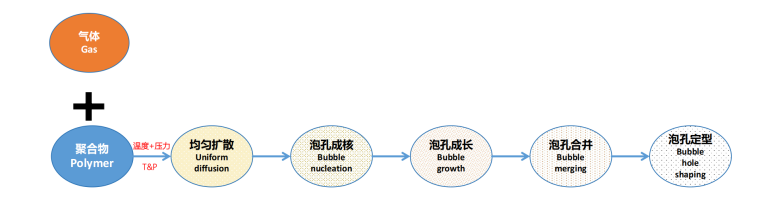

Foaming Principle

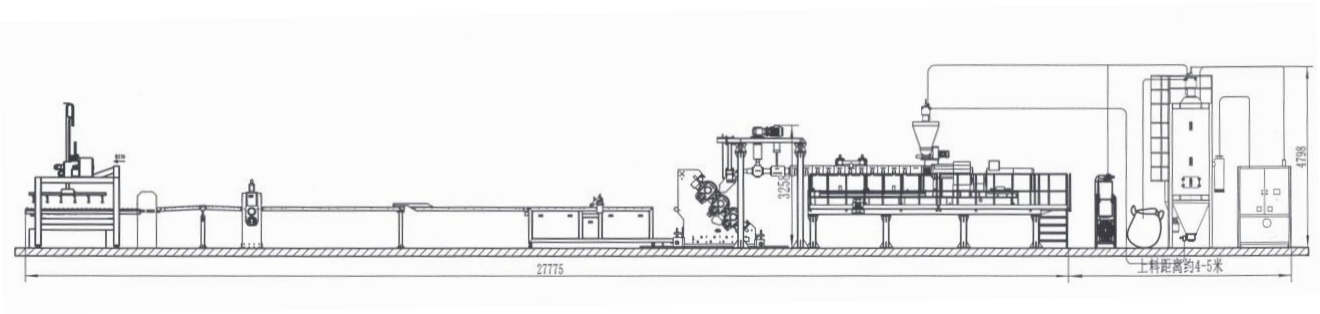

The production line layout

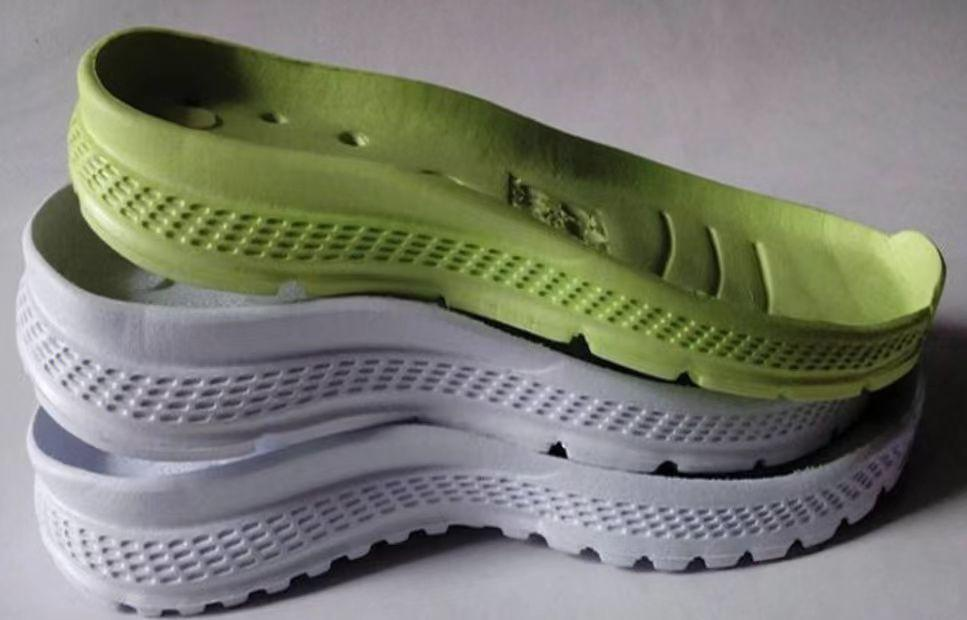

Product Application

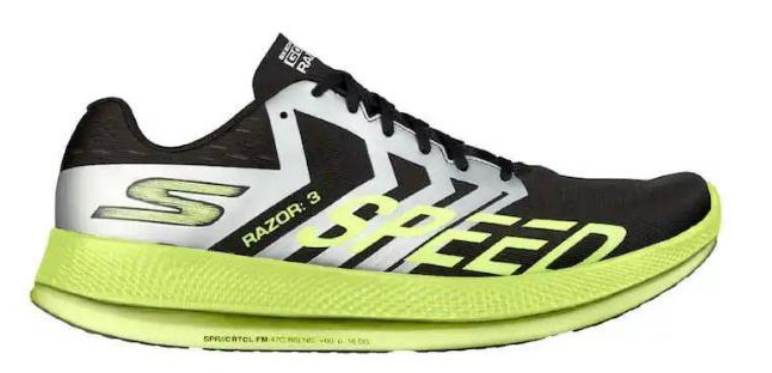

Sports shoes require wear resistance, anti-slip and beautiful, so the sole must be made of rubber with good wear resistance and excellent anti-slip performance.
