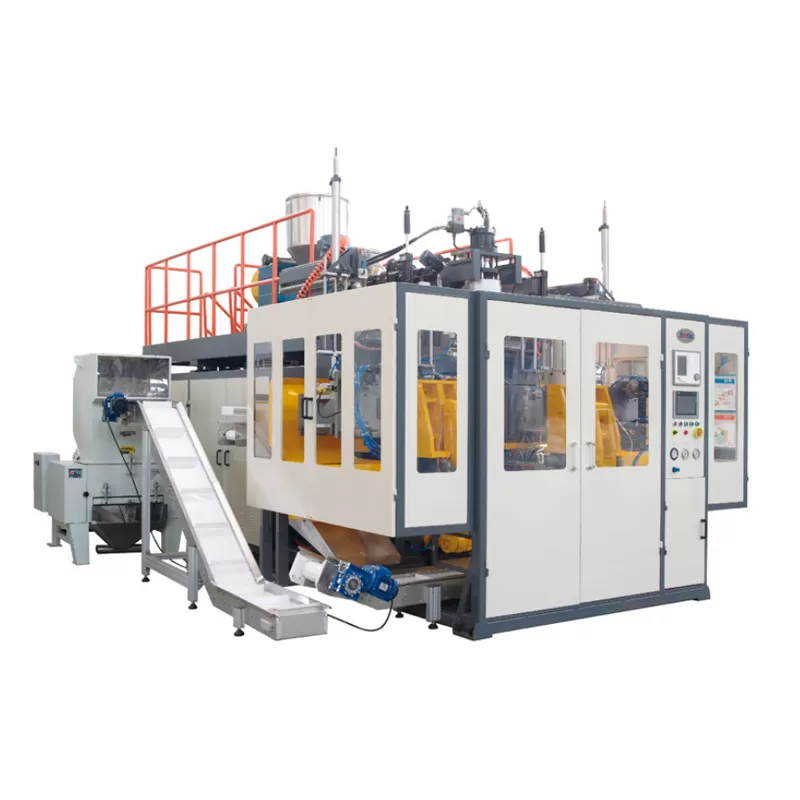

This blow molding machine produces plastic bottles from 100ml to 5000ml, including daily chemical containers, milk bottles, oil pots and toys. It supports multi-layer co-extrusion, customizable multi-die heads and hydraulic screen changers. Optional configurations cover in-mold labeling, online trimming, automatic conveying and packing to meet diversified production demands.
Model | Unit | BM05D | BM12D | BM20D |
Max product volume | L | 5 | 12 | 20 |
Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
Die head structure | Continuous type | |||
Main screw diameter | mm | 75 | 90 | 90 |
Max. plasticizing capacity (PE) | kg/h | 90 | 160 | 160 |
Driving motor | kw | 30 | 45 | 45 |
Oil pump motor power | kw | 11 | 15 | 15 |
Clamping force | KN | 70 | 120 | 160 |
Max. space between platen | mm | 150-510 | 240-640 | 280-680 |
Platen size W*H | mm | 350*400 | 450*500 | 500*520 |
Max. mould size | mm | 360*400 | 500*520 | 560*520 |
Platen moving stroke | mm | 450/520 | 600/650 | 650 |
Heating power of die head | kw | 7.5 | 10 | 12.5 |
Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
Machine weight | T | 8.5 | 12 | 14 |
Total power | kw | 60 | 90 | 93 |

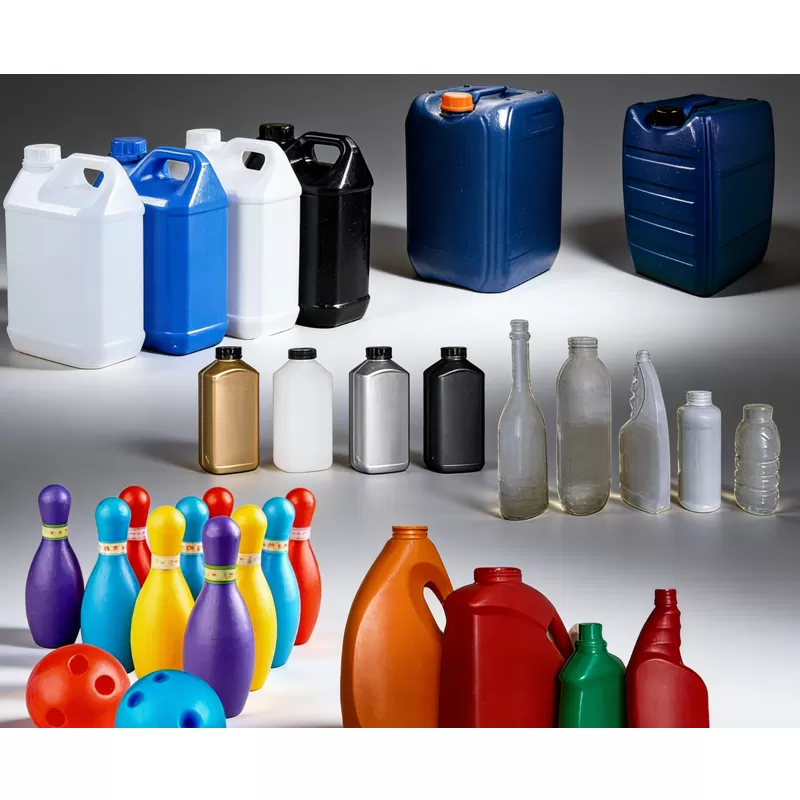

Suitable for the production of various specifications of 100ml~3000ml milk bottles, soy sauce pots, rice wine pots, 200ml~5000ml various shampoo, shower gel, detergent, and other cleaning products plastic bottles;
Optional pearlescent layer co-extrusion system;
According to product specifications, optional double die head, three die head, four die head, six die head;
According to the raw material, JW-DB plate single-station hydraulic screen changing system can be selected;
According to product specifications, optional double die head, three die head, four die head, six die head;
According to customer requirements, add in-mold labeling machine, online burr removal, online burr conveying, online finished product conveying, online packing, etc.
This equipment is applicable to the production of oil pots, lubricating oil pots, cooling water tanks, etc. with a capacity of 1-5 liters. The production line supports multi-layer co-extrusion, and can optionally be equipped with online trimming, online conveying and customized services.

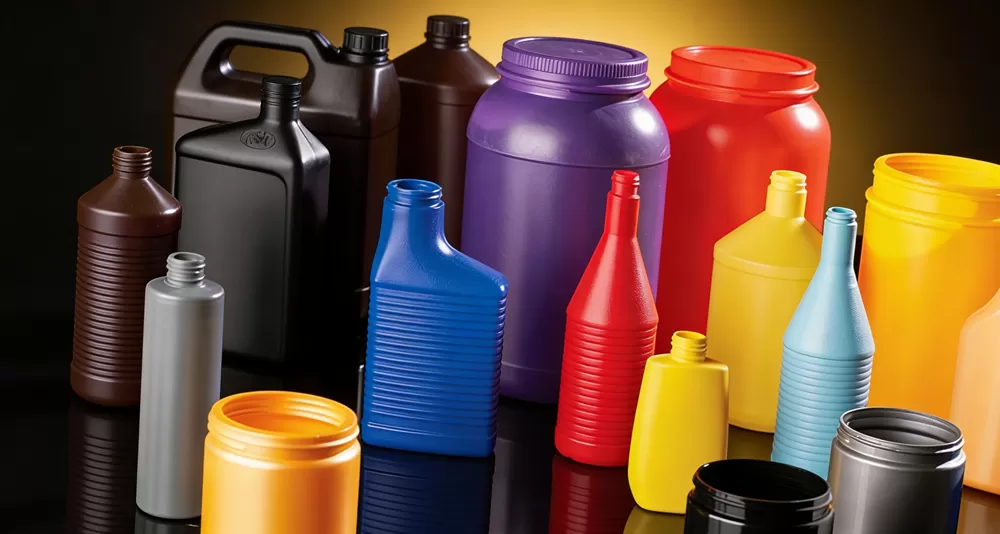

This molding machine is suitable for producing various bottles of 100ml-3000ml specifications, such as milk bottles and soy sauce pots; 200ml-5000ml daily chemical bottles, such as shampoo bottles, bath gel bottles and various children's toys.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
