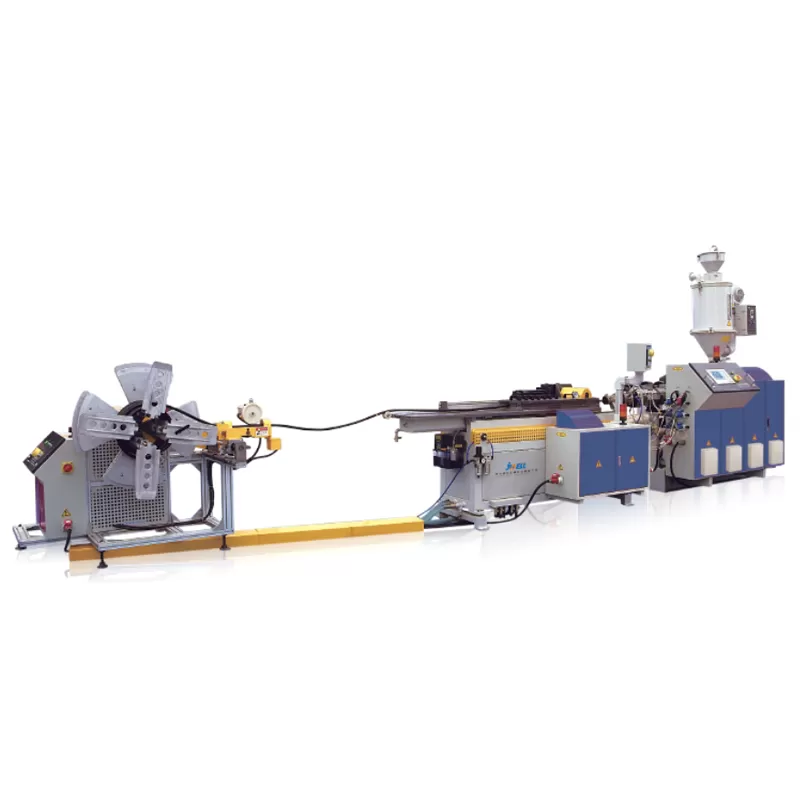

This Jwell extrusion line produces HDPE/PP/PVC single & double-wall corrugated pipes with full-automatic PLC control and multiple patents. It adopts corresponding extruders for different materials, advanced horizontal corrugator with closed water cooling and online socketing, realizing stable, high-efficiency production with high-strength, durable finished pipes.
Type | JWDPG-25 | JWDPG-50 | JWDPG-63 | JWSB150 |
Screw diameter(mm) | Φ45 | Φ65 | Φ65 | Φ75 |
L/D | 30 : 1 | 33 : 1 | 33 : 1 | 33 : 1 |
Total power(kW) | 50 | 70 | 70 | 100 |
Pipe spec(mm) | Φ8-Φ20 | Φ12-Φ50 | Φ12-Φ63 | Φ90-Φ150 |
Max. speed(m/min) | 25 | 15 | 10 | 5 |
HDPE/PP/PVC single wall corrugated and double-wall corrugated pipe extrusion line offered by Jwell features full automatic control. Jwell as corrugated pipe machine manufacturer has many patents. Our single wall corrugated pipe machine is designed for stable operation and high capacity, ensuring efficiency and reliability in production. Similarly, our double wall corrugated pipe machine ensures the creation of pipes with superior structural integrity, offering enhanced strength and durability.

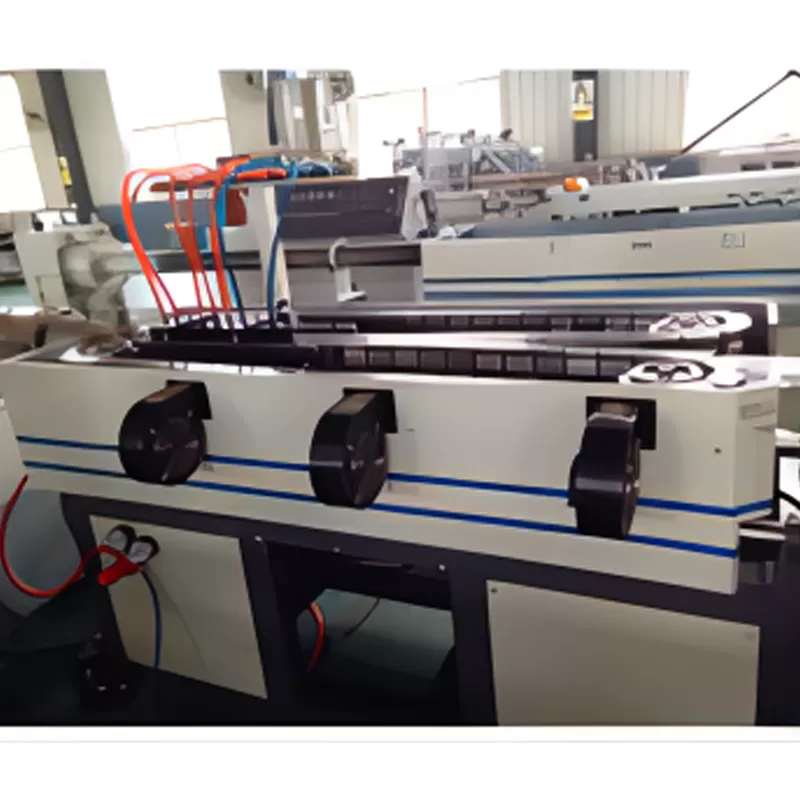

HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder machine or parallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole corrugated pipe production line is controlled by PLC computer.
If you take interest in corrugated pipe production line or corrugated pipe extrusion line, please feel free to contact us for corrugated pipe extrusion line price.
New Corrugated Pipe Extrusion Line for Ventilation System high precision for front-back adjustment, according to air ventilation pipe, specially design for the mould. New vertical type water cooling corrugator, precisely location of mould block, easy to change the mould.
It is widely used in highway, railway subgrade, subway project, waste landfill, tunnel, green belt, sports ground, slope protection caused by high water content and other drainage fields, as well as underground irrigation and drainage system of agriculture and horticulture.

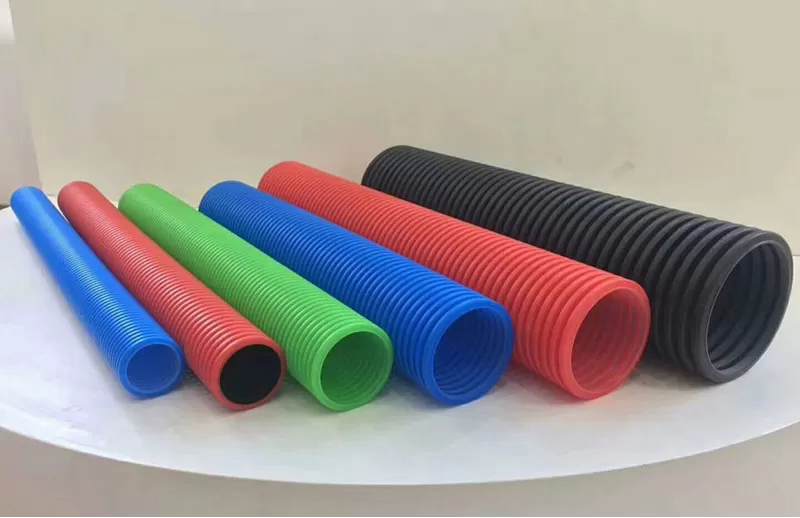

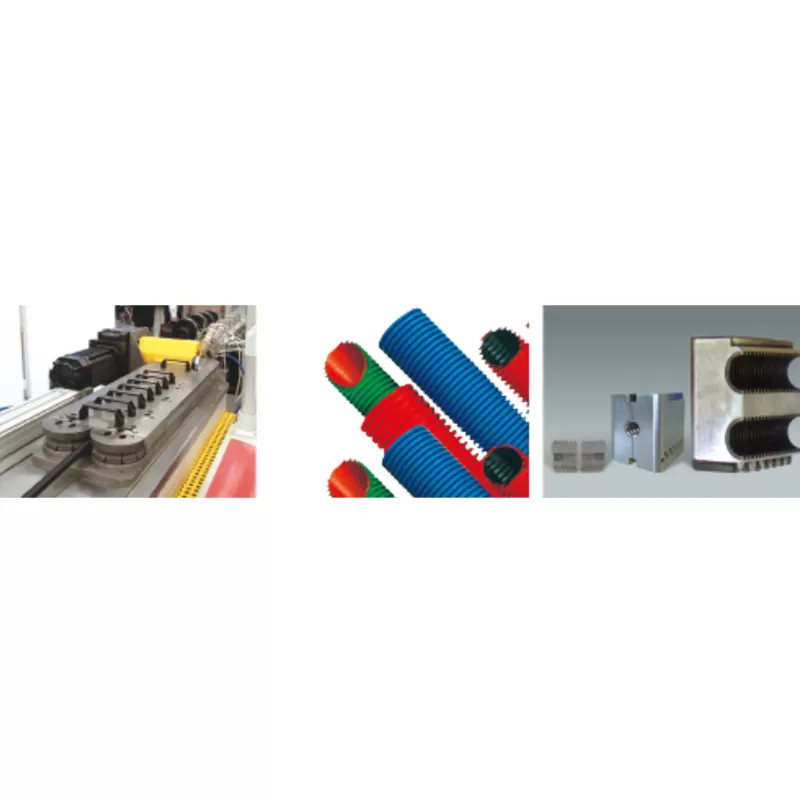

This series production line is suitable for the production of small-diameter single-wall corrugated pipe with raw materials such as PP/PE/PA. The special mold can be molded at one time. The surface of the product pipe is smooth and delicate, and the ripple is clear and uniform. Widely used in wire and cable threading pipe, automotive interior circuit protection pipe, concrete pipe, farmland pipe and other fields.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
