The gearbox adopts a high-torque design to achieve low noise and stable operation. The screw and barrel have undergone special surface treatment, which has the characteristics of wear resistance, good mixing effect and high output. The design of vacuum exhaust or natural exhaust port can remove moisture and exhaust gas during the production process, so that the output is more stable, the particles are more dense, and the excellent quality of the product is guaranteed.
Model | L/D | Output capacity (kg/h) | Screw dia (mm) | Power of main motor (kw) |
JWL120 | 120/30 | 250-320 | 133 | 75 |
120/12 | 37 | |||
JWL150 | 150/30 | 380-450 | 159 | 132 |
150/12 | 45 | |||
JWL160 | 160/30 | 450-580 | 159 | 160 |
160/12 | 55 | |||
JWL180 | 180/30 | 550-650 | 159 | 220 |
180/12 | 75 |

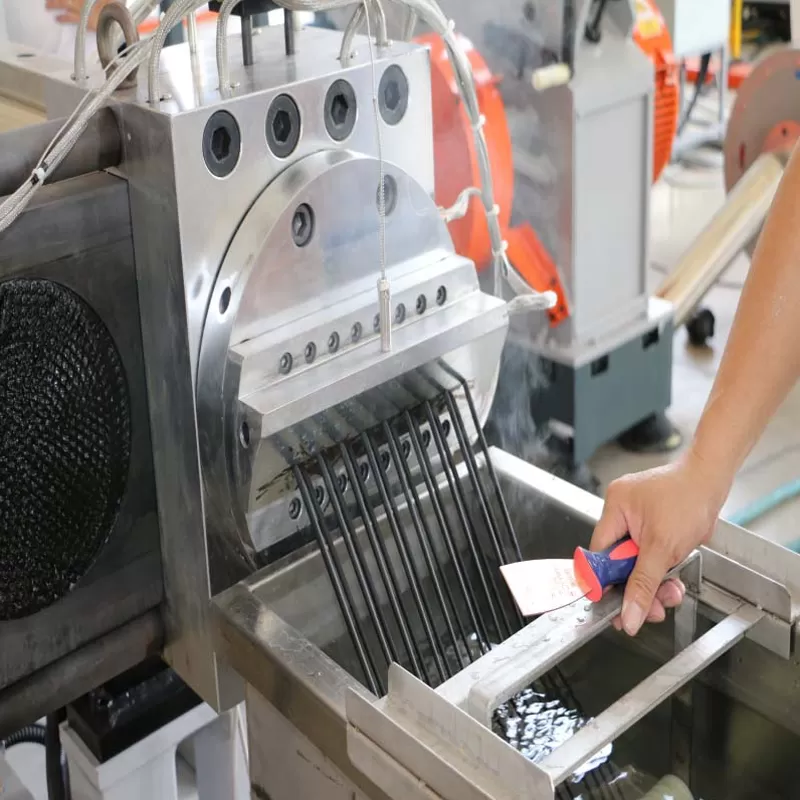

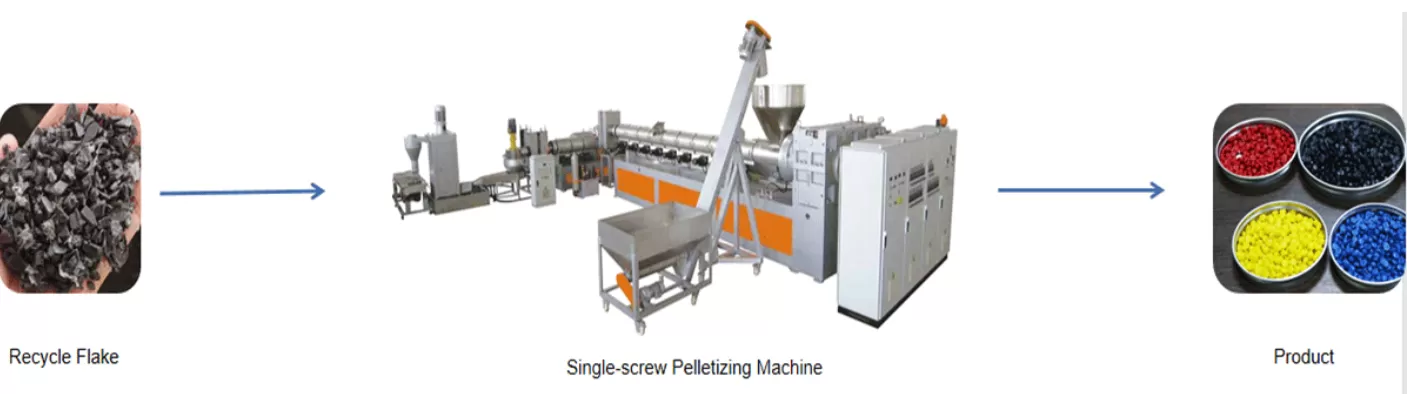

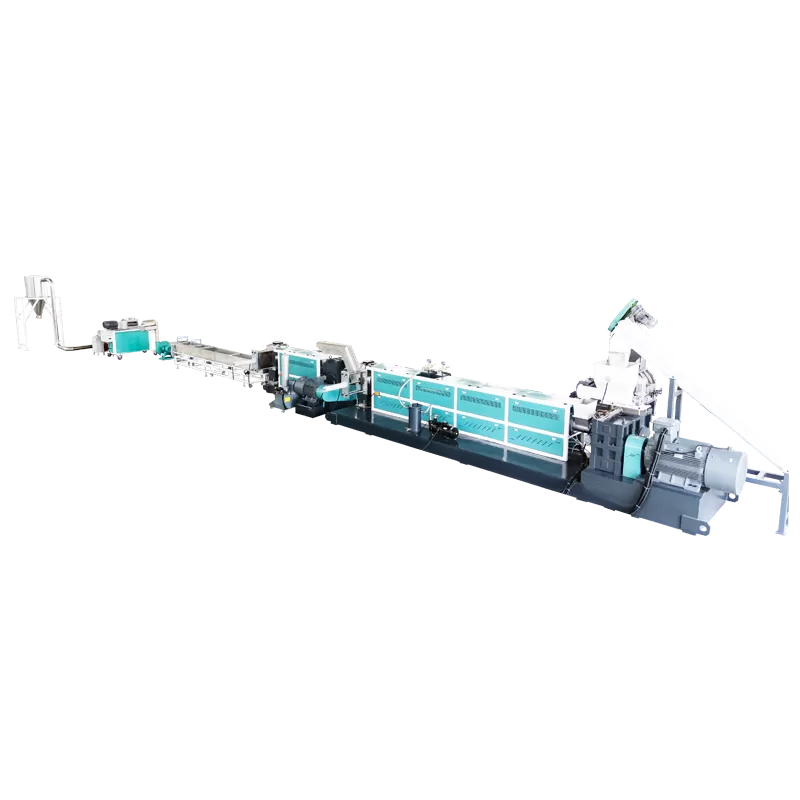

The JWL series single screw extrusion and pelletizing system is a specialized and reliable system, suitable to the recycling and re-pelletizing job of rigid plastic scrap. It combines function of plasticization and pelletizing to one step and is ideal for crushed regrinds or flakes of PE/PP/ABS/PS/HIPS/PC etc.

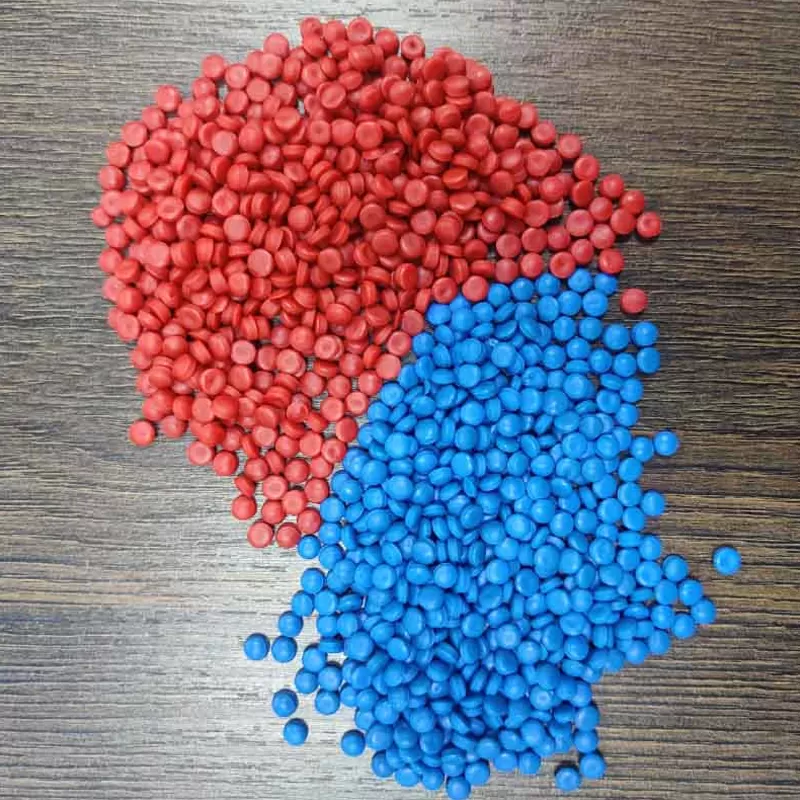

Final productions produced by ASE single screw extrusion line are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion cand plastics injection, etc.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
