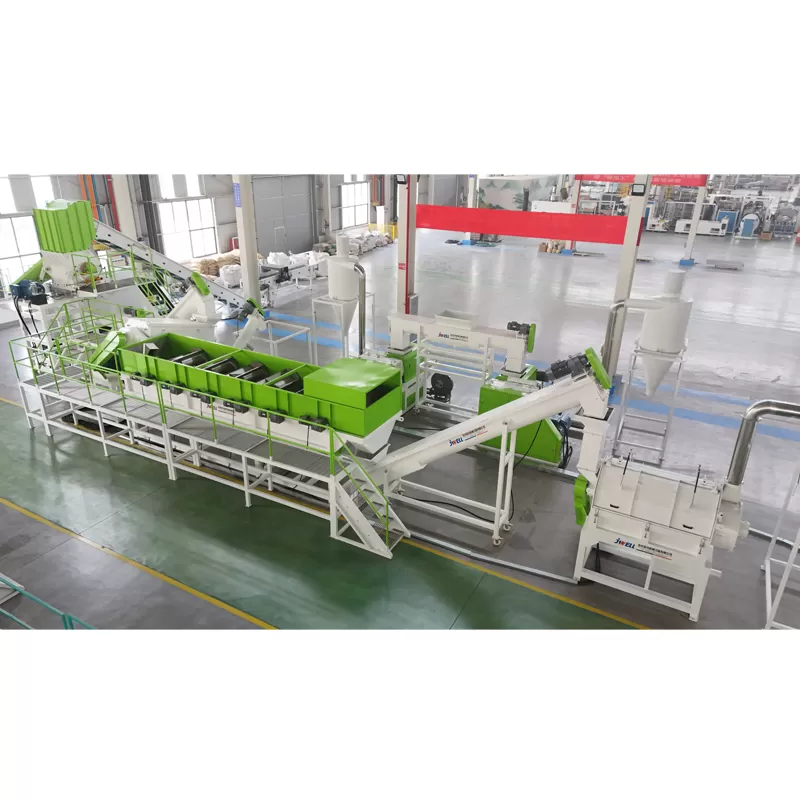

This film recycling line cleans and recycles polluted PP, PE, PET films including agricultural film, packaging film and woven bags. The treated materials are applicable for granulation, extrusion and film blowing. With output of 500–1500kg/h, it supports personalized customization.
| Model | Main motor | Washing type | composed of | Output capacity |
| power (KW) | (kg/hr) | |||
| FDF PP PE | 200KW | Water washing | Shredder+crusher+washing+dryer+pelletizing | 1000KG/HR |

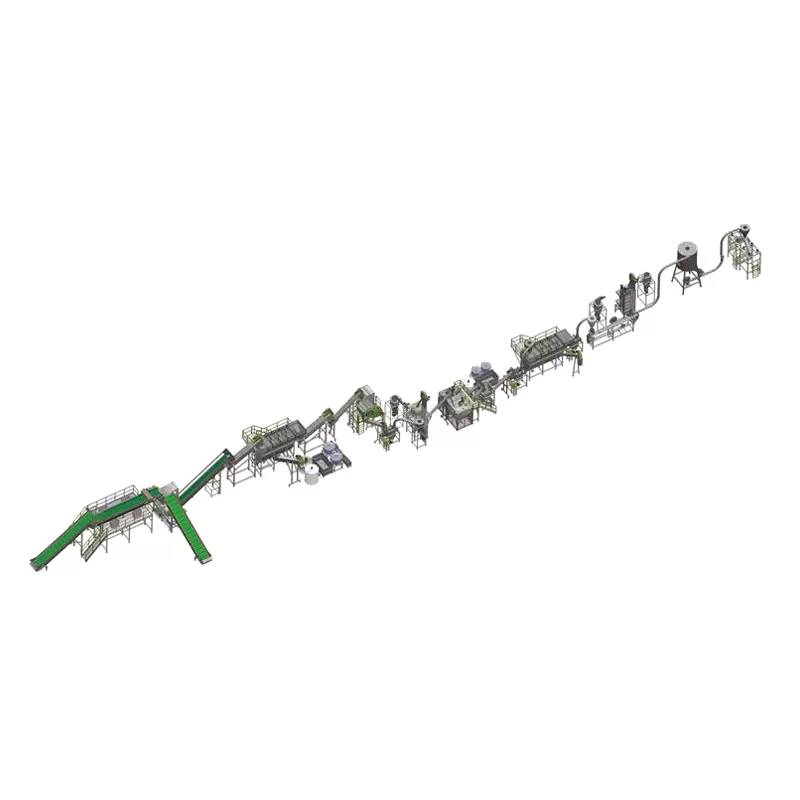

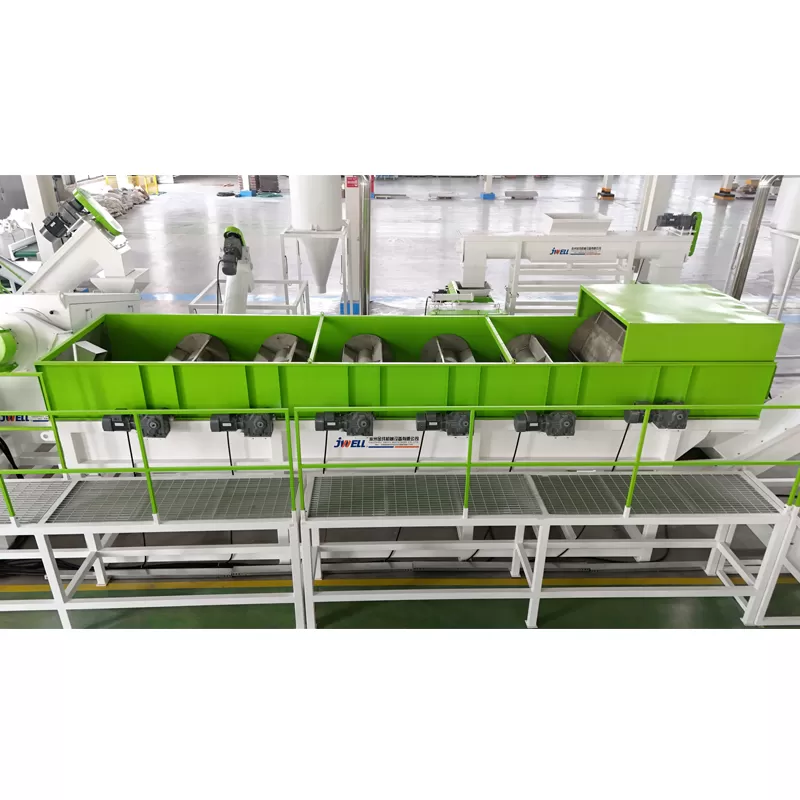

Equipment list: shredder+crusher+high speed friction machine+washing tank+Dehydrator+Squeezer and so on.
Crushing friction cleaning rinsing friction cleaning squeezing drying quantitative feeding two-stage granulation.
The first type of material that uses an extrusion dryer is not recommended for relatively white materials, as the plasticization rate of the material can reach 70% during the process of squeezing and removing moisture. If the material is plasticized again, it will lead to a decrease in the final particle quality and a darker color.
It is generally recommended that customers adopt the second option, which has the advantage of low noise during equipment operation.
The cleaning process of the second solution is basically the same, mainly the dehydration stage is different. High speed dehydration and spin drying are used, and the moisture content of the dehydrated material is about 10%～13%. Therefore, hot air drying is also required in the later stage. The power of hot air drying varies depending on the production volume. The cleaned and dried material is in a fluffy state, so granulation needs to be carried out using a compact bin. The compact bin can cut the material into small pieces and force them into the main machine screw to increase production.
The equipment can be used for cleaning and recycling PP, PE, PET films with different levels of pollution, mainly including.
Food packaging film, garbage bags, waste agricultural film, greenhouse film, industrial packaging film, and woven bags, etc. The processed materials can be used for sales, granulation, injection molding, extrusion, and blown film, etc. The equipment output can reach 500kg/h-1500kg/h, and customized services can be provided according to different needs.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
