High Pressure RTP Twisted Composite Pipe Extrusion Line

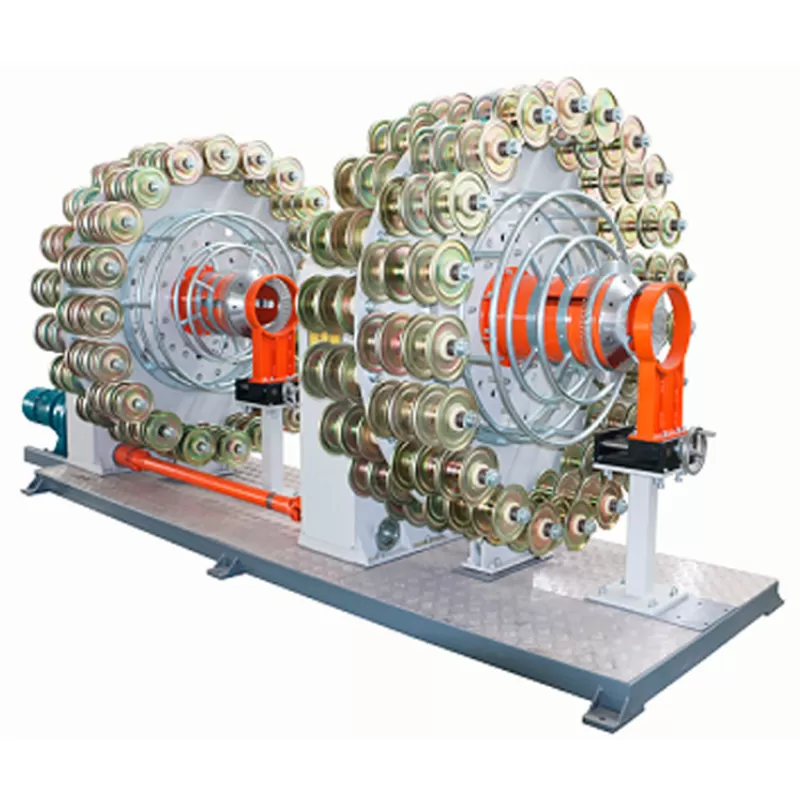

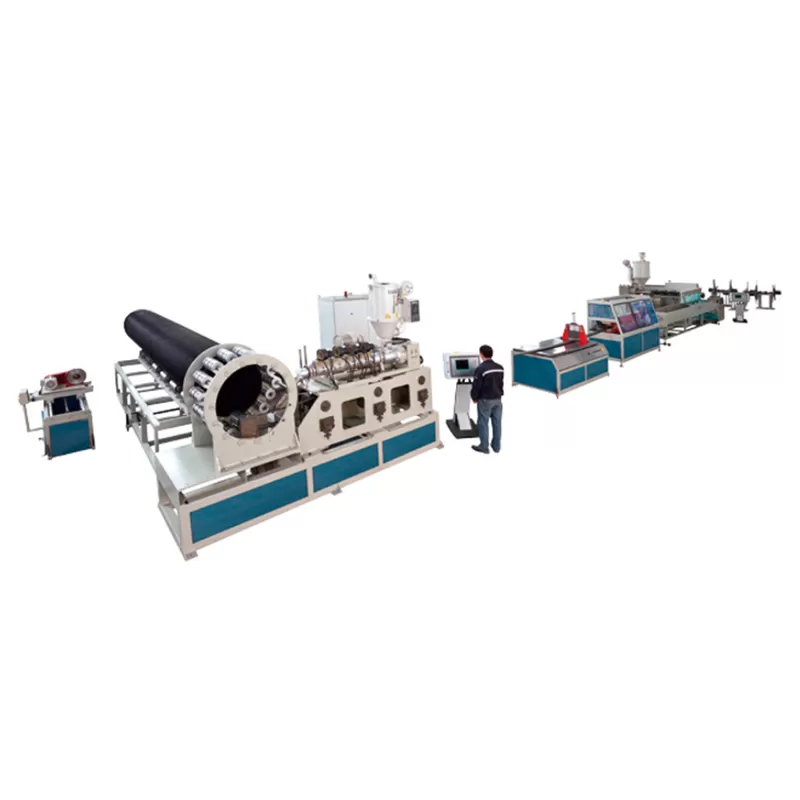

RTP Reinforced Spiral Pipe Extrusion Line is mainly composed of inner tube extrusion and outer coating extrusion systems, multiple sets of winding machines, cooling setting devices, winders and control systems. The use of computerized centralized data control enables accurate control of the precise weight control of the inner tube, simultaneous traction control, automatic tube-lined coiling, and automatic multi-station precise layer control in the process.

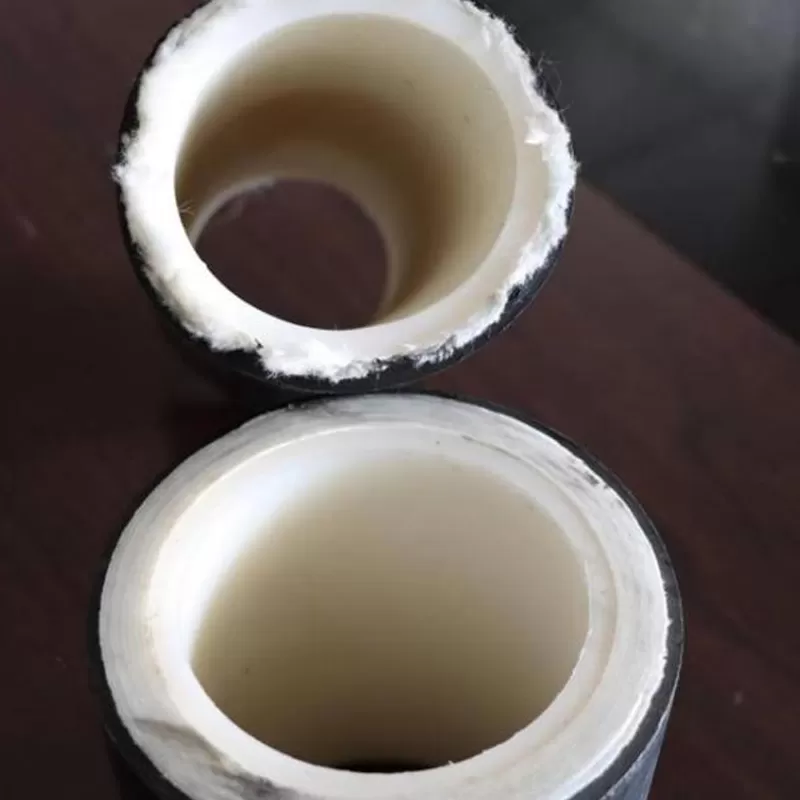

RTP winding reinforced composite pipe is a new type of plastic composite pipe with high pressure resistance, corrosion resistance and good flexibility. Used in petroleum, water supply and other high pressure conveying environment. The inner layer is corrosion-resistant and wear resistant polyethylene pipe, the middle layer is reinforced winding layer, and the outer layer is protective polyethylene layer.
Technical Parameter of High Pressure RTP Twisted Composite Pipe Extrusion Line
Type
Model
Extruder
Output(kg/h)
Power(kw)
JWG-RTP-160
Ø63~Ø160
JWSGX65/38
120-300
160
JWG-RTP-250
Ø75~Ø250
JWSG×75/38
300-500
210
JWG-RTP-315
Ø110~Ø315
JWSGX75/38
300-500
210
Performance and Advantages of High Pressure RTP Twisted Composite Pipe Extrusion Line
RTP winding reinforced composite pipe is a new type of plastic composite pipe that is resistant to high pressure, corrosion resistance and flexibility.
Used in petroleum, water supply and other high pressure transportation environment. The inner layer of the product is a corrosion-resistant and wear-resistant polyethylene pipe, the middle layer is a reinforced winding layer, and the outer layer is a protective polyethylene layer.
The working pressure of the aramid fiber-reinforced RTP tube can be as high as 9-14MPa and the burst pressure can be as high as 40MPa.
Application of High Pressure RTP Twisted Composite Pipe Extrusion Line
As a leading pipe extrusion machine line supplier, Jwell provides quality composite pipe extrusion production lines for RTP. RTP (Reinforced Thermoplastic Pipe) is a new type of pipe that combines the unique advantages of thermoplastic(PE80, PE100, PA, PER, PVDF, etc), such as flexibility, corrosion resistance, wear resistance with the advantages of reinforced materials(aramid fiber, polyester fiber, glass fiber and steel wire, etc), such as high strength and high pressure resistance. In many application fields, it has obvious advantages over traditional pipes, and even becomes the only choice. Hence, the industry's needs for quality composite pipe extrusion lines are also rising rapidly.

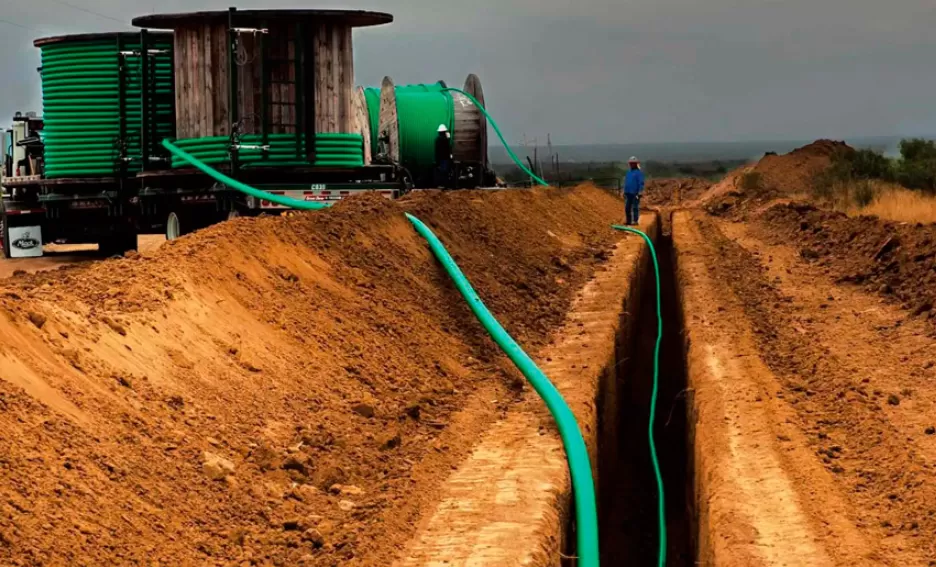

Based on the characteristics of high pressure resistance, high temperature resistance, corrosion resistance, strong flexibility and strong transportation capacity of RTP pipe, this RTP pipe could be used in oil and natural gas transportation, submarine water pipelines, hydraulic transmission system pipelines in mines and industries, and old pipeline restoration projects, etc.
