This PC pipe extrusion line produces transparent/semi-transparent PC/PMMA profiles for lampshades, LED lamp tubes and decorative parts, with PS, PC and PMMA as main raw materials. Equipped with efficient single-screw extruder designed per Japanese technology, precise imported steel calibrator and ball-screw cutter, it guarantees stable product dimensions with cutting tolerance within ±1.0mm.
Model | YF108 | YF108 | YF180 | YF240 | YF300 |
Product width(mm) | 108 | 108 | 180 | 240 | 300 |
Extruder model | JWS45 | JWS50 | JWS65 | JWS90 | JWS120 |
power(kw) | 15/11 | 22/18.5 | 30/22 | 55/45 | 90/75 |
Cooling water(m3/h) | 4 | 4 | 5 | 7 | 7 |

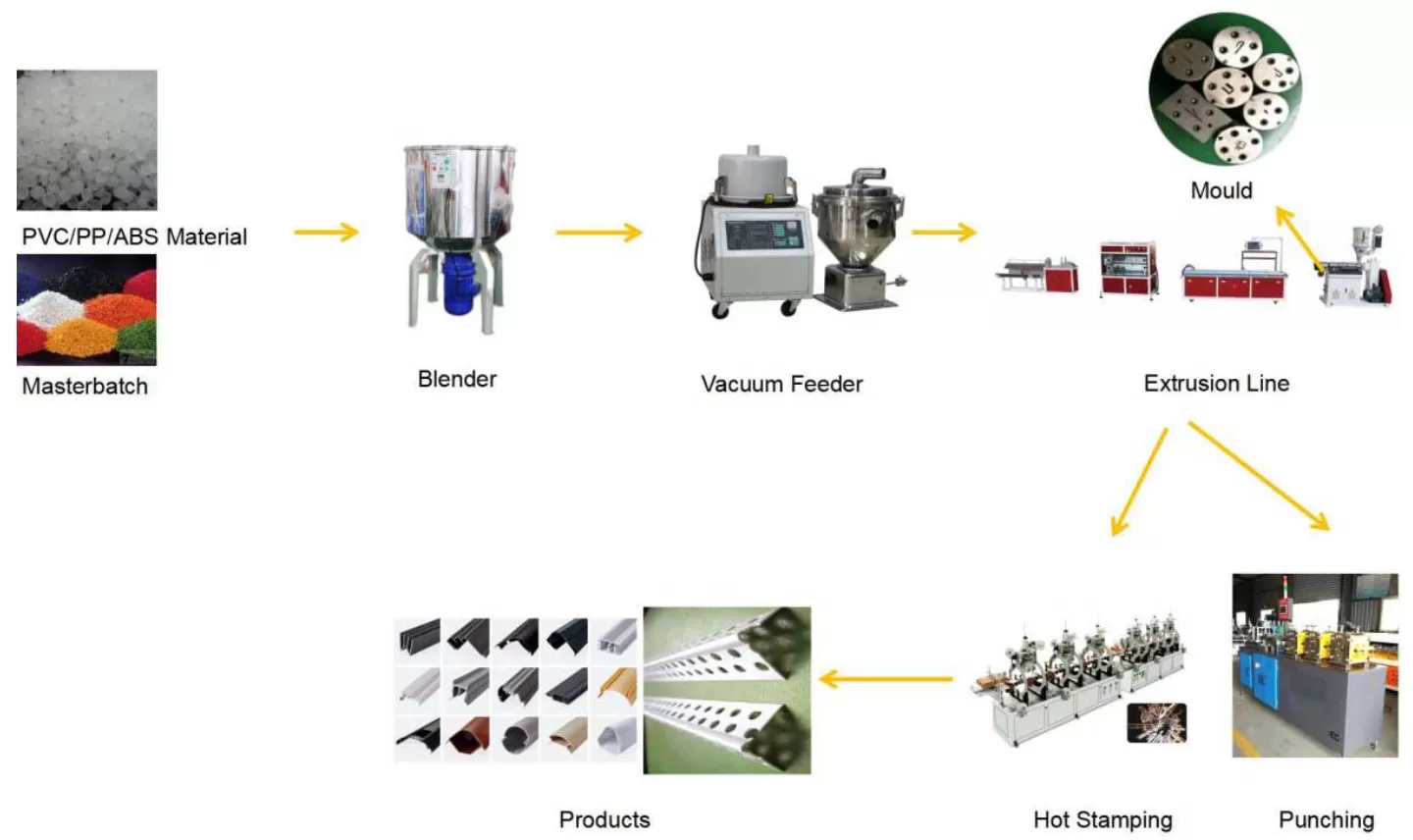

Production Process:
Raw material → Single-screw extruder →Extrusion mould →Vacuum calibration table → Haul-off → Cutter→ Stacker → Finished product inspecting & packing

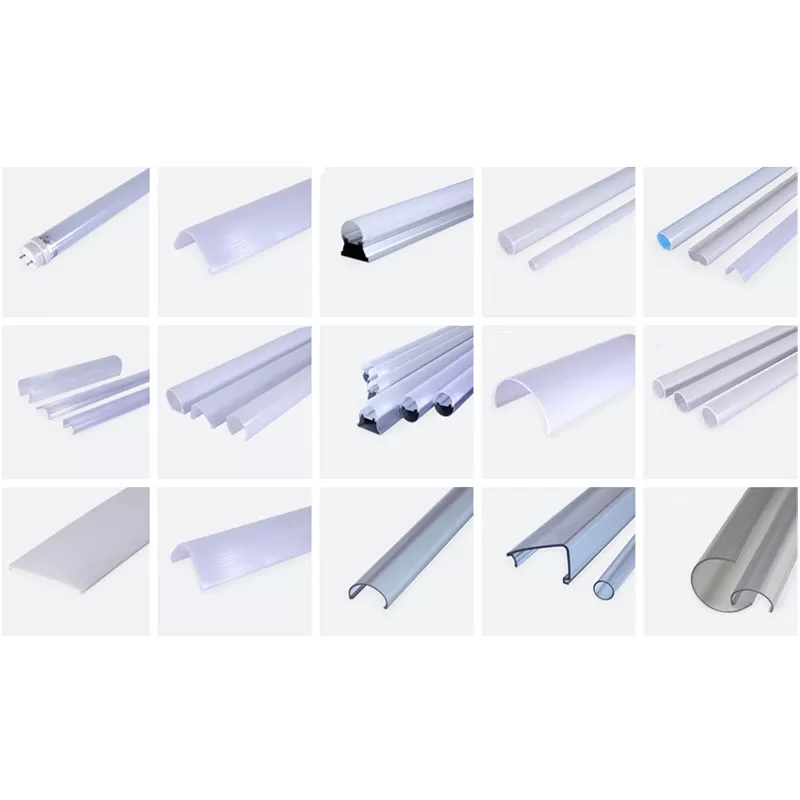

This PC pipe extrusion line is used for producing PC/PMMA transparent, semi-transparent lampshade, PC-LED energy-saving lamp chimney and fluorescent tube profile etc. The products are widely used in the fields of illumination and decoration. The main raw material is PS and engineering plastic (PC/PMMA) etc.

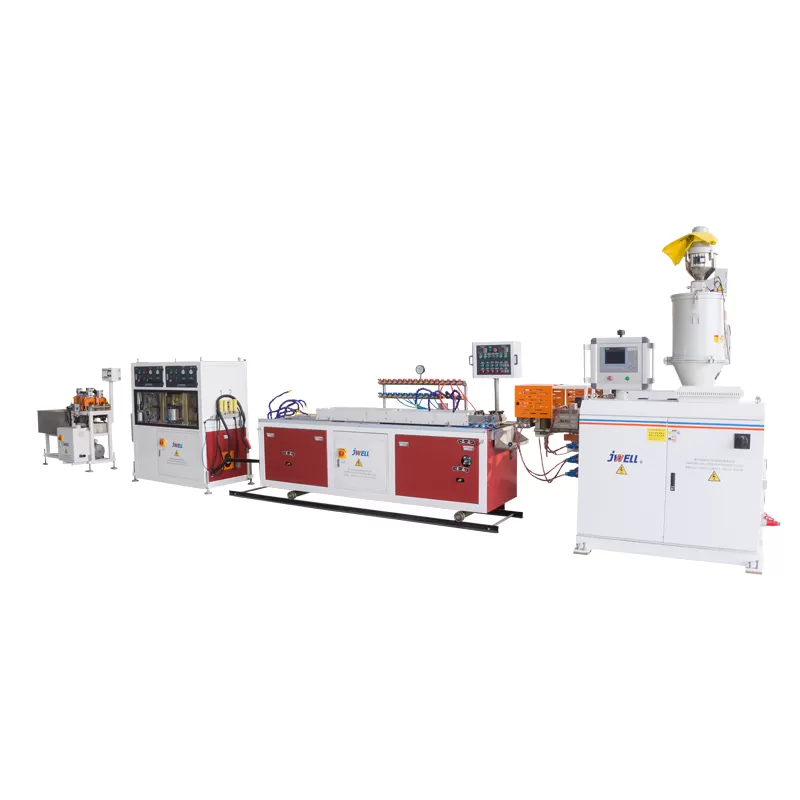

The production line includes high efficiency single screw extruder, calibration table, haul off, precise cutter, the screw and barrel adopts Japan technology is designed for PC/PMMA material. The profile calibrator made from imported steel and by precise processing, ensures the precise and stable size of the profile, the ball screw cutting type ensures the cutting precision +/-1.0mm.
Famous brand main motor, imported inverter and accurate electrical components.
High precision and wear-resisting gearbox, high efficiency transmission, long service life.
Optimal vacuum and temperature control systems guarantee good product quality and stable production.
The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.

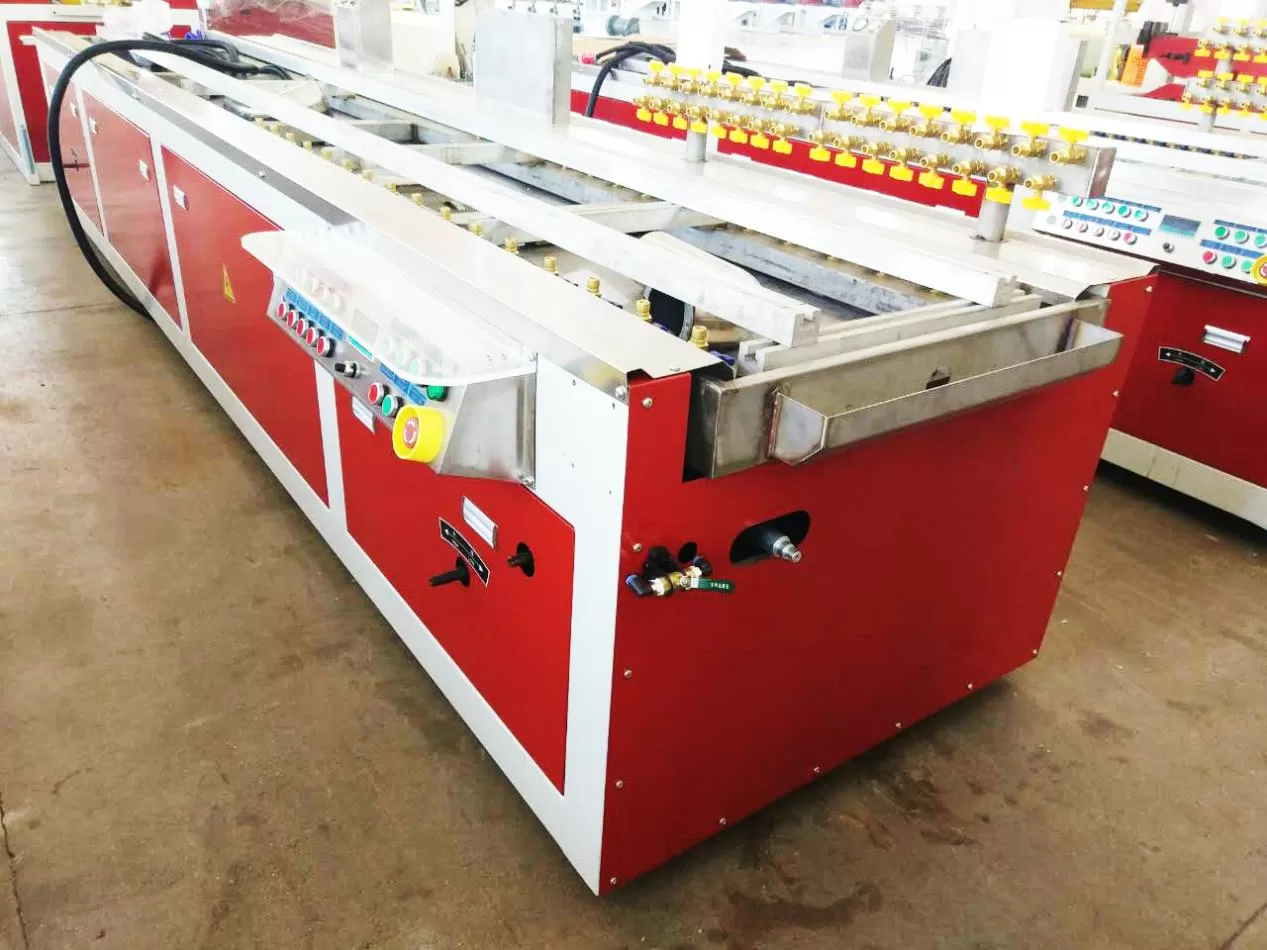

The flow of water and gas can be precisely controlled, perfect coordination of molding products.
Could be moved by motor or by hand.

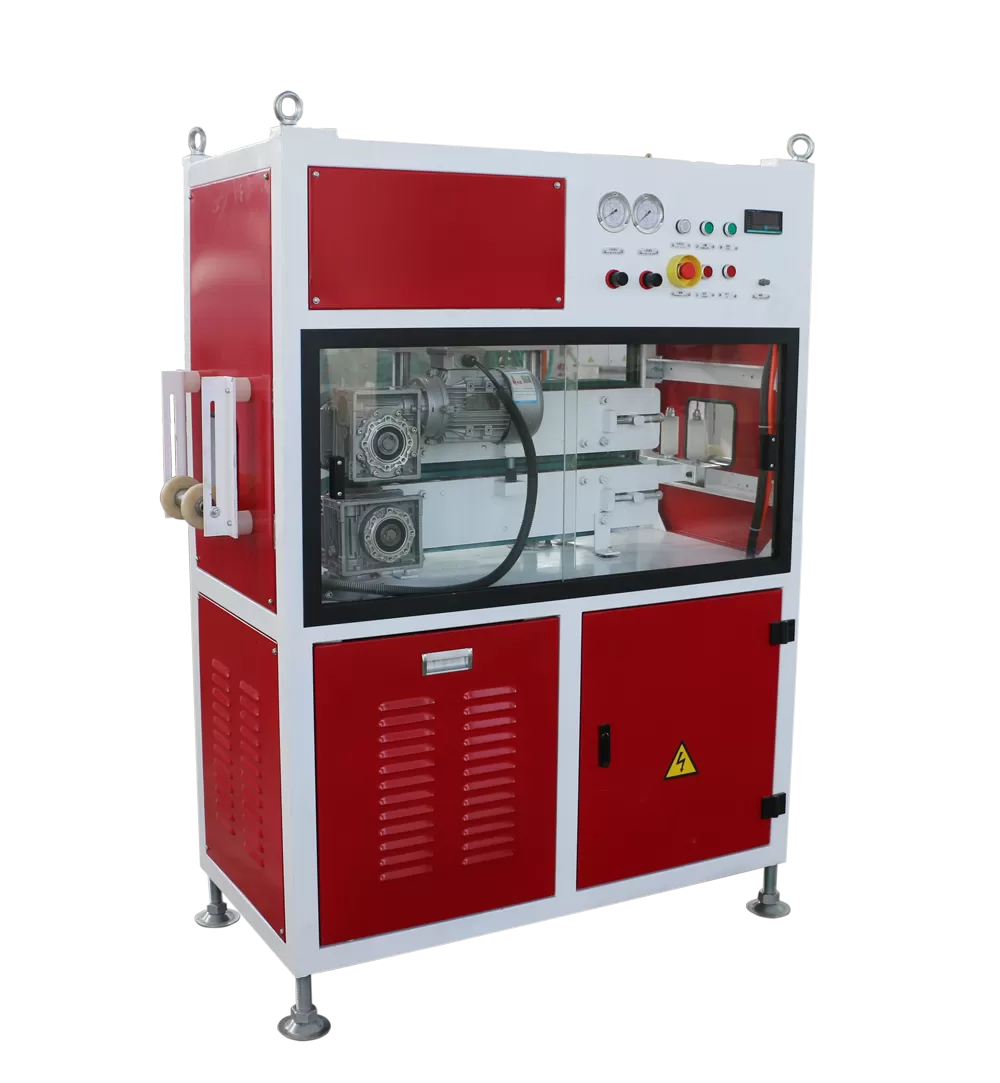

Two tractors driven by independent two motors.
Speed controlled by imported imported inverter.

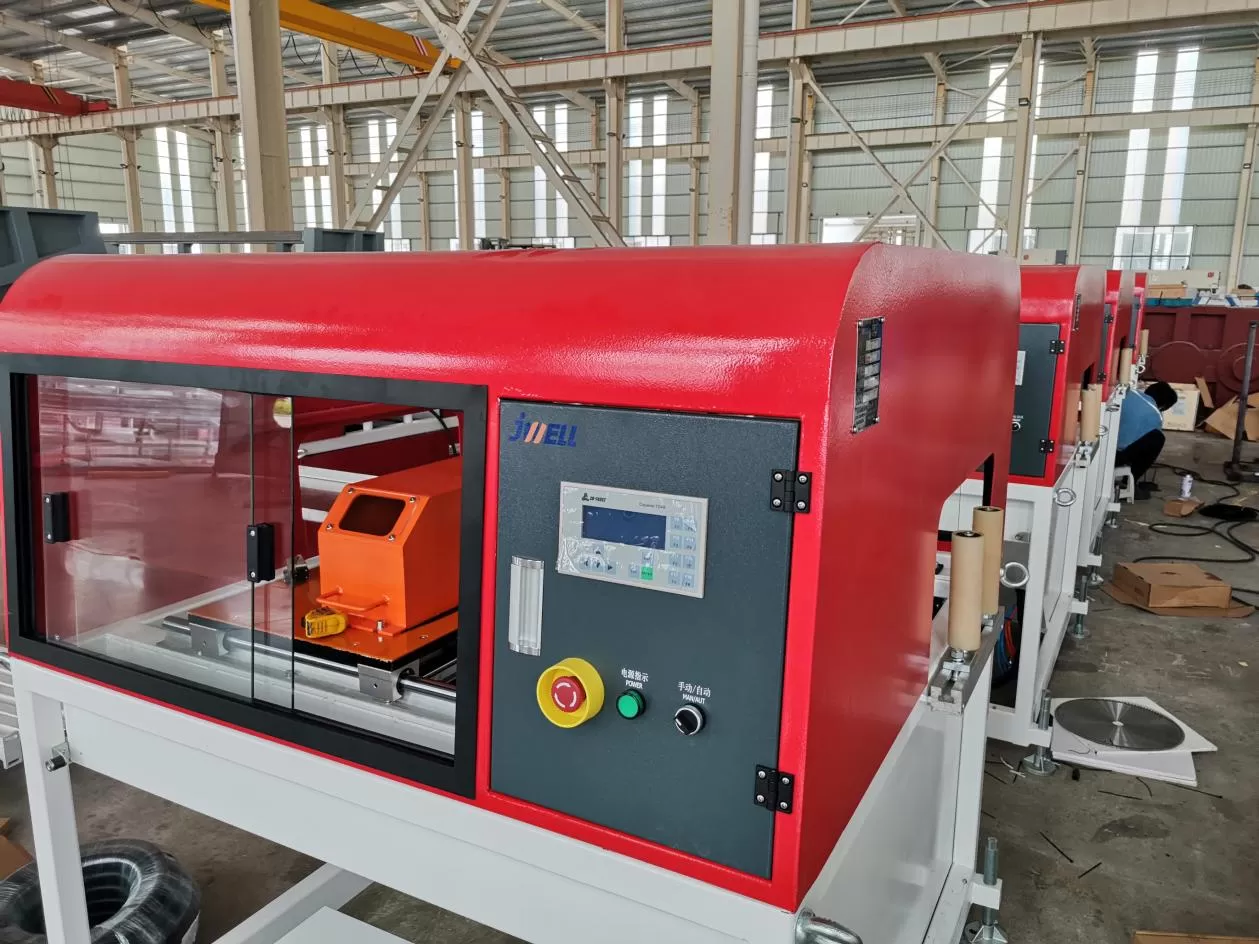

Accurate cutting length controlled by computer system.
Smooth cutting surface.
Manual cutting and automatic cutting choice.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
