This wood-plastic decorative material is widely used in home and commercial decoration, suitable for high-end wall finishes, ceilings, door/window casings and sound/thermal insulation. It features self-extinguishing, insect-proof, corrosion-resistant, waterproof properties, natural wood grain, easy processing and installation, low maintenance. The extruder adopts PLC or manual temperature control for efficient, reliable operation.
Type | YF108 | YF240 | YF240A | YF300 | YF400 |
Max width(mm) | 108 | 240 | 150*2 | 300 | 400 |
Extruder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
Max capacity(kg/h) | 150 | 250 | 250 | 250 | 450 |
Extruder power(kw) | 22 | 37 | 37 | 37 | 55 |
Cooling water(m3/h) | 7 | 8 | 8 | 8 | 8 |

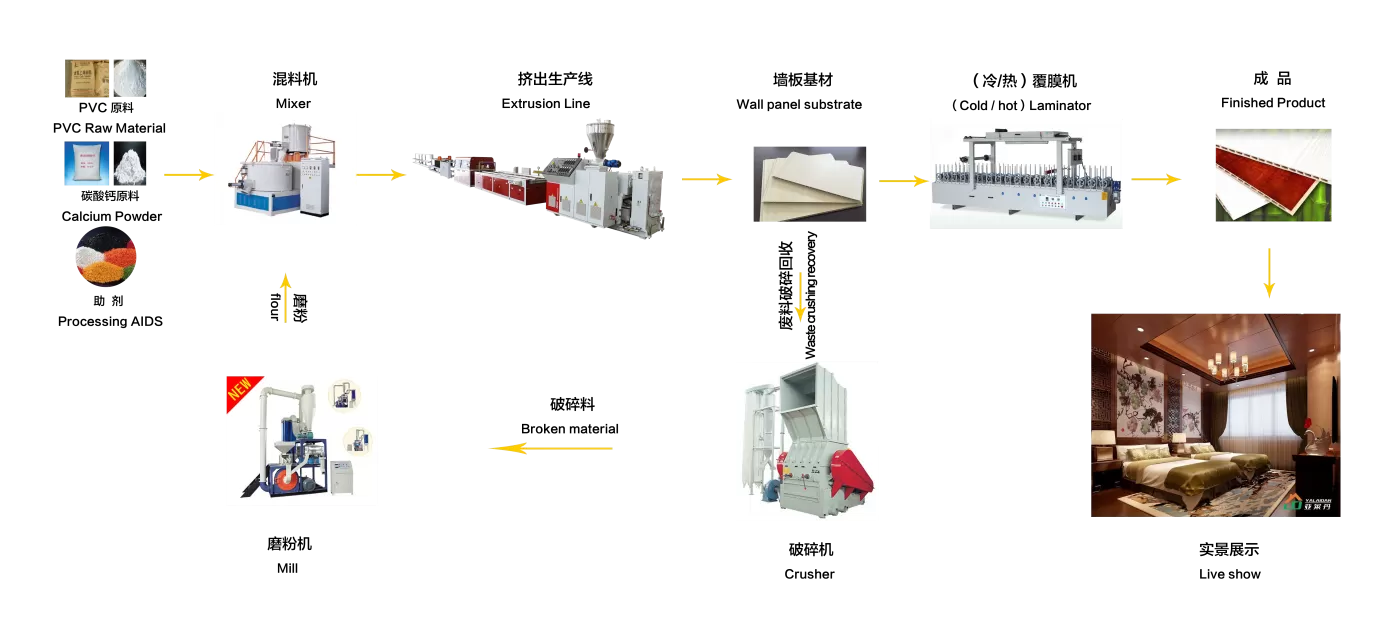

Production Flow:Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker

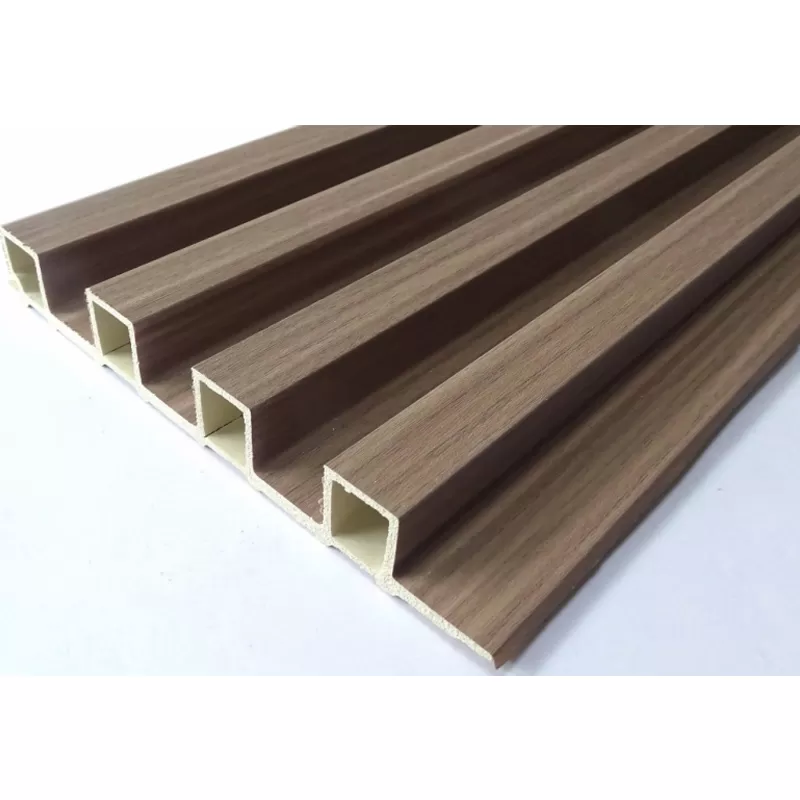

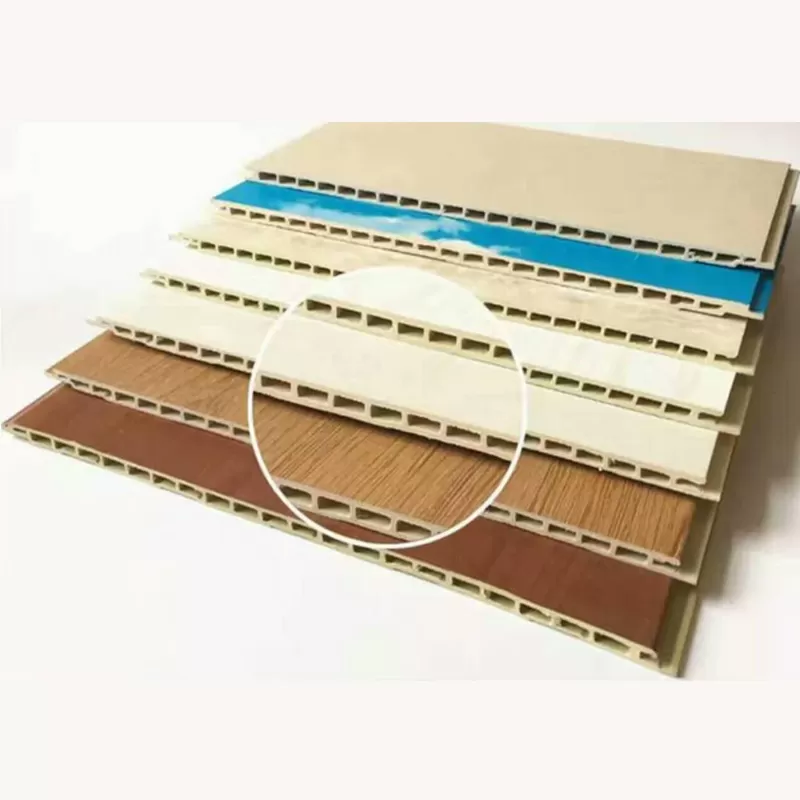

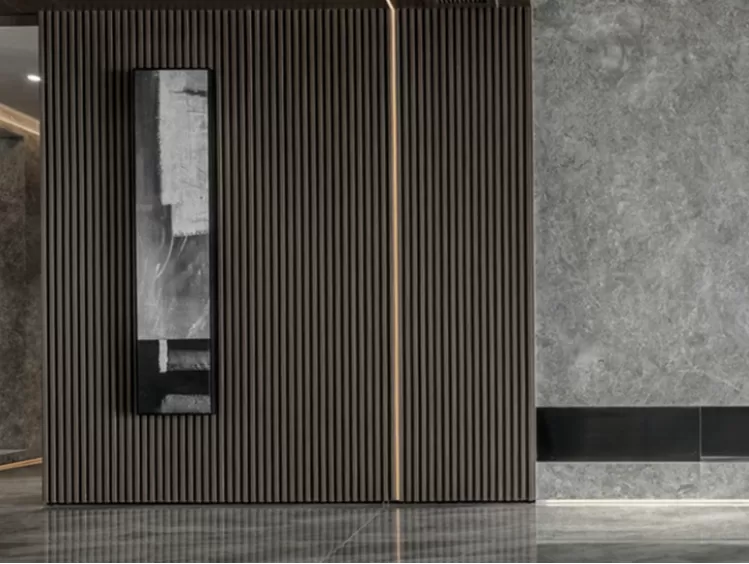

It is mainly used to produce wood-plastic decorative materials,the products are widely used in the home improvement and tooling market.
It can be used in places where high-end wall finishes, suspended ceilings, door covers, window covers, sound absorption and heat preservation are required.
1. Self-fire extinguishing, non-flammable.
2. It is inpenetrable by insects and termites, and won't rot or rust.
3. Resistance to weather/ special chemicals, waterproof/washable.
4. The excellent rigid and superior impacted surface is without any peeling.

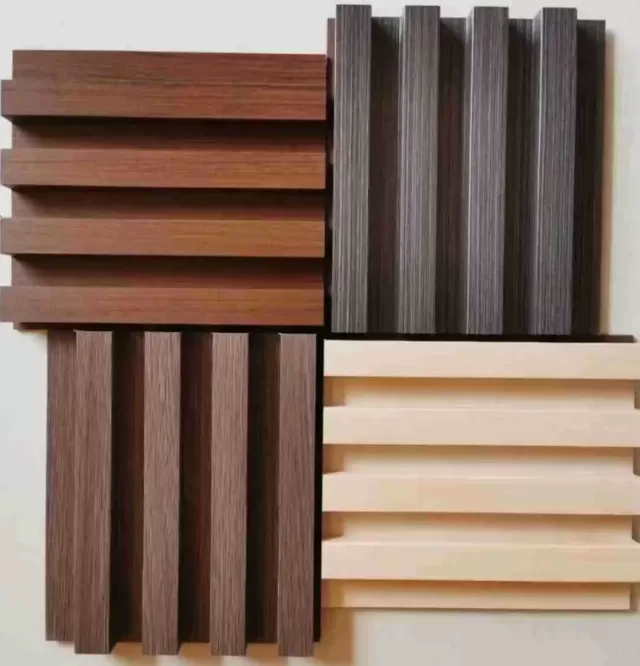

5. Natural wood grain: showing authentic wood srtucture and artistic sense.
6. Easy to be cut, drilled, nailed, sawet, and riveted. DIY is all right.
7. Quick maintenance and no need of painting.
8. The simple and fast installation can save a lot of time and manpower cost.

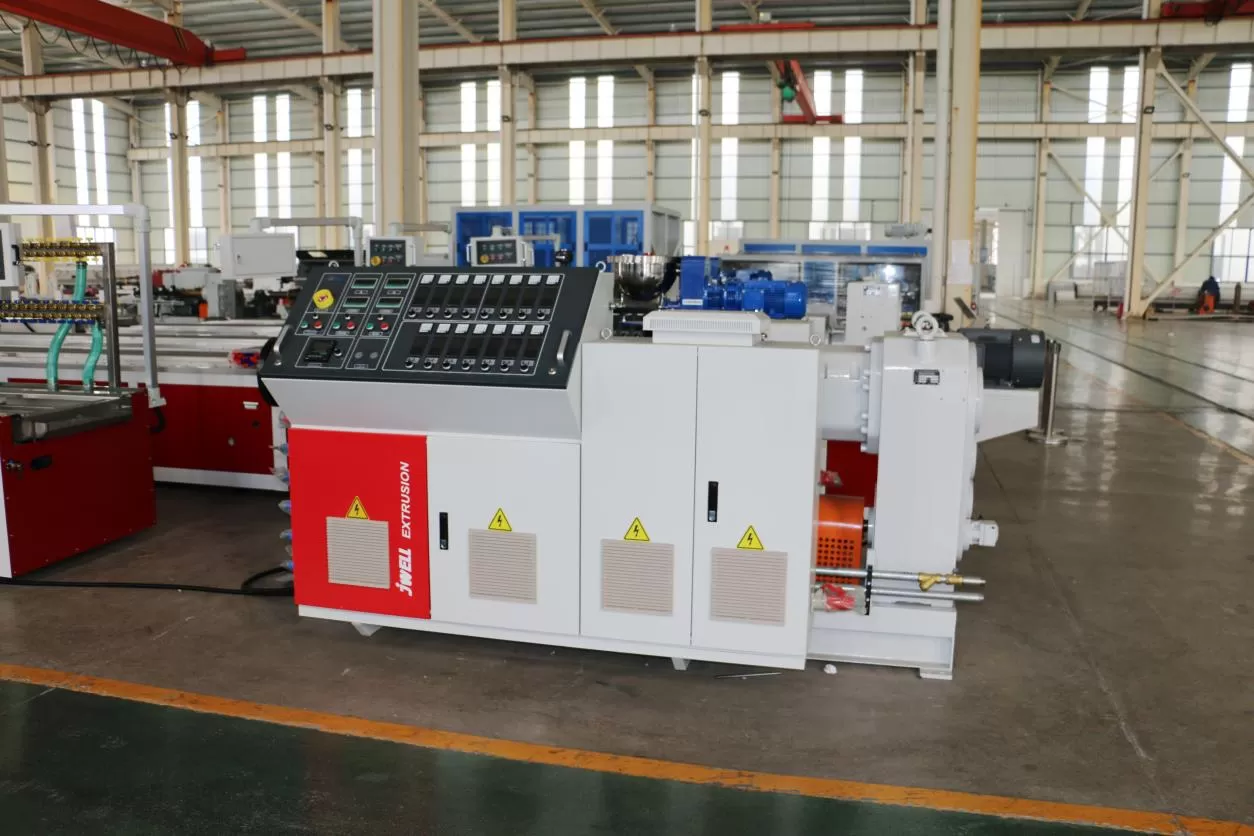

For extruder Temperature Control system, Digital PLC control or Manual Temperature Control Meter Easy Operation, Reliable performance, High Extrusion Efficiency, Easy Maintenance.
High-performance twin screw extruder with famous brand motor, imported inverter.
Famous brand PLC control system allows our PVC wall panel making machines to have easy operation and high automation.
The gearbox adopts an integrated structure, which not only optimizes the structure and weight but also ensures reliable strength.
The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.

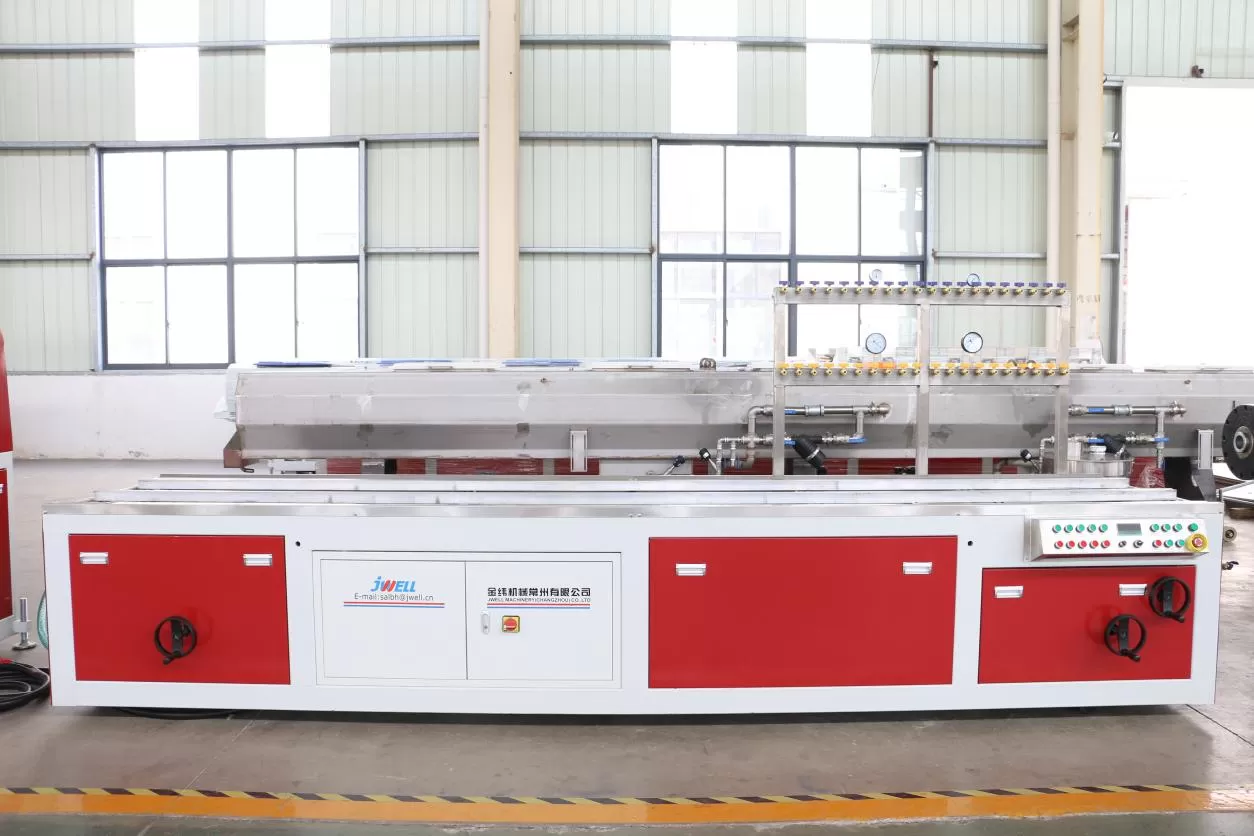

Stainless steel machine frame gives our PVC wall panel extrusion machines a long service life.

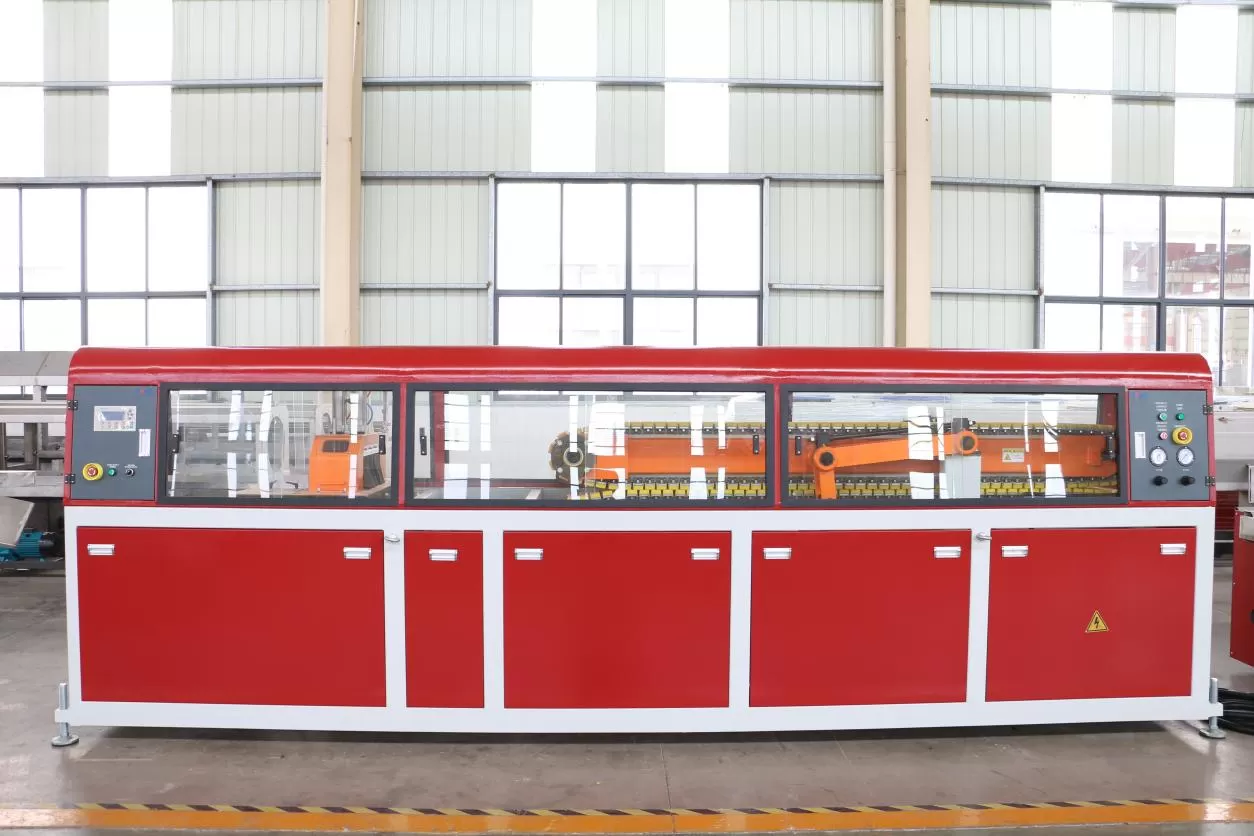

Could be moved by motor or by hand.
Two tractors driven by two motors.
Speed controlled by imported inverter.

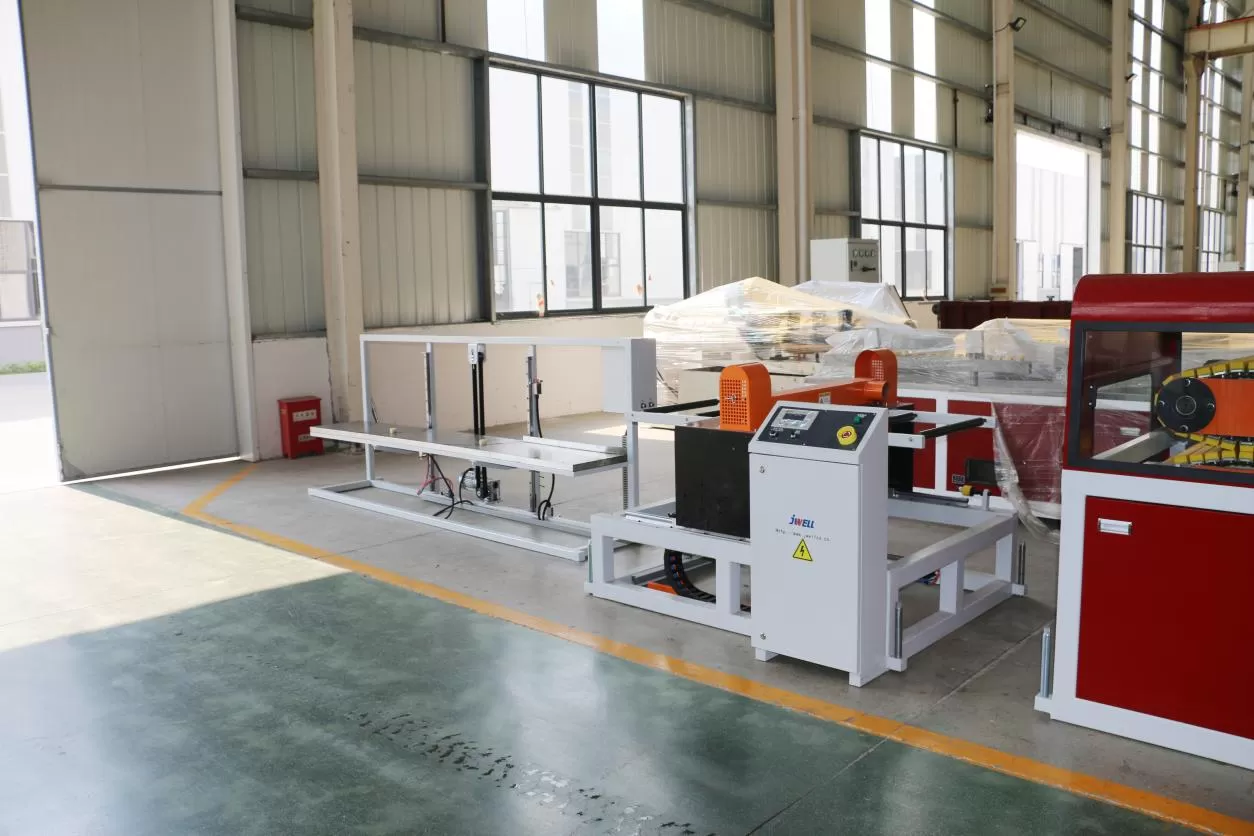

Cutting knife movement and saw working controlled by pneumatic cylinder and PLC program system.
Manual cutting and automatic cutting choice.
Fast cutting, flat section.
Equipped with an independent operation panel.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
