The PVC wide door panel production line produces wood-plastic products that combine wood and plastic advantages, with good processability, acid-alkali resistance, waterproof, anti-corrosion and flame-retardant properties. Adopting imported twin-screw extruders for better mixing, it can produce 600-1200mm wide PVC wood-plastic doors, with high reliability and wear resistance.
Model | YF800 | YF1000 | YF1250 |
Extruder type | SJZ80/156 | SJZ92/188 | SJZ92/188 |
Motor powder(kw) | 55kw | 110kw | 110kw |
Output capacity(kg/h) | 450kg/h | 750kg/h | 750kg/h |
Max width(mm) | 800 | 1000 | 1250 |

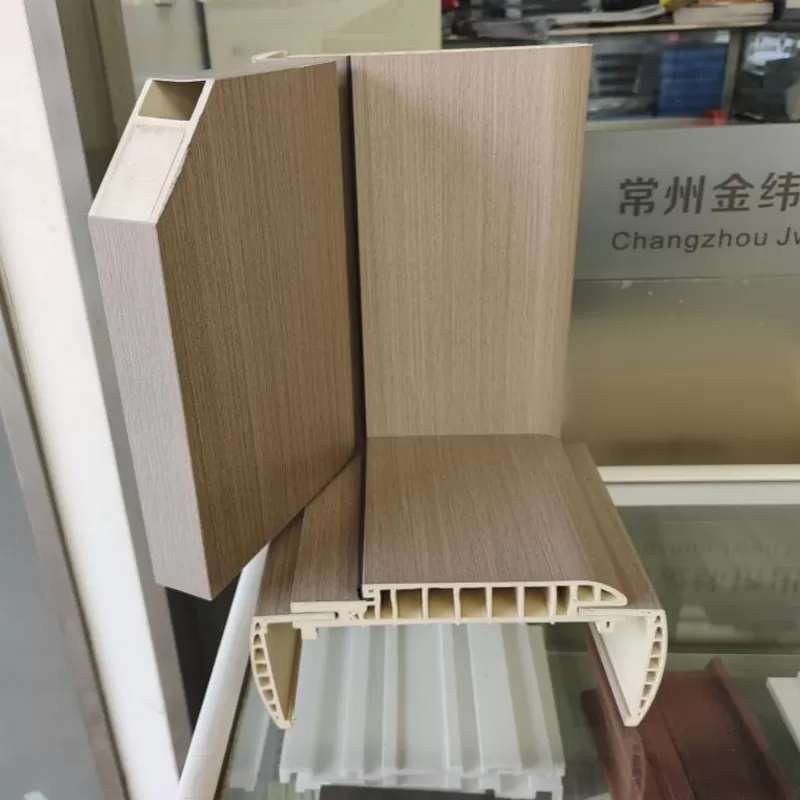

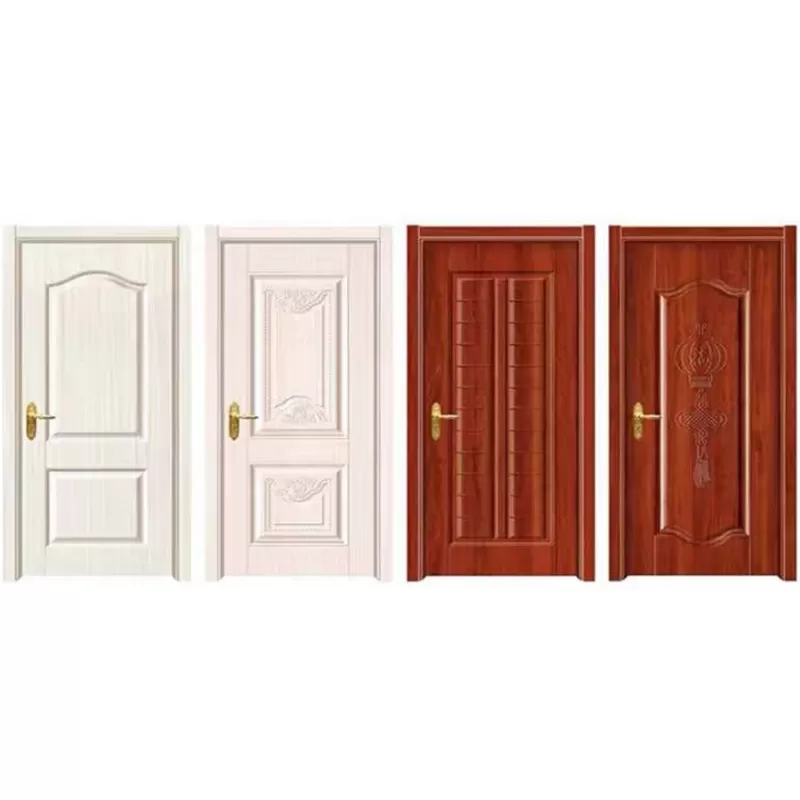

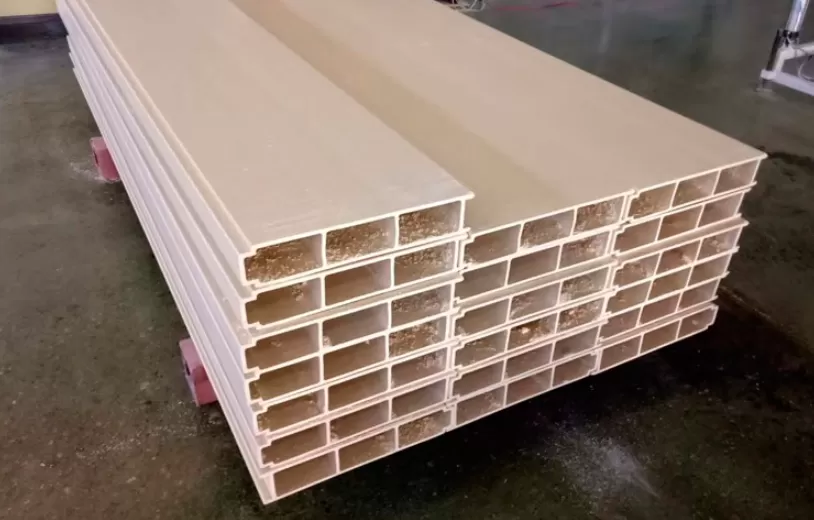

PVC WPC door panels have wide application in house building decorative material, such as door panel, wide hollow board, partition board to divide room space, having many advantages like moisture proof, corrosion-proof, high temperature resistant, easy to clean, light, heat preservation, sound insulation, simple installation, simple manufacturing process and diverse styles.
1. Wood-plastic door panels have the same processing performance as logs, can be nailed, drilled, cut, bonded, fixed with nails or bolts, smooth and delicate surface, no sanding, its film adhesion is good, can also be peritoneal according to personal preferences.
2. With fire, waterproof, corrosion, moisture resistance, not eaten by insects, effectively eliminate insects, prolong service life, acid and alkali resistance, harmless, pollution-free and other excellent performance, low maintenance costs.
3. The use of similar wood appearance, higher hardness than plastic, long life, thermoplastic molding, high strength, energy saving.
4. Strong quality, light weight, heat preservation, smooth surface, no formaldehyde and other harmful substances, harmless, pollution-free.
5. Colorful, there are many colors to choose from. It has a natural wood feel and wood texture, and can customize the color you need according to your personality
6 Strong plasticity, can be very simple to achieve personalized modeling, fully reflect the personality style.
7. Reasonable structure, high strength fast installation structure, time-saving installation, product serialization, rich style, strong compatibility
8. Good thermal insulation and sound insulation performance
The products produced by the PVC wide door panel production line concentrate the advantages of wood and plastic, not only have the best appearance effect and overcome the shortcomings of natural wood, with good processing properties similar to wood, can be sawed, nailed, planed, and can be completed using woodworking tools. Wood plastic materials and products, can resist strong acid and alkali, water resistance, corrosion resistance, not easy to be eaten by insects, and has the characteristics of anti-aging, anti-static, flame retardant.
The origin of plastic wood in Japan, Europe and the United States is very early. The WPC twin-screw extruder has a better dispersion mixing effect than the single-screw extruder, and greatly reduces the friction of the equipment.

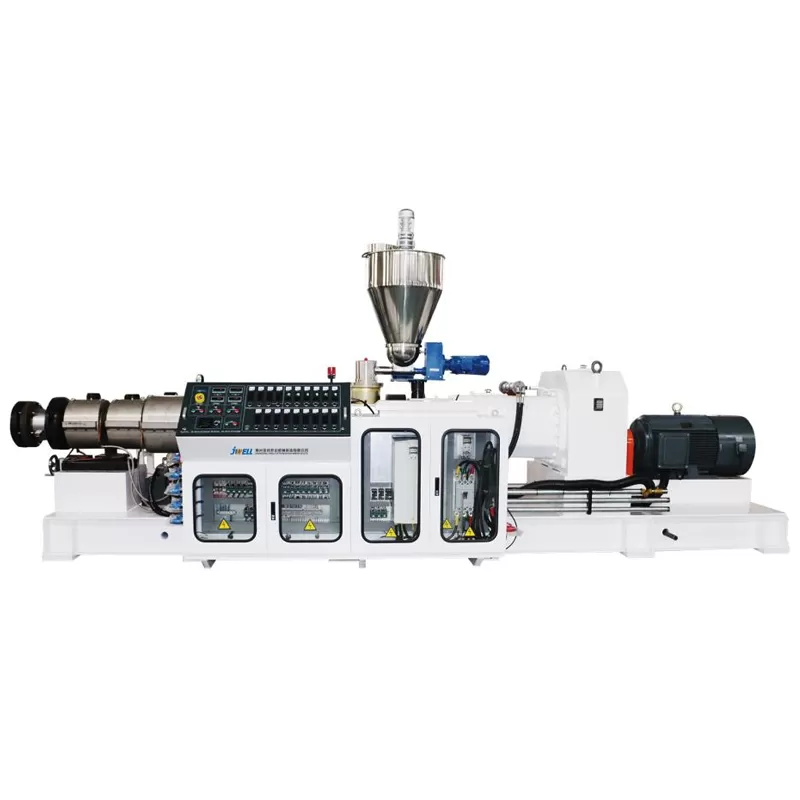

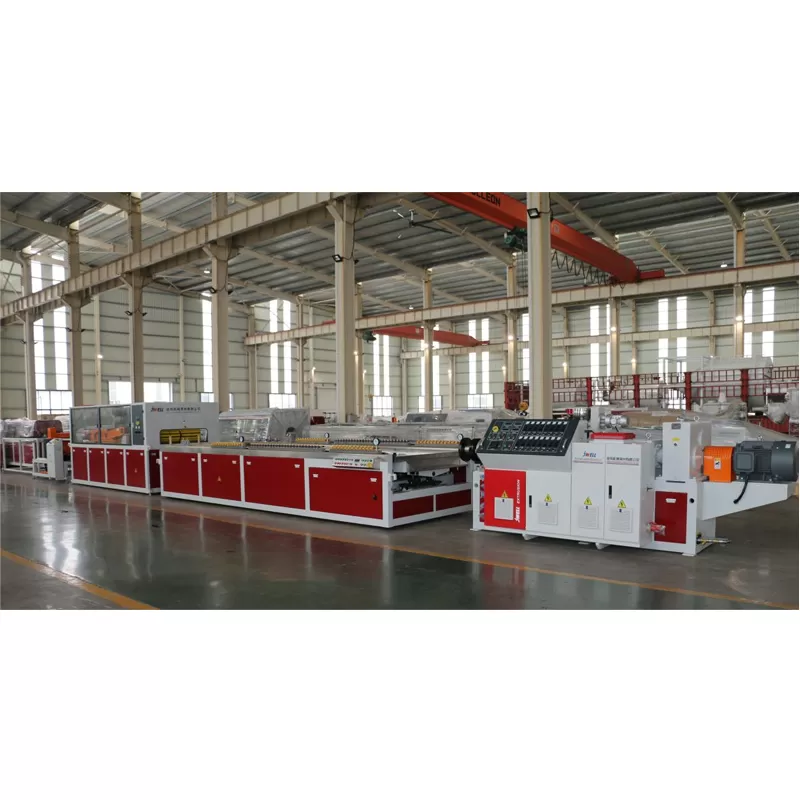

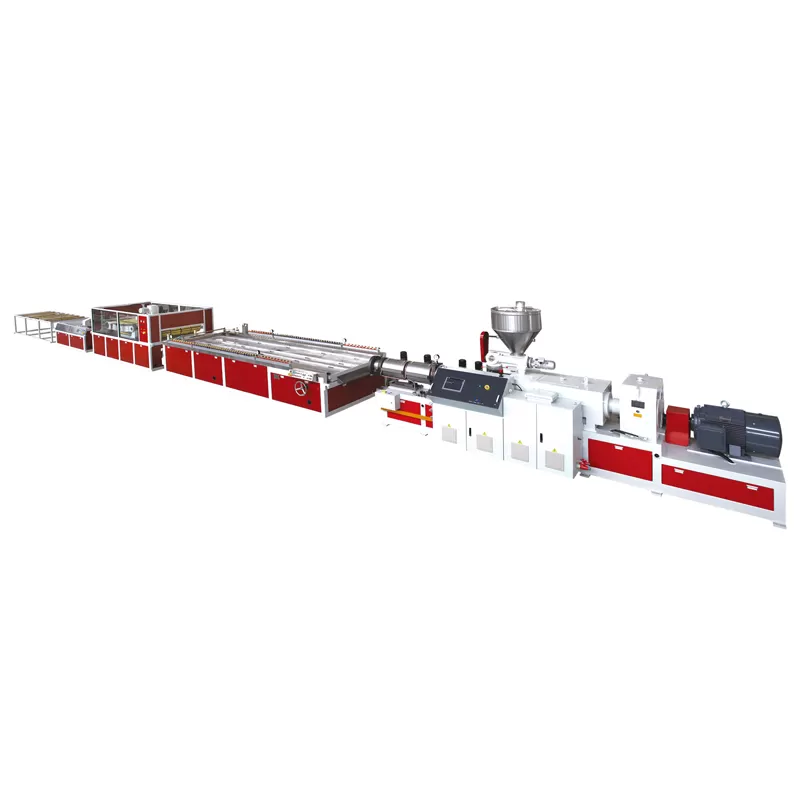

The production line can produce the PVC wood-plastic door of the width between 600 and 1200. The device has SJZ92/188 conical twin screw extruder, calibration, hall-off unit, cutter, such asstacker, targeting the advanced equipment, well-produced, the main electrical control devices are well-known global brands, extrusion system design imbibes the technic of for- eign country in this line, and it has a highly dependability and wearness. The other scheme have two types: it's supply for the custom to choose: YF1000 and YF1250.

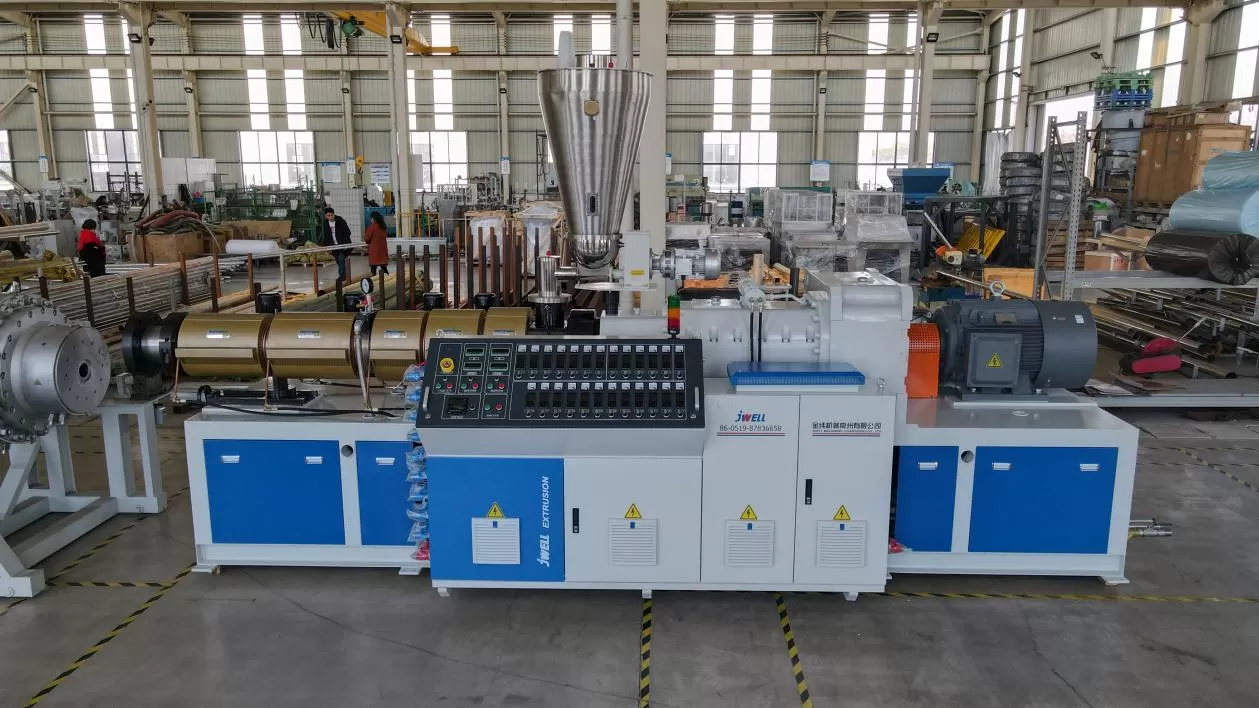

Screw material: alloy steel of high quality 38CrMoAlA, nitrogen treatment, with the thickness: 0.5~0.7mm, the surface hardness: HV740~940.
Adopt high quality components to ensure high performance of extrusion
Gearbox material: 20CrMoTi, teeth hardening, precision gear grind treatment
The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.

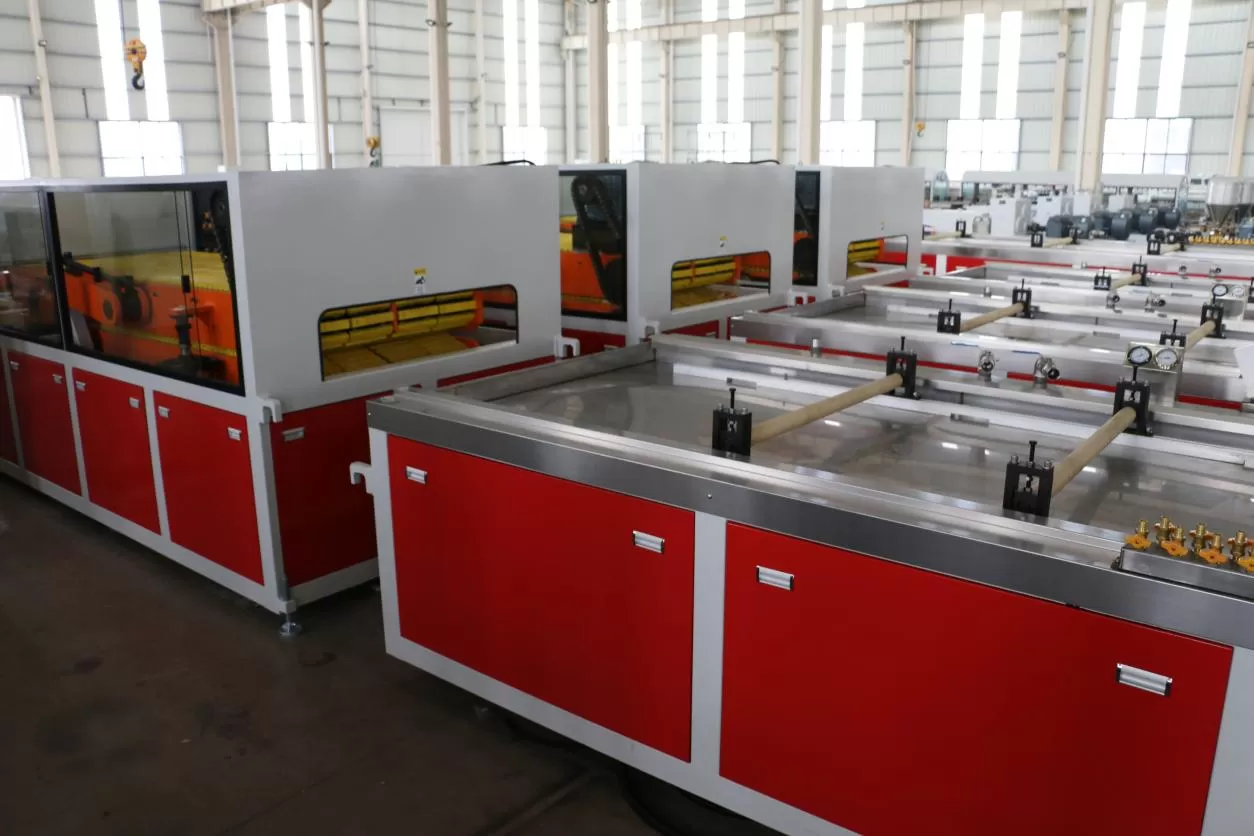

Equipped with strong power cooling device, good quality calibration molds and high pressure vacuum control system
Calibration table and basin are made of stainless steel
Could be moved by motor or by hand

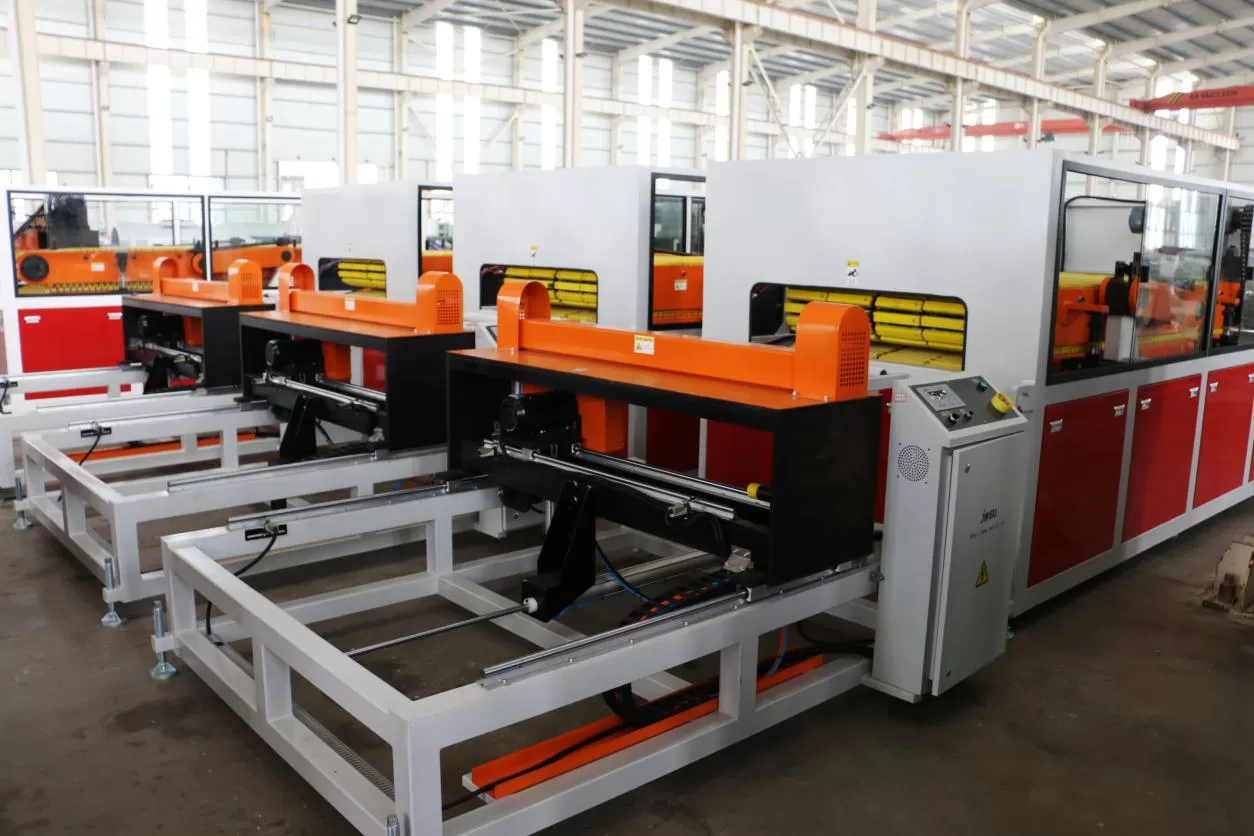

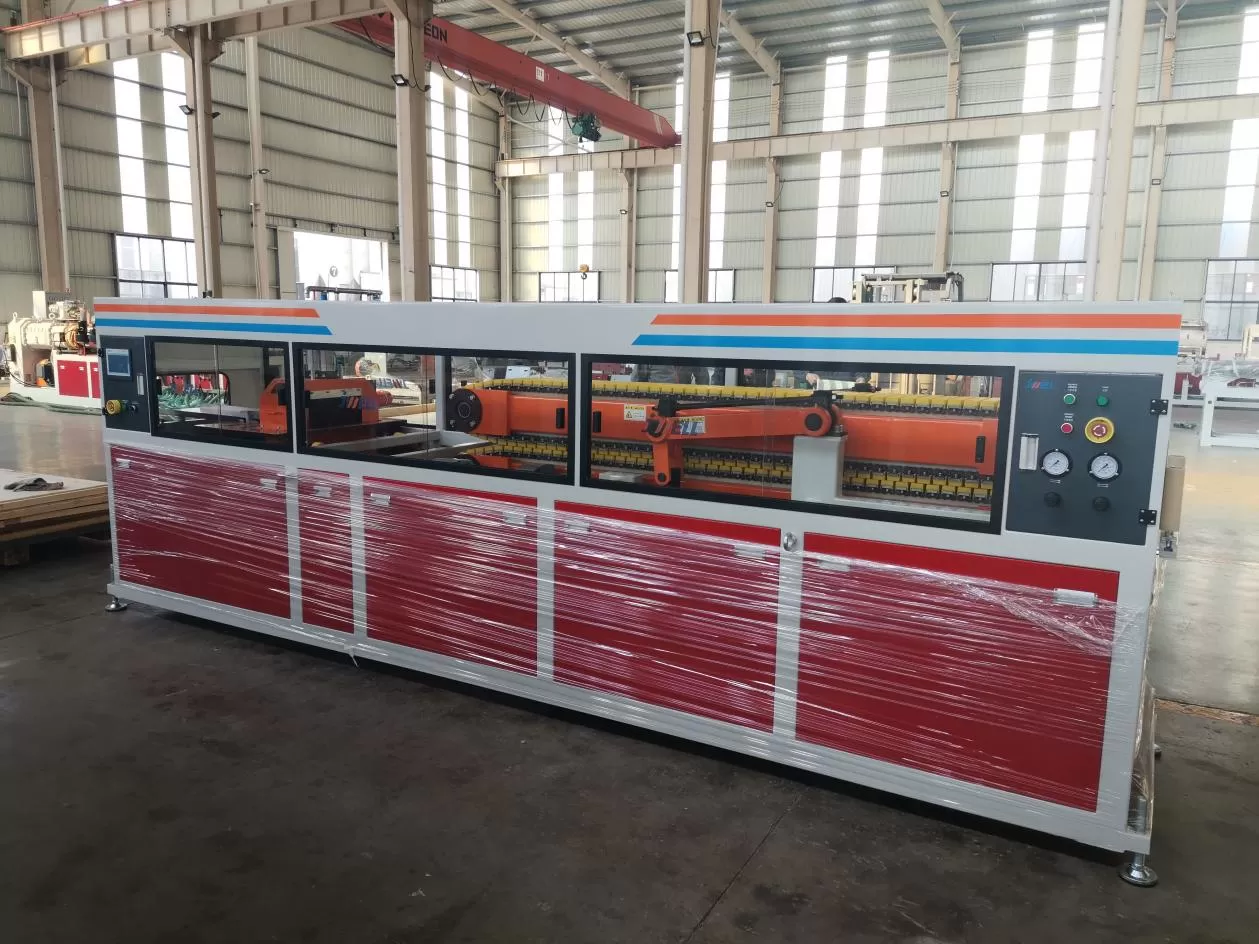

Two caterpillars driven by two reduction motors
Speed controlled by imported inverter
Independent operation panel, easily adjust the haul off machine
Accurate and fast cutting with dust collector
Circular saw-blade: Alloy steel, specially design for cutting PVC profiles
Manual cutting and automatic cutting choice
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
