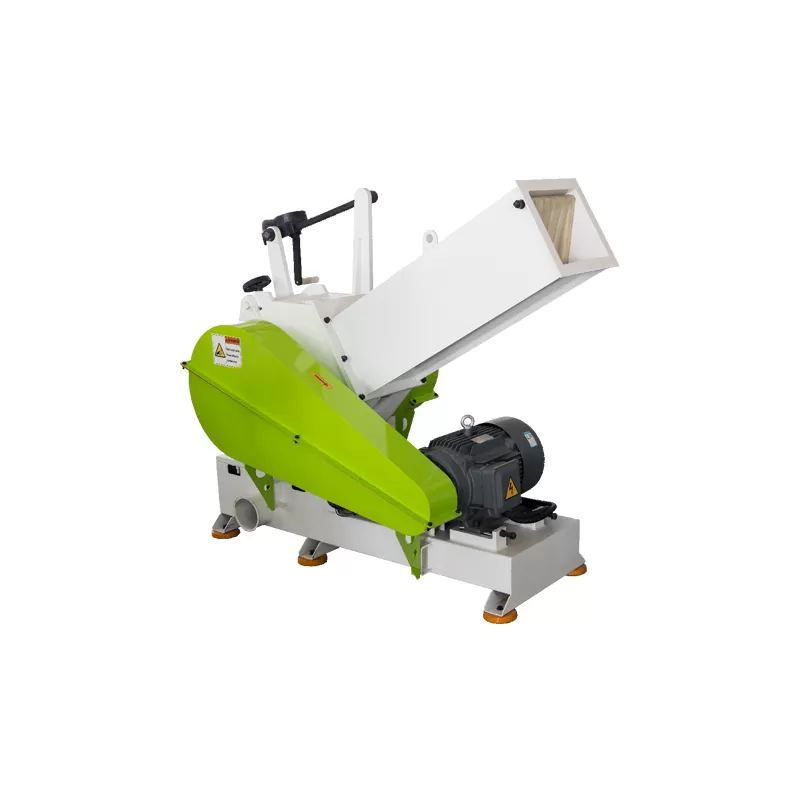

Different from traditional crushers, Dyun's specially designed DYPS-X materials of larger volume and quantity. The feeding hopper is almost parallel to the ground, making the feeding of long materials extremely simple and convenient. Because the rotor of the machine can automatically grasp the material to be broken. Therefore, there is no material clogging.
Model | Feed size(mm) | Main motor power (KW) | Moving knife quantity (pcs) | Rotor effective width (mm) | Out put (kg/h) |
DYPS-X 300 | 200*300 | 11-22 | 5 | 300 | 300 |
DYPS-X 600 | 300*600 | 45-75 | 15 | 600 | 600 |
DYPS-M 400 | 240*400 | 22-37 | 24 | 400 | 350 |
DYPS-M 600 | 300*600 | 55-75 | 36 | 600 | 650 |
DYPS-X/M PVC profile/WPC series special crusher can be used for crushing plastics, profiles and wood-plastic profiles, etc.
Customers can choose different knife roller structures according to their needs for crushing different materials, which can maximize the crushing capacity and quality, and at the same time extend the service life of the equipment.
The crusher box has three opening and closing methods: manual hinge, electric screw, and hydraulic cylinder for customers to choose from.

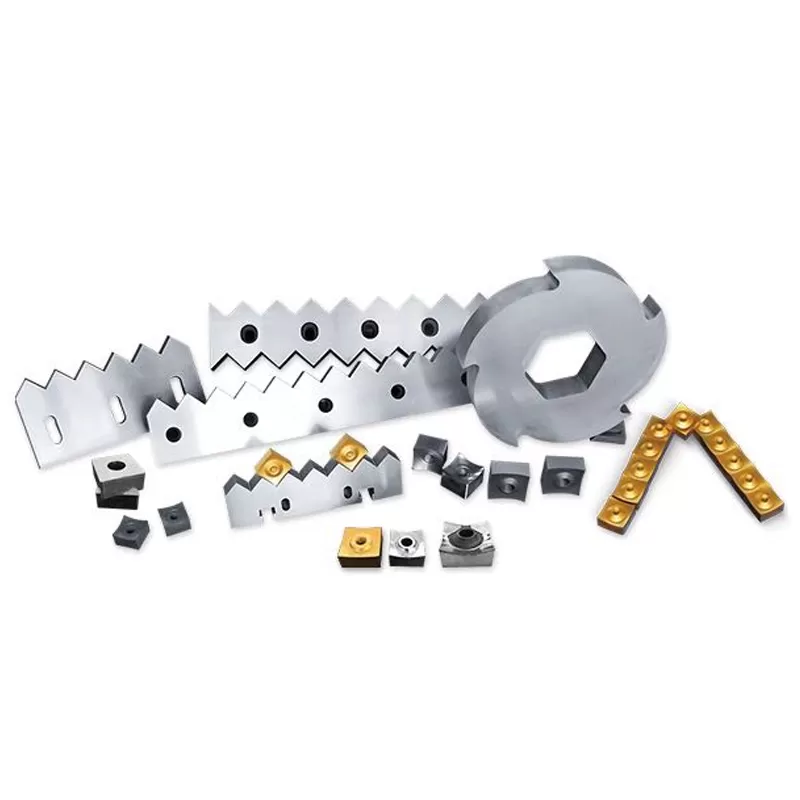

The knife blades are available in a variety of materials and are suitable for a variety of materials for customers to choose : Cr12MoV (D1), Cr12Mo1V (SKD11), Cr12Mo1V1 (D2), DC53
Feeding hopper, cutter and filter can be separated with easy opening and cleaning
The machine adopts high hardness steel template, so it very soild and durable.
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
