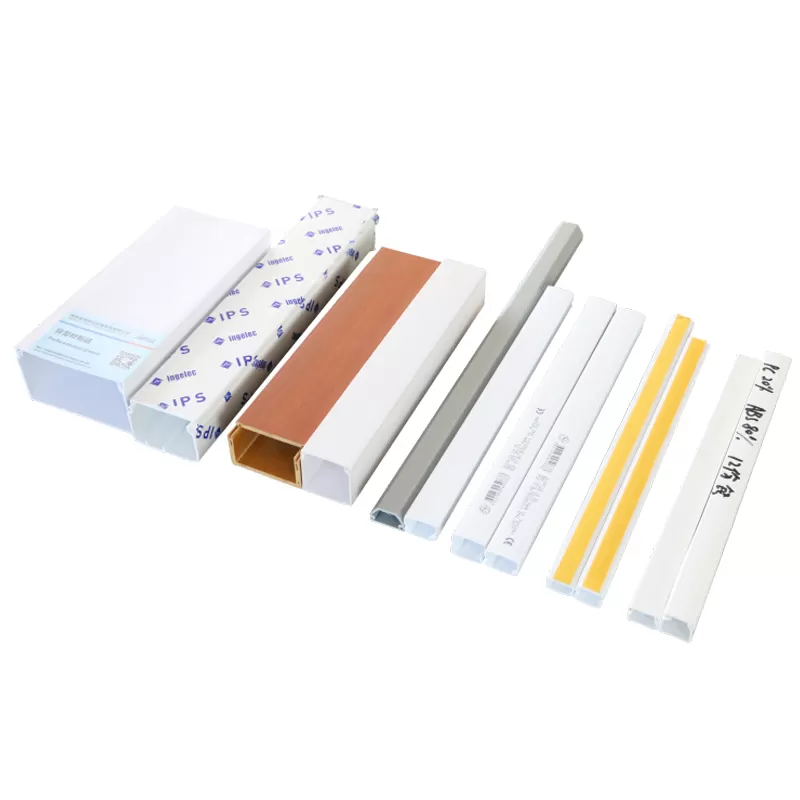

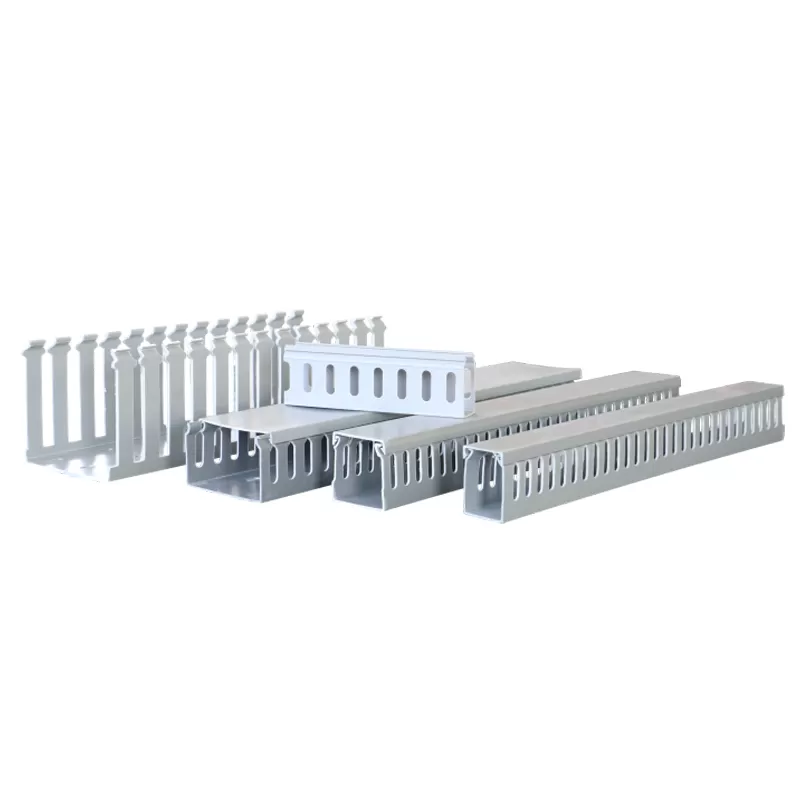

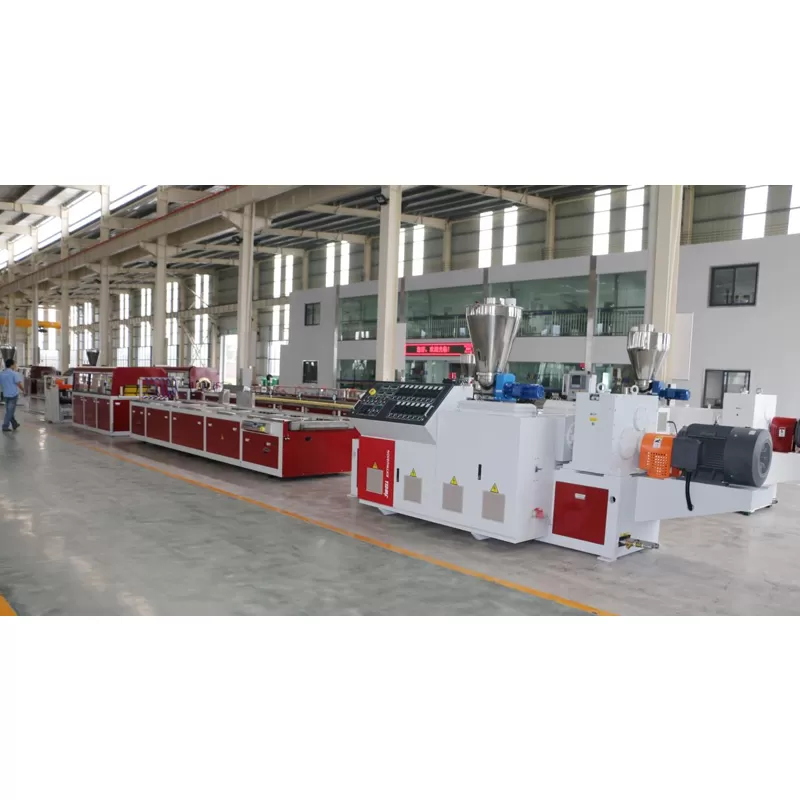

PVC trunking is applied for internal wiring of electrical equipment. Eco-friendly and flame-retardant, it features insulation, arc resistance and self-extinguishing properties. It provides mechanical and electrical protection, enables neat wiring, and facilitates convenient installation, maintenance and wire replacement.
Type | YF108 | YF240 | YF240A | YF300 | YF400 |
Max width(mm) | 108 | 240 | 150*2 | 300 | 400 |
Extruder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
Max capacity(kg/h) | 150 | 250 | 250 | 250 | 450 |
Extruder power(kw) | 22 | 37 | 37 | 37 | 55 |
Cooling water(m3/h) | 7 | 8 | 8 | 8 | 10 |

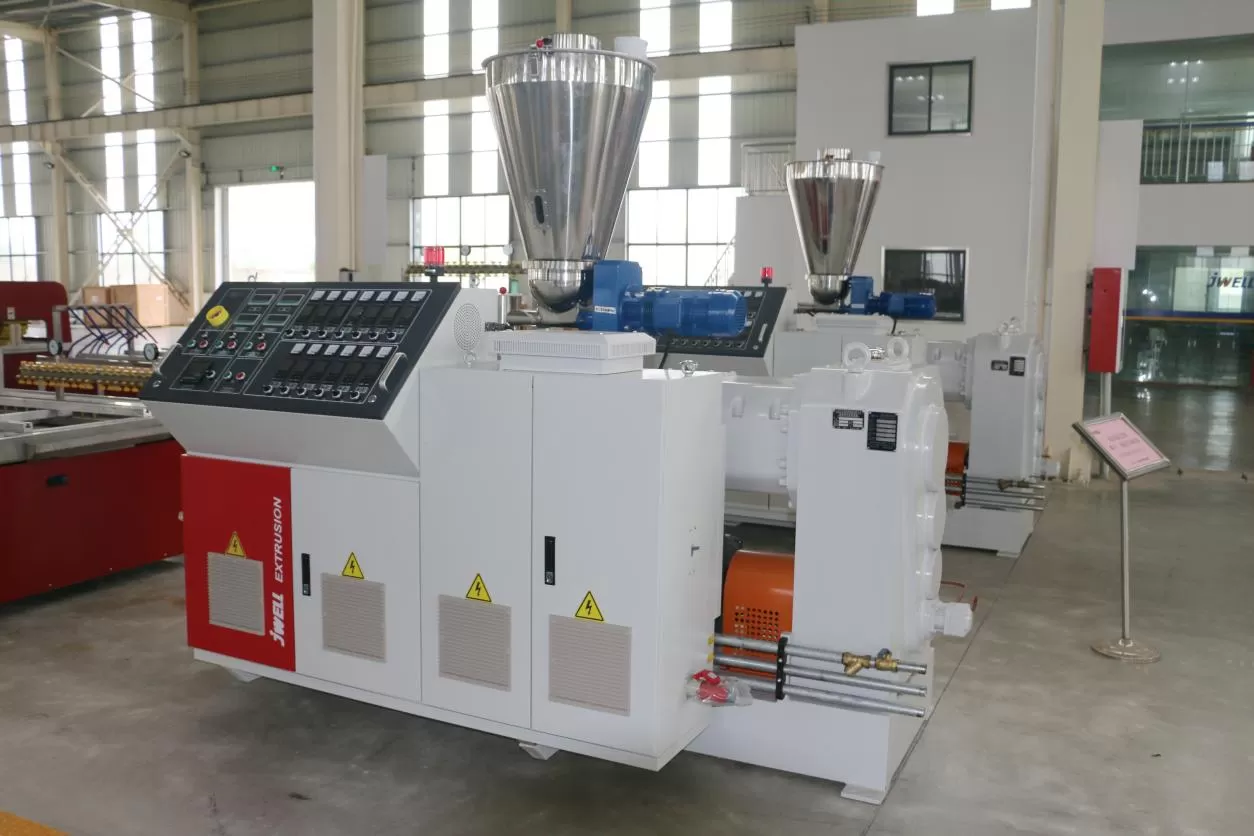

Famous brand main motor, imported inverter and Japanese temperature meters.
The special screw and barrel for PVC trunking production is specially produced based on the special formula of PVC trunking combined with Jwell Company's many years of screw design and manufacturing experience.
High precision gearbox brings high efficiency transmission and lower noise.
The material of the plastic profile extrusion line adopts high hardness steel, which means our extrusion machines are more durable than others.

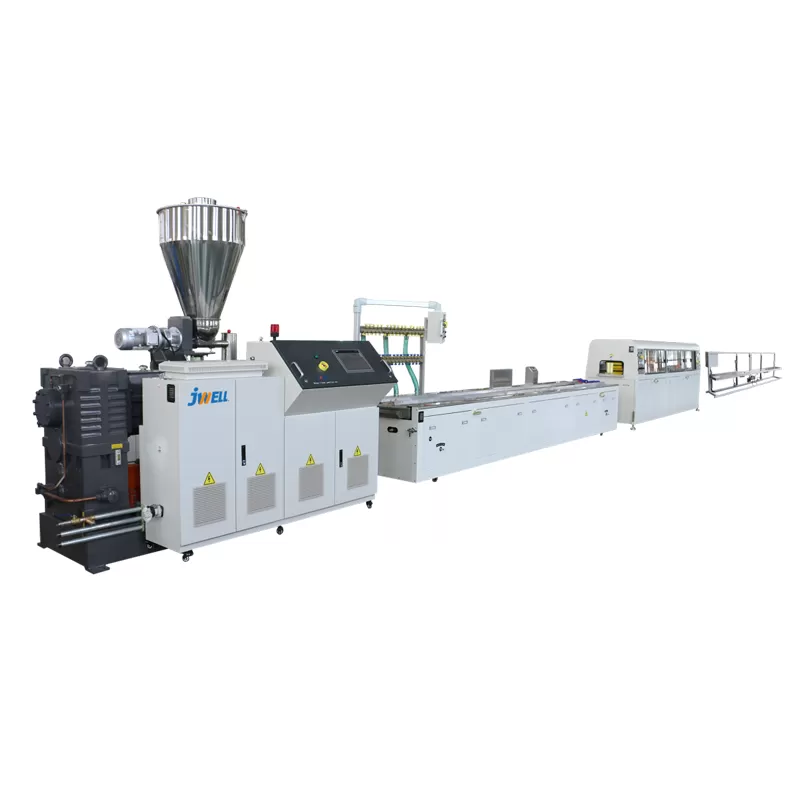

The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.
Two movement methods: motor or by hand.

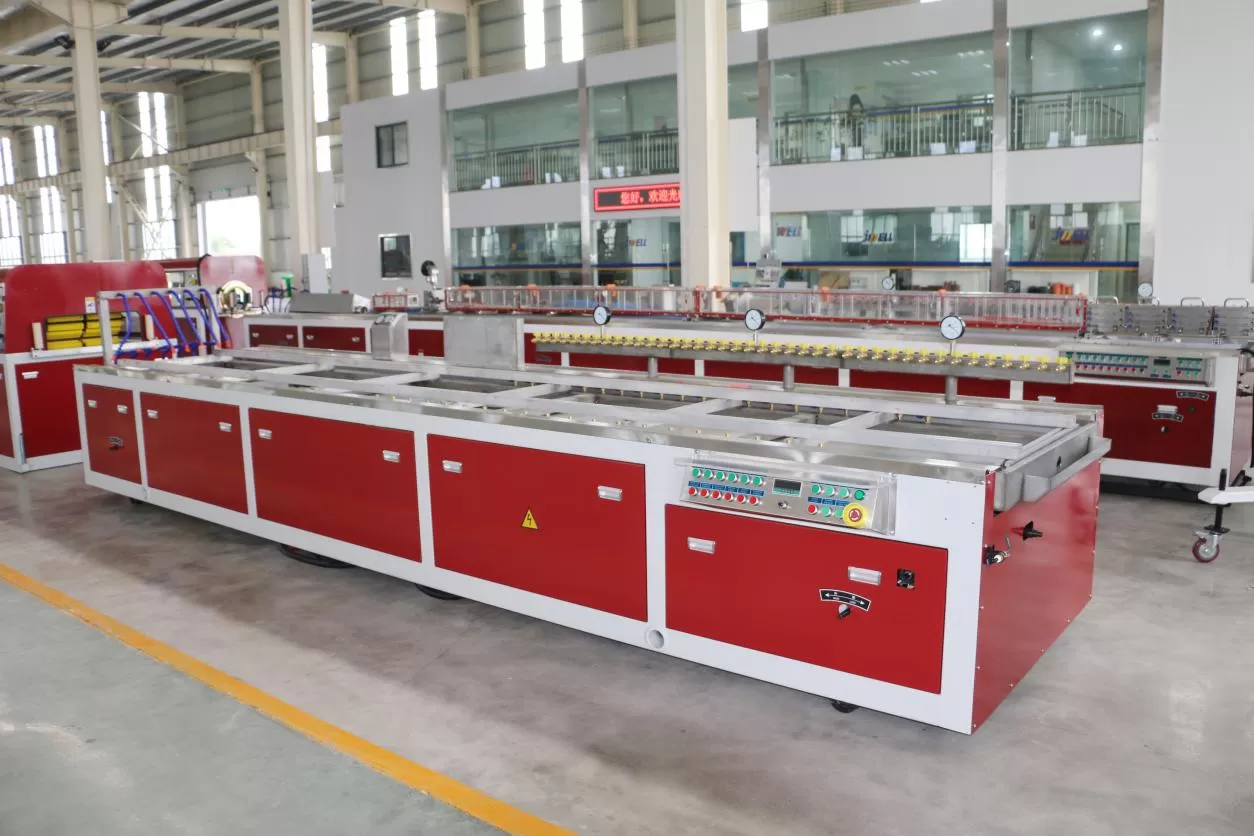

High pressure vacuum system and accurate temperature control devices guarantee good profile shape and high quality.

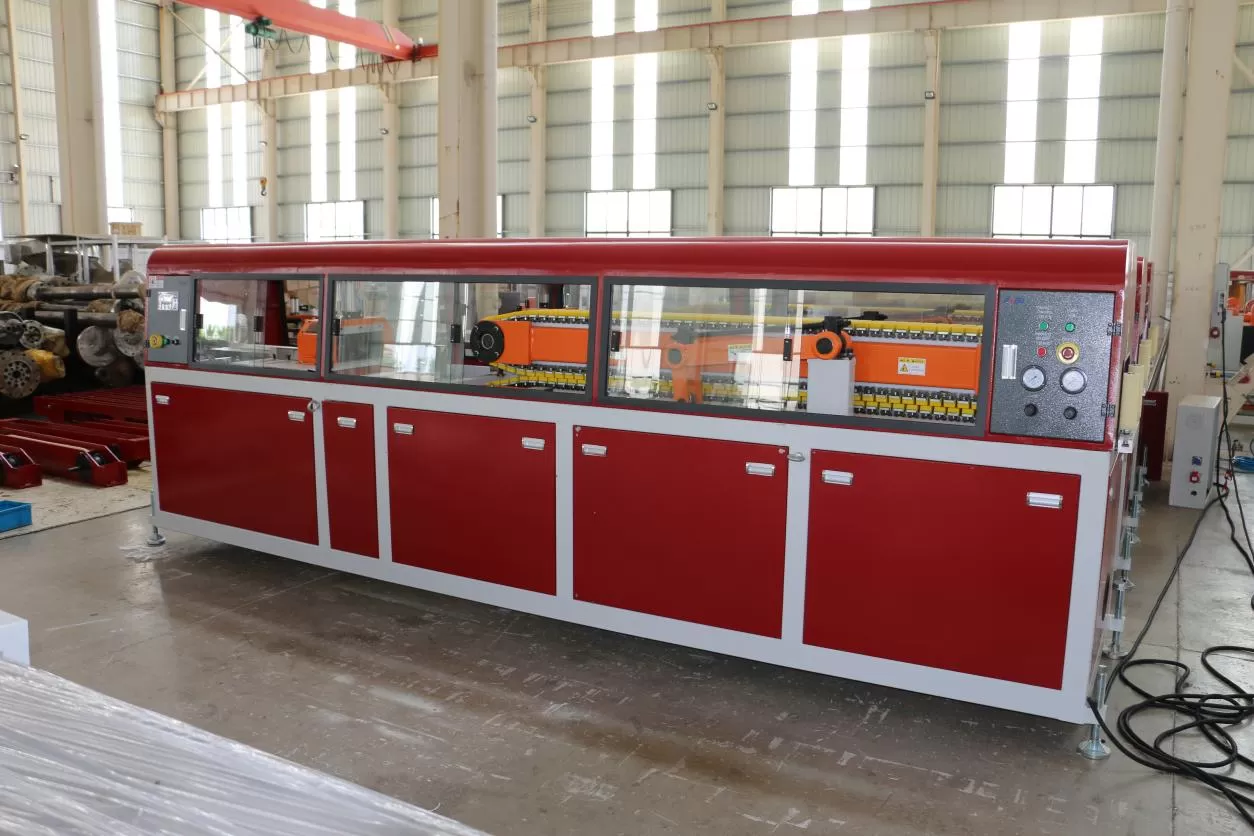

Two tractors driven by two independent motors.
Speed controlled by imported imported inverter.

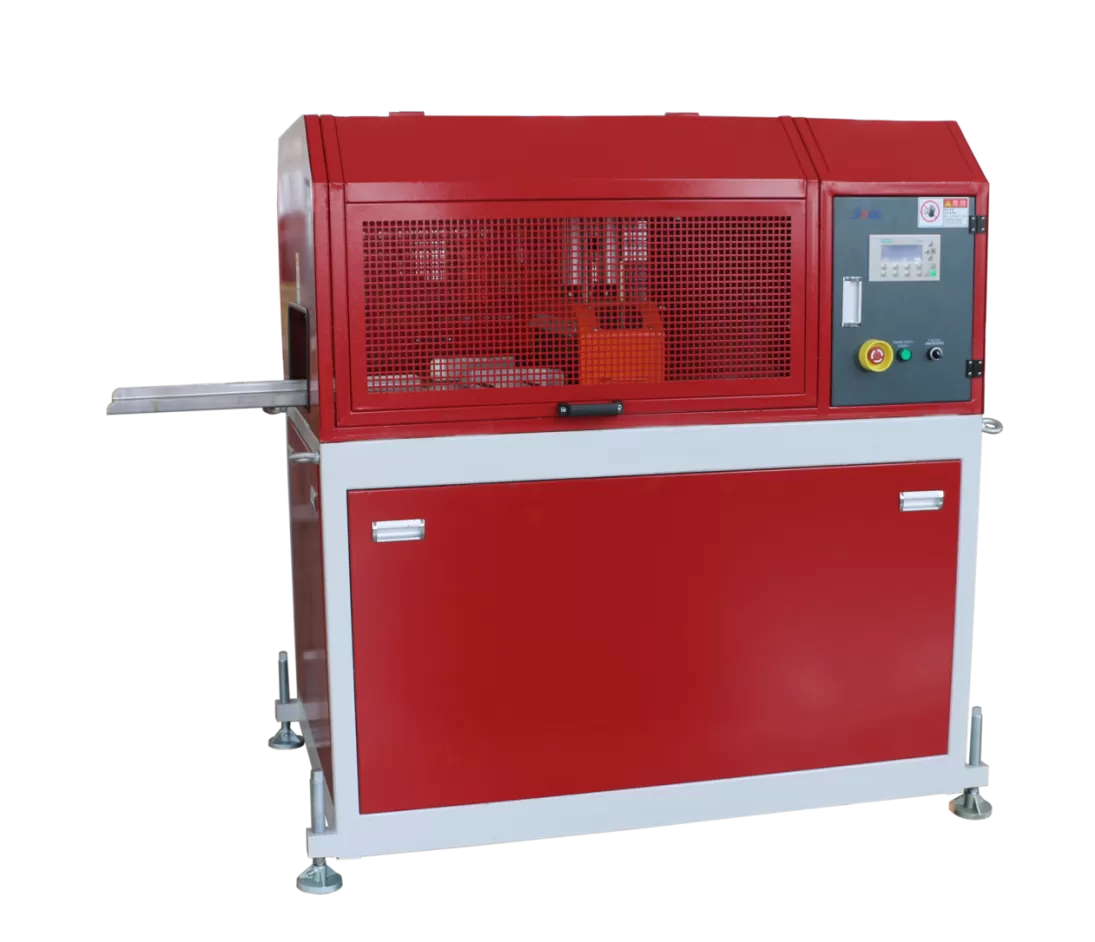

Cutting knife movement controlled by pneumatic cylinder.
PLC system control system ensures accurate cutting.
Manual cutting and automatic cutting choice.
PVC trunk is a kind of trunks, which is mainly used for internal wiring routing of electrical equipment. Now, environmentally friendly & flame retardant PVC trunk is widely used.
1. PVC trunk has the characteristics of insulation, arc protection, flame retardant and self extinguishing etc characteristics.
2. PVC trunk mainly plays important role of mechanical protection and electrical protection.
3. PVC trunk is convenient for wiring, neat wiring routing, reliable installation, and also easy to find, repair and replace wire routing line.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
