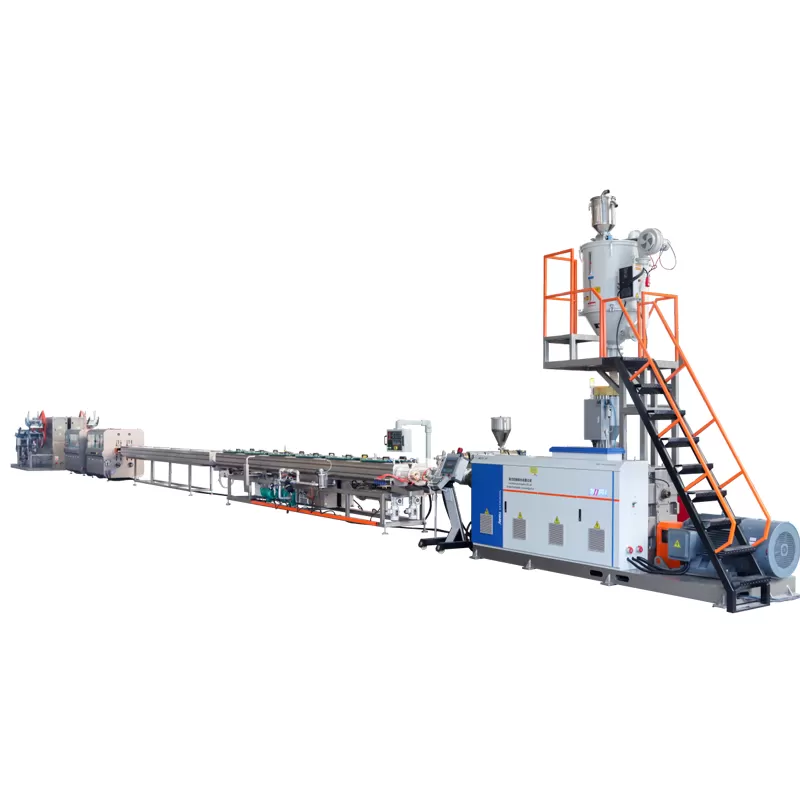

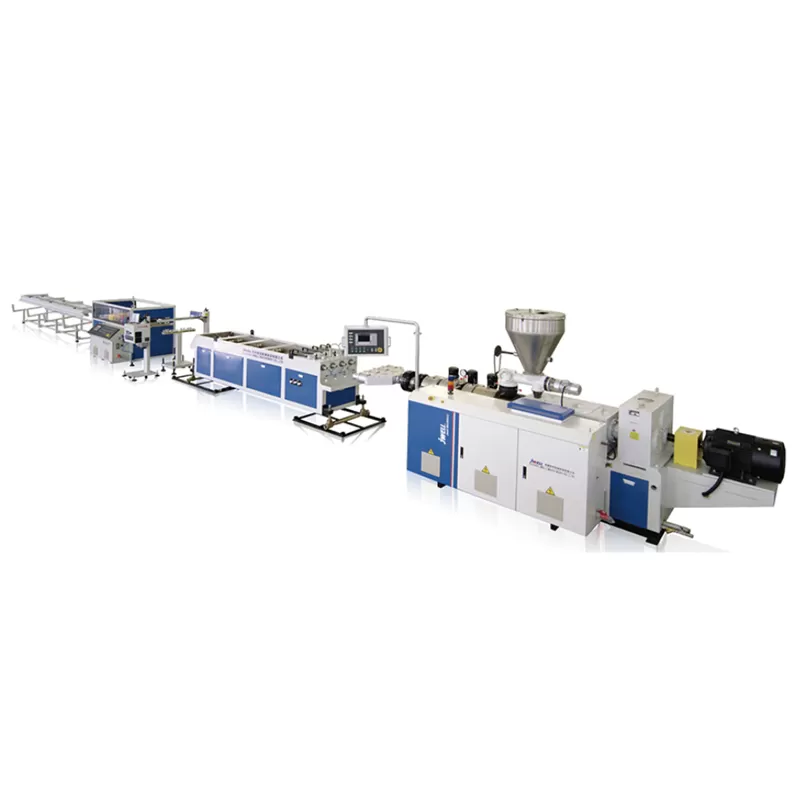

Dual-strand extrusion excels in high-output small-diameter pipe production with independently adjustable pipelines. The four-strand line suits pipes ≤32mm at 25m/min speed. Featuring special screw and die design, it realizes uniform plasticization, low energy consumption, easy operation and effective workshop space saving.
Type | Pipe spec (mm) | Max. output (kg/h) | Total power (kw) |
JWG-PVC32（Four out） | Ø20～Ø32 | 250～300 | 104 |
JWG-PVC63（Two out） | Ø20～Ø63 | 250～300 | 105 |
JWG-PVC110（Two out） | Ø50～Ø110 | 300～400 | 145 |
In the production of small diameter pipe and requirements under the condition of high output, especially shows the advantages of using dual-strand extrusion. The characteristics of our dual-strand downstream equipment is with two sets of independent control circuit, the speed of each pipeline can be adjusted respectively, and can even produce different diameter of the pipe at the same time.
Four strand extrusion line is suitable for the ≦32 mm pipe with high-speed production, unilateral pipe speed up to 25 m/min.
This extrusion line adopts special screw and mould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate, reduce the technical requirements of the operation of operating workers. And effectively save the workshop space.

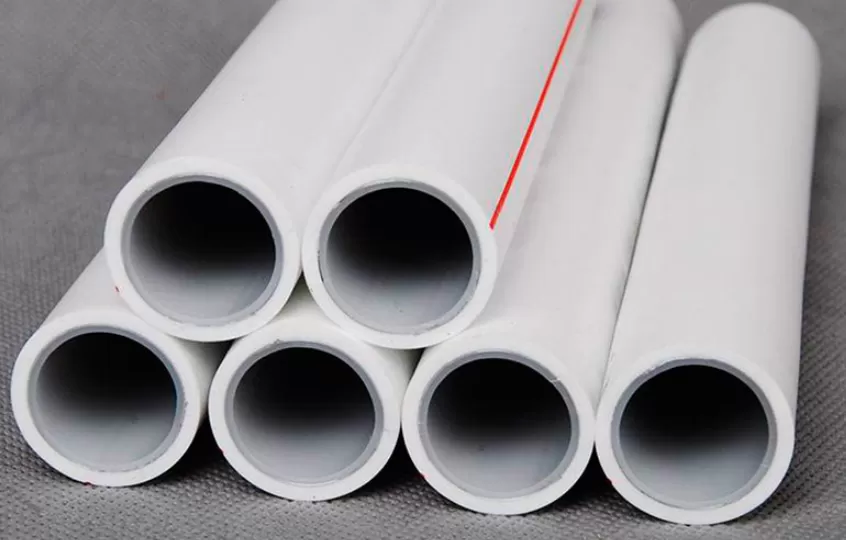

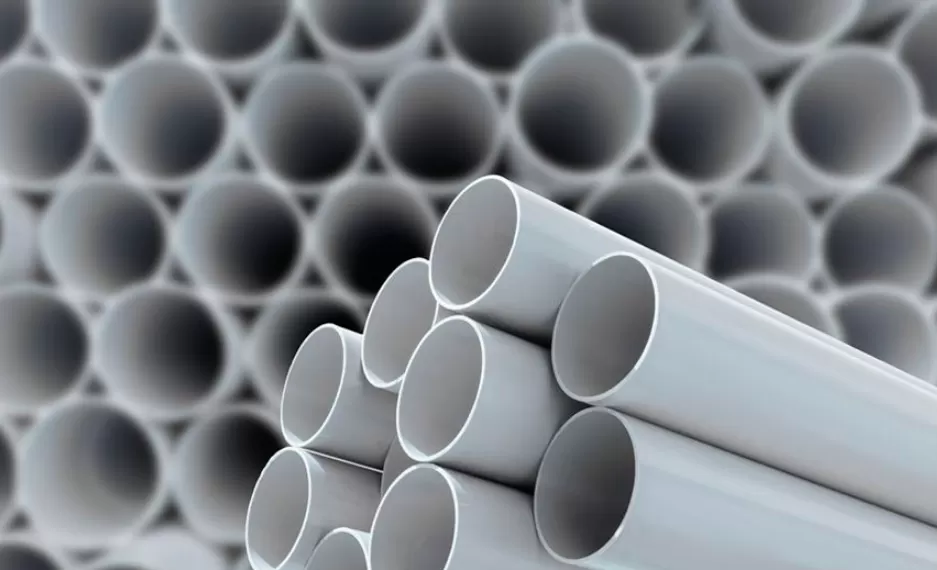

Widely used in agricultural water supply and drainage, construction water supply and drainage, cable laying and other aspects,PVC plastic pipe because of its characteristics, widely used in oil field crude oil gathering and transportation, chemical use of temperature and corrosion resistant pipeline, hot water water supply and drainage pipeline, directly buried high and ultra high voltage power transmission, cable pipe protection and other fields.

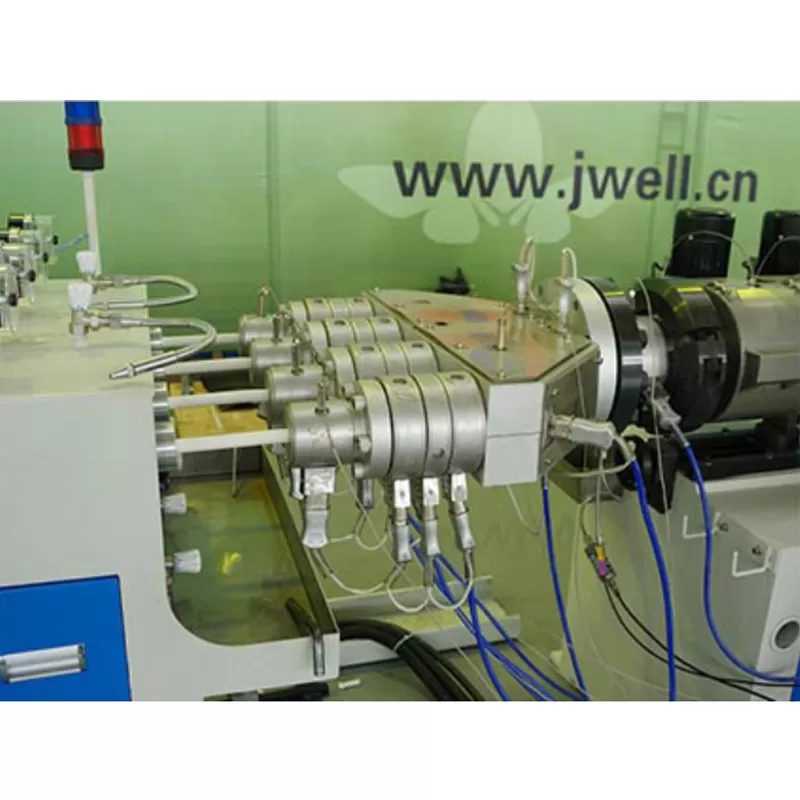

PVC Dual pipe extrusion machine corresponding to the different requirements of pipe diameter and output, there are two types of SJZ80 and SJZ65 special twin-screw extruder optional; the dual pipe die evenly distributes the material output, and the pipe extrusion speed is quickly plasticized;
High-efficiency double-vacuum cooling box can be controlled separately, and the adjustment operation is convenient in the production process;

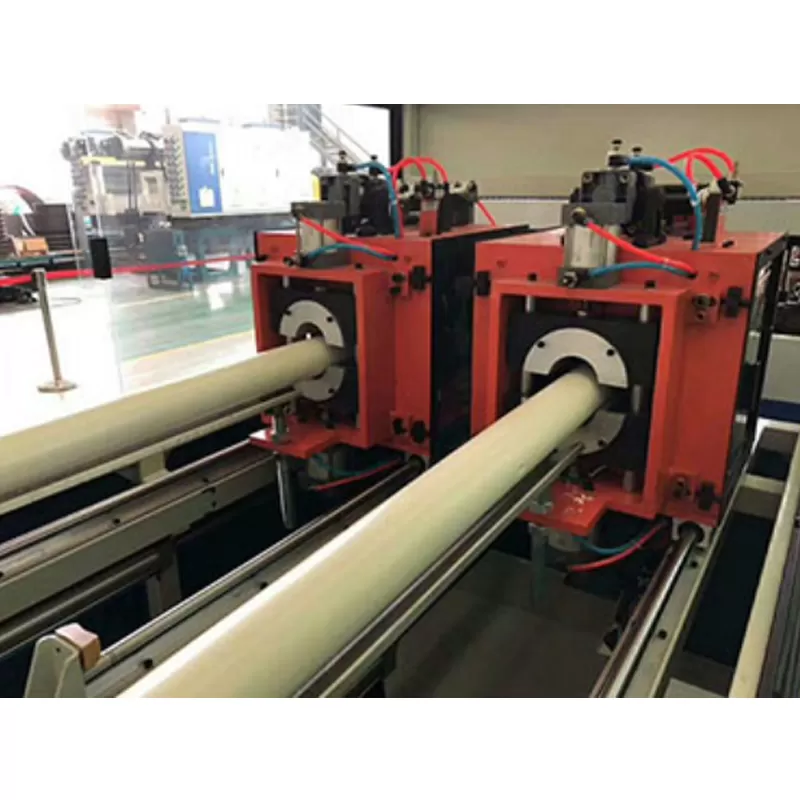

Dustless cutting machine, double station independent control, fast speed, accurate cutting length. Pneumatically rotating clamps eliminates the need to change clamps. With chamfering device optional.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
