This production line offers high customizability for sheet thickness and layer structure. It features fully automated control to cut labor costs. The optimized die ensures uniform melt distribution. A vacuum calibration system improves flatness and prevents warping. Inline dual-sided UV coating extends service life beyond 10 years. Servo cutting delivers precision within ±1mm with clean edges.
Model | Product width | Products thickness | Designed capacity |
JWS120 | 1200-2100mm | 2-8mm | 350kg/h |
JWS150 | 1200-2600mm | 2-8mm | 500kg/h |
JWS100+JWS45 | 1050mm | 30mm | 100kg/h |
JWS150+JWS80 | 2000mm | 12-16mm | 600kg/h |

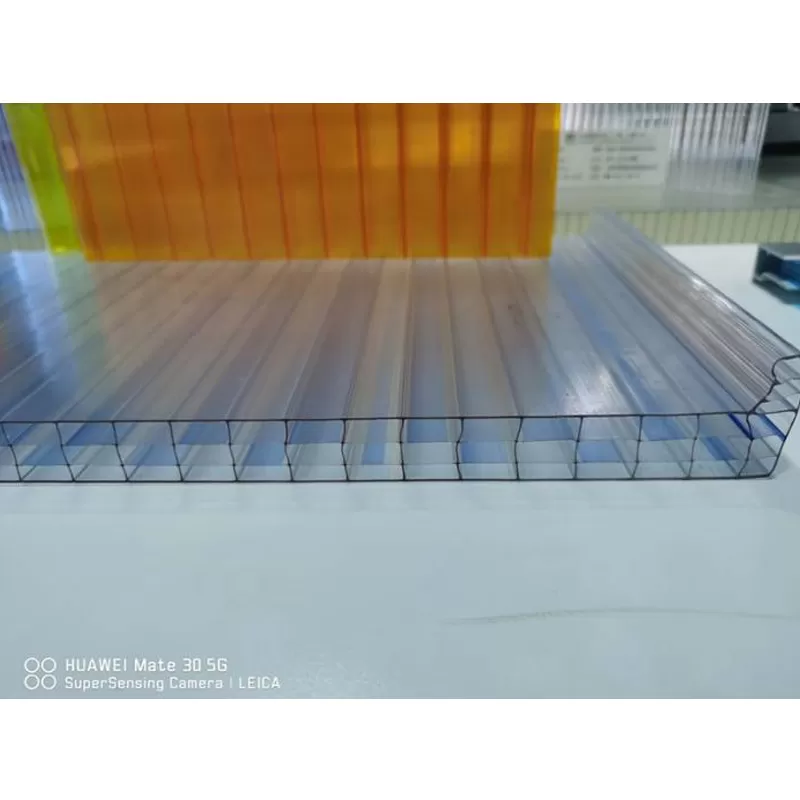

High Customizability: Sheet thickness (typically ranging from 3mm to 30mm) and layer structure (double-layer, triple-layer, four-layer, or X-structure) can be adjusted according to specific requirements.

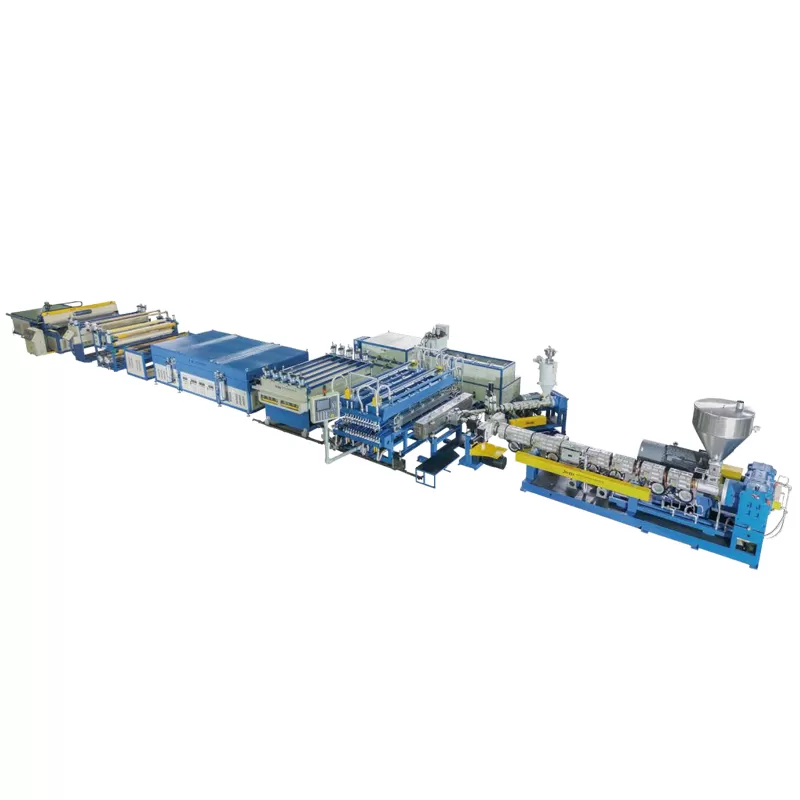

High Automation: Features an integrated automated control system that enables fully automated operations—from feeding, extrusion, and shaping to cutting—thereby significantly reducing labor costs.

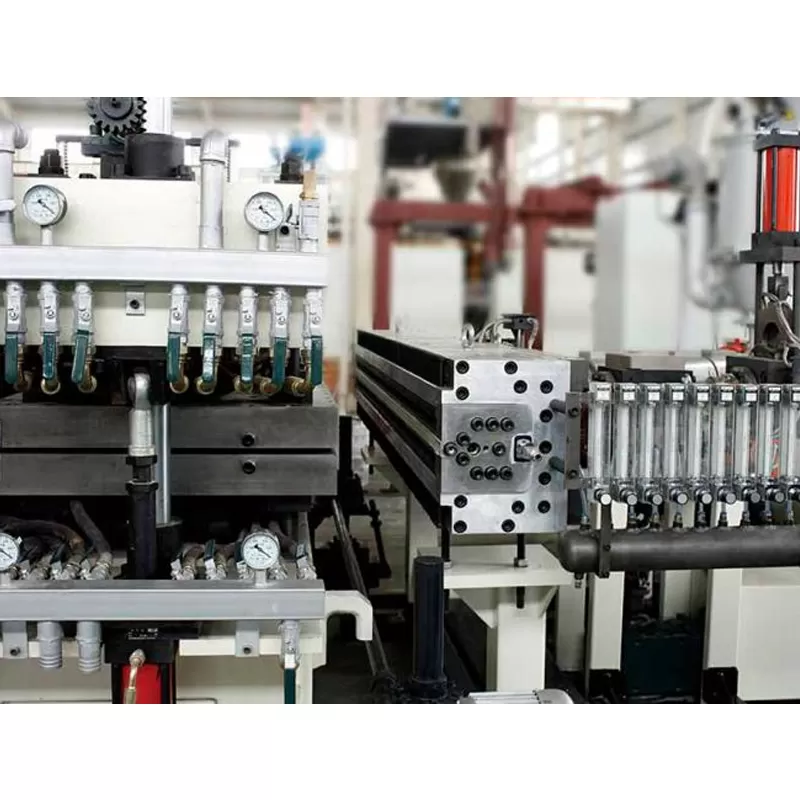

Optimized Die Design: Leading-edge equipment utilizes a specialized flow channel structure to ensure uniform melt distribution even at high flow rates, effectively mitigating issues related to uneven product wall thickness.

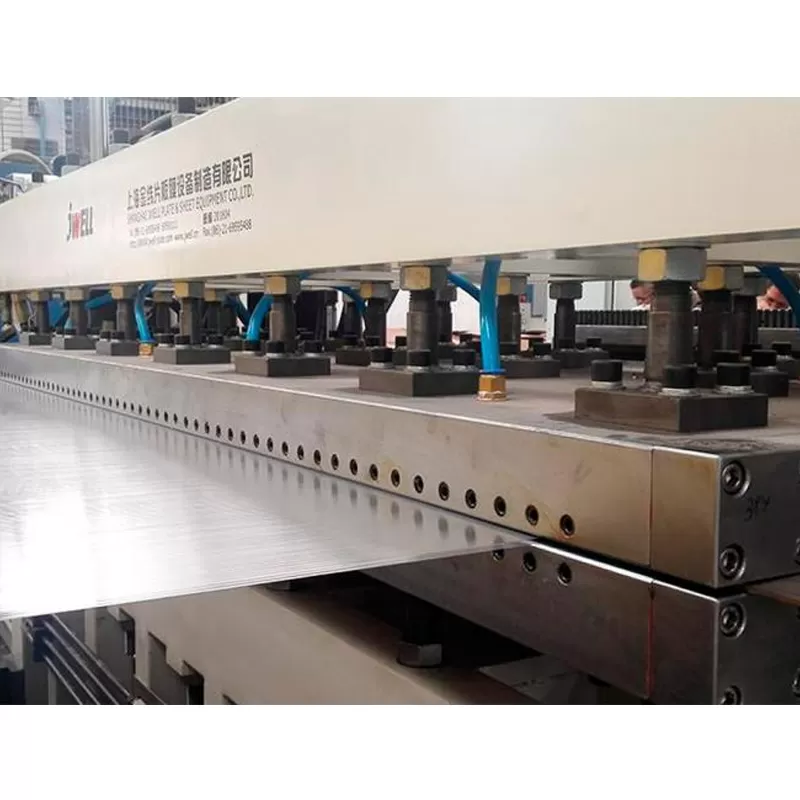

Vacuum Calibration Table: Employs a high-precision, independently controlled vacuum system and a circulating cooling system to accelerate sheet formation and enhance flatness, thereby resolving the industry-wide challenge of warping in wide-format sheets.
Inline UV Coating: Compared to standard production lines, high-end lines integrate dual-sided UV co-extrusion technology, ensuring a uniform anti-UV layer with strong adhesion that extends the sheet's service life to over 10 years.
Cutting Precision: Utilizes a servo-synchronized cutting system to produce clean, burr-free cuts, with length tolerances controlled within ±1mm.

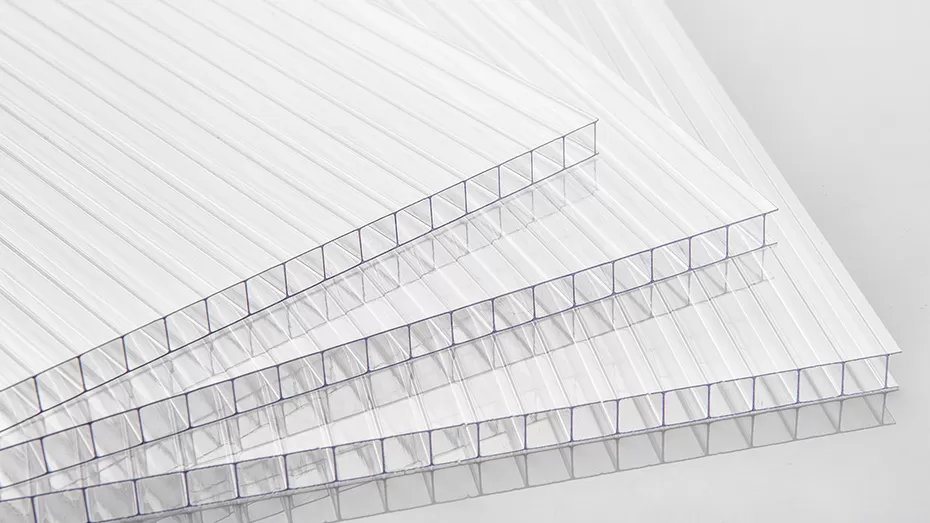

PC hollow sheets feature exceptional impact resistance, high light transmission, thermal stability, weather resistance, and fire retardancy. Thanks to their hollow core structure, they are lightweight—a feature that helps reduce construction costs—while the hollow layer also provides effective thermal insulation. They are commonly utilized for general architectural lighting applications, such as factory skylights, greenhouses, walkways, and parking canopies. Leveraging advanced UV co-extrusion technology, PC sheets ensure superior resistance to ultraviolet radiation, backed by a 10-year quality guarantee for outdoor applications.
1. Lightweight
2. Easy to install
3. Economical; helps save significantly on installation costs
4. Energy-efficient
5. Optimal light transmission

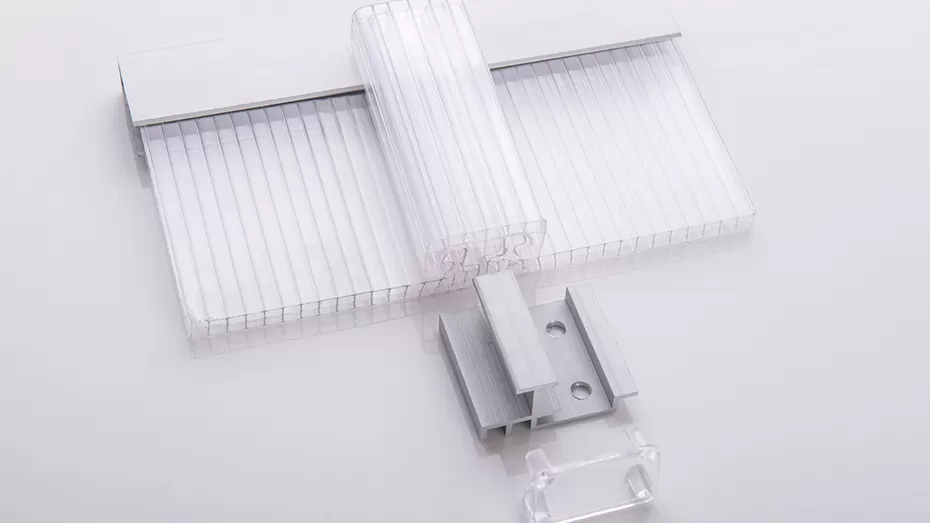

6. Wide range of applications:
Greenhouses / Green Buildings / Window Panes / Interior Decoration / Lightweight Partitions / Ceiling Cladding / Advertising Signage / Light Boxes.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
