This plastic-reinforced steel cable tray is an innovative material complying with plastic-replacing-steel policy. With flame retardance, corrosion resistance, great mechanical strength and insulation, it is widely used in power, chemical and coastal projects, replacing traditional trays and becoming ideal for future engineering.
Model | Screw Dia (mm) | Rotor speed(rpm) | Drive Power(KW) | Capacity(kg/h) |
JWS30/25 | 30 | 1-60 | 3-4 | 8-10 |
JWS35/25 | 35 | 1-50 | 4-5.5 | 10-15 |
JWS45/25 | 45 | 1-58 | 5.5-7.5 | 20-35 |
JWS50/25 | 50 | 1-58 | 11-15 | 35-45 |
JWS65/25 | 65 | 1-80 | 15-22 | 45-60 |

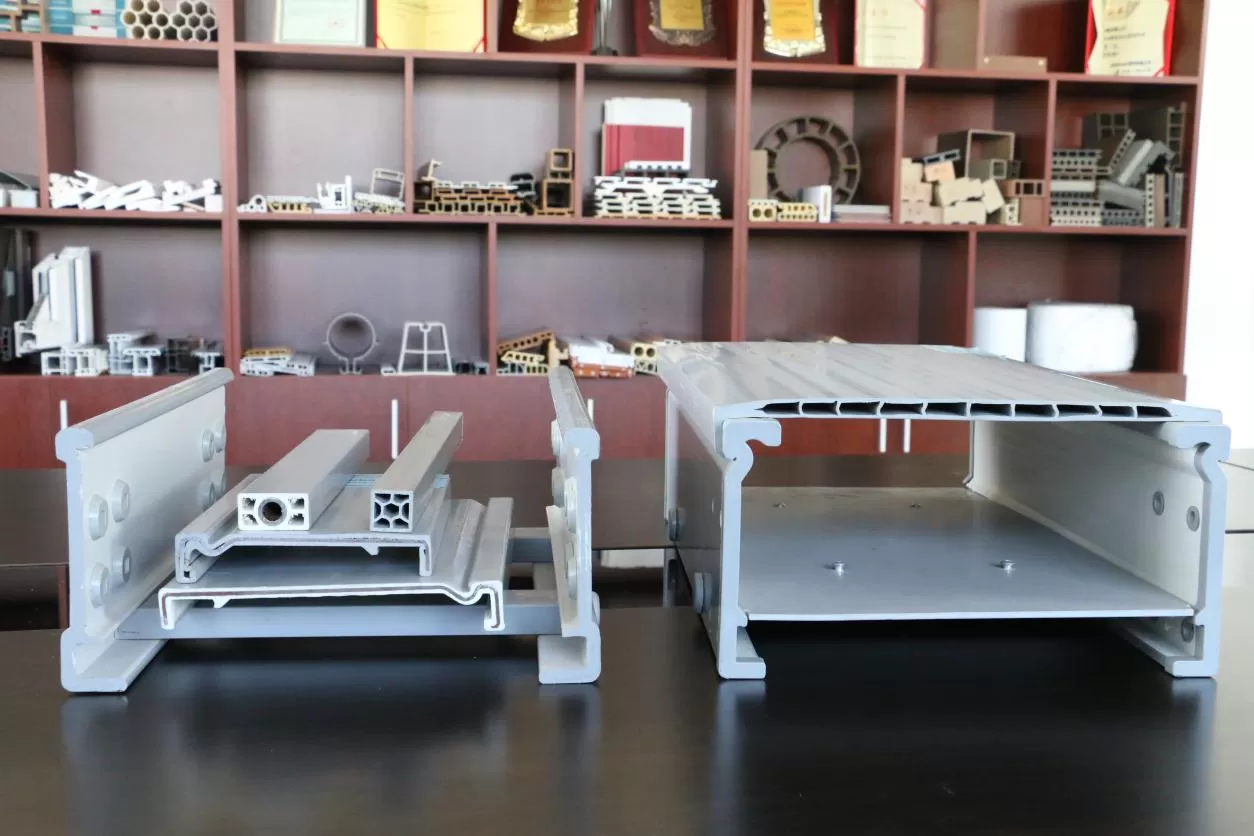

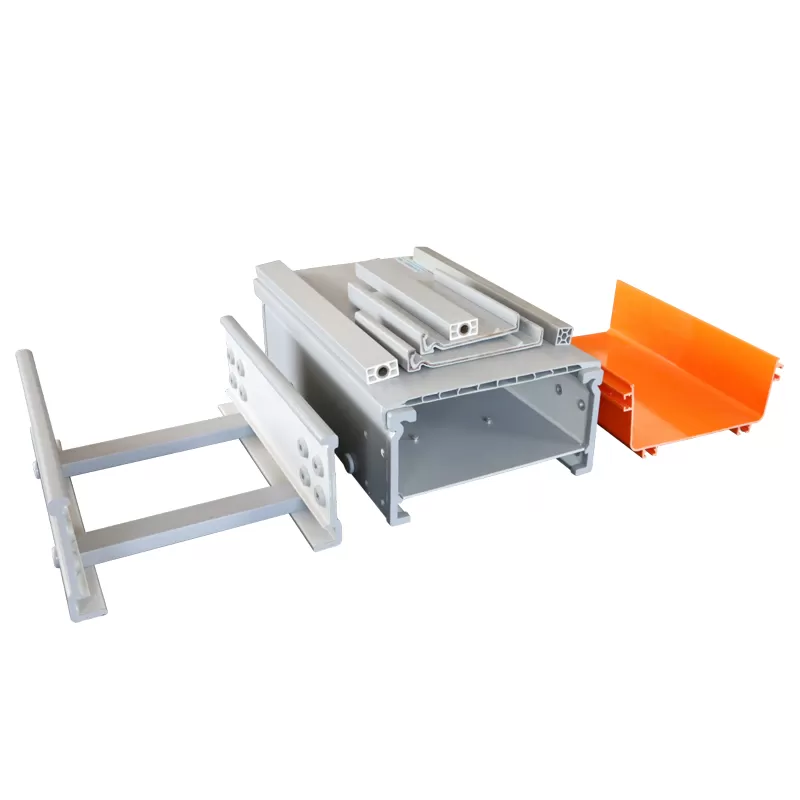

Plastic Reinforced Steel cable tray mainly divide into composite plastic bridge and plastic reinforced steel bridge. It is a kind of new and advanced bridge material series product. It already has been widely used in chemical industry, petroleum, electric power, medicine, construction and other industries and coastal areas. It can replace current traditional cable tray, and has been widely used in developed countries in EU and USA. It is the preferred cable tray for future engineering application. It conforms to the national policy of "replacing steel with plastic", and has the characteristics: flame retardant, corrosion resistance, excellent mechanical strength, good insulation performance, suitable structure, beautiful appearance and long service life. It integrates steel bridge, glass fiber reinforced plastic bridge and aluminum alloy bridge in different conditions and climatic conditions, then researched and developed.

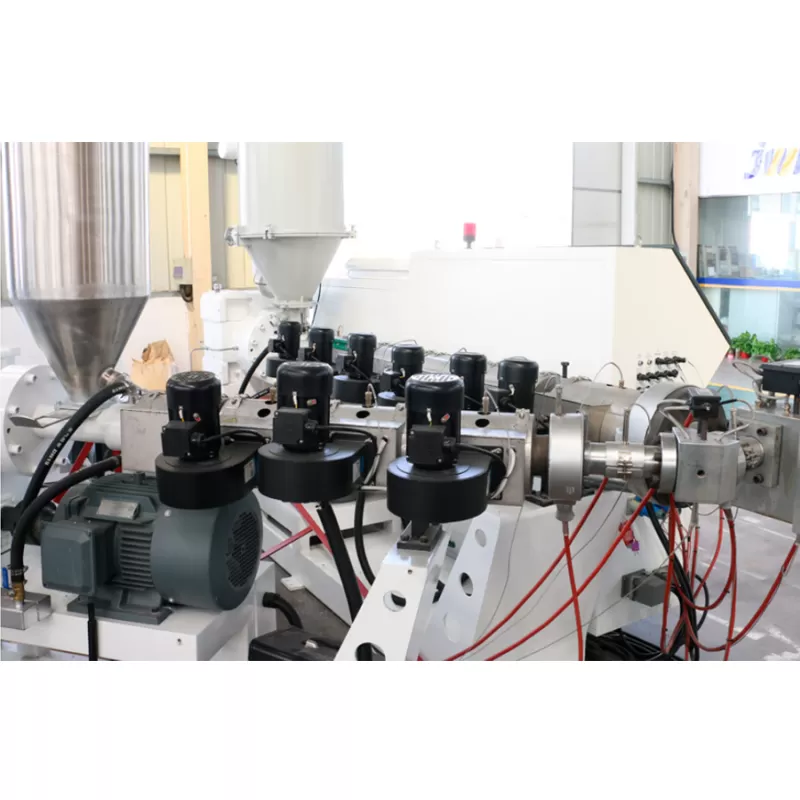

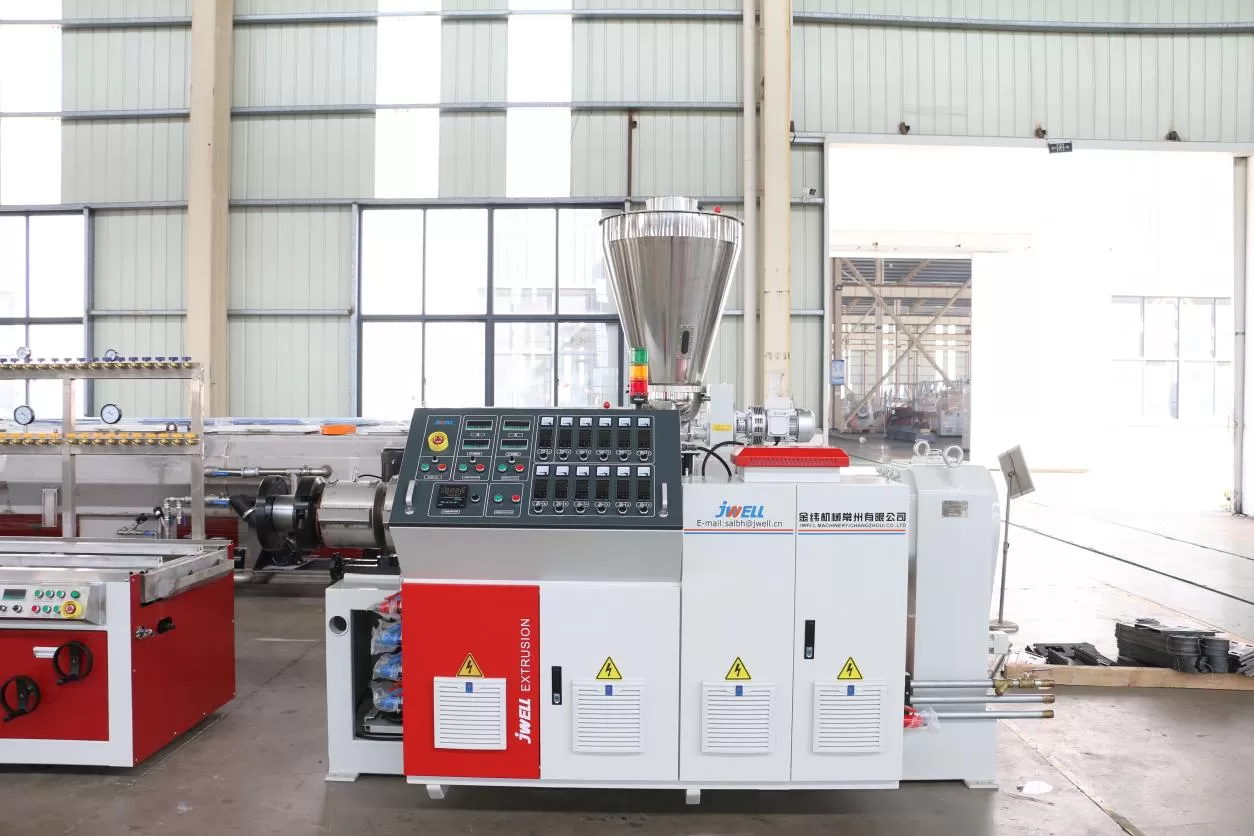

Special designed screw guarantees perfect plasticization, more durable.
High precision and wear-resisting gearbox with advantages of high efficiency transmission and lower noise.
Imported main motor, famous brand inverter and accurate electrical components.

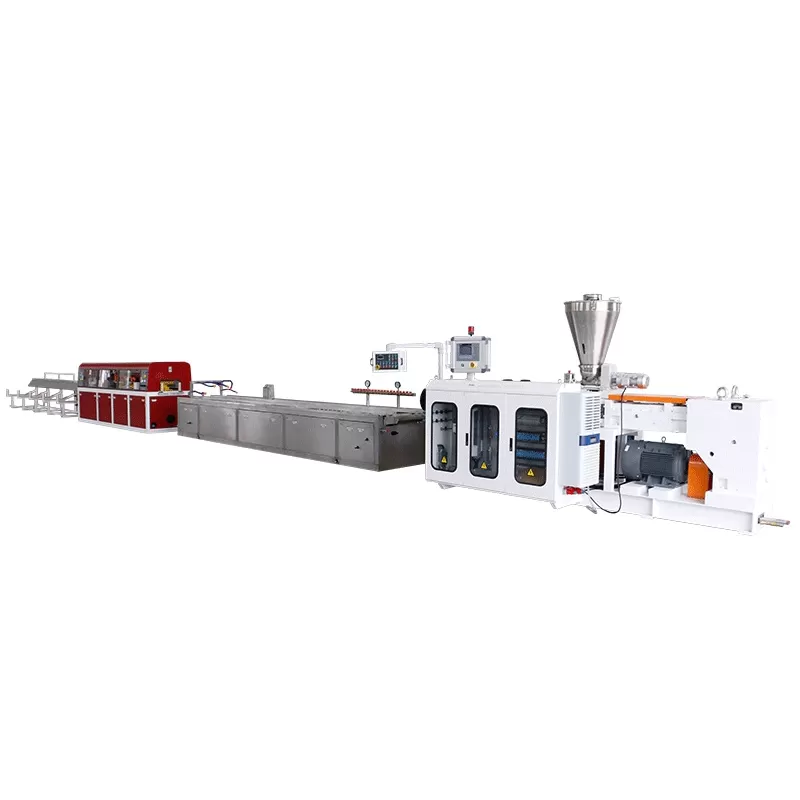

The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.
Could be moved by motor or by hand.
High pressure vacuum system keeps great product shape.

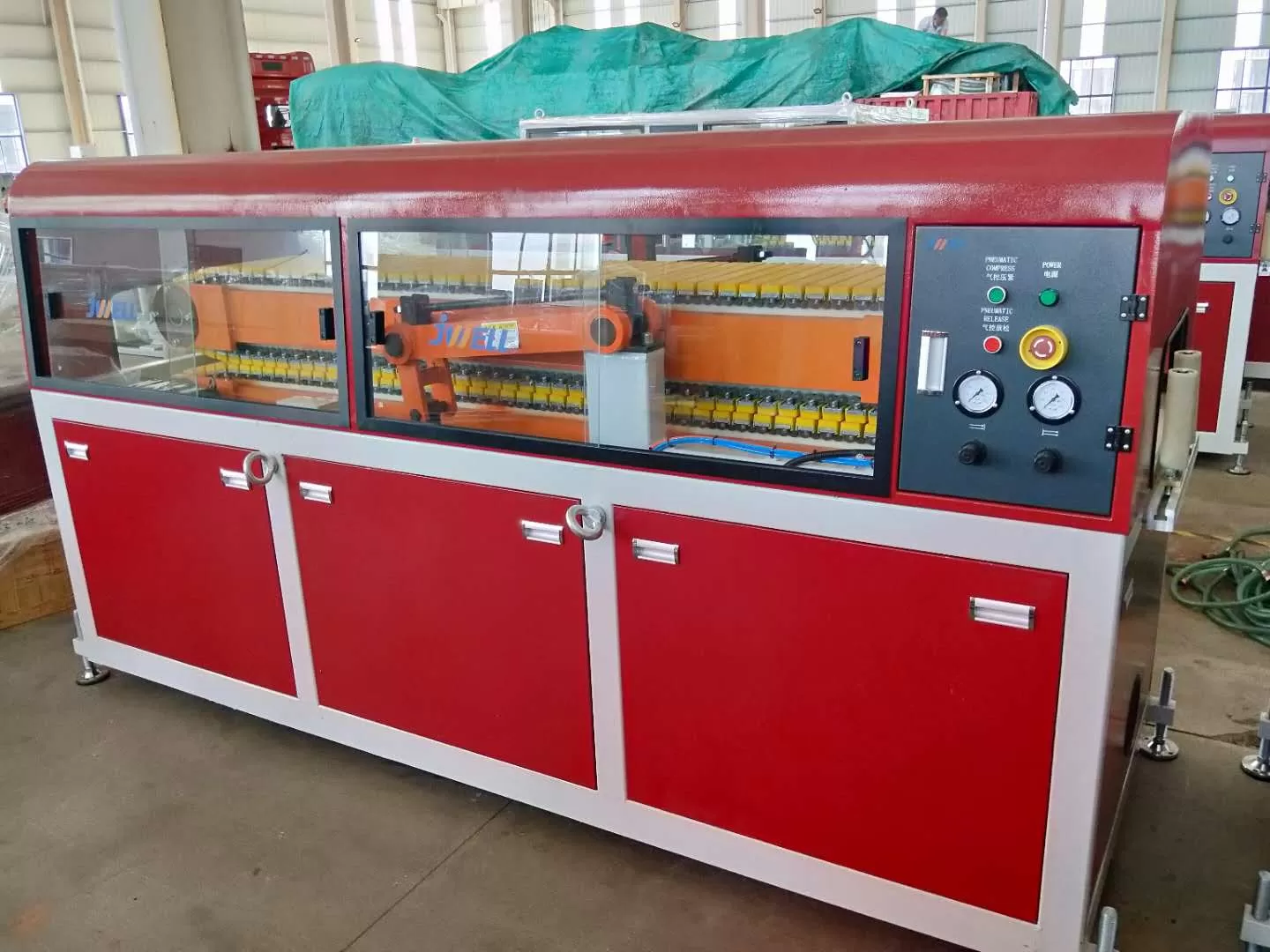

Two tractors driven by two independent motors.
Speed controlled by imported inverter.

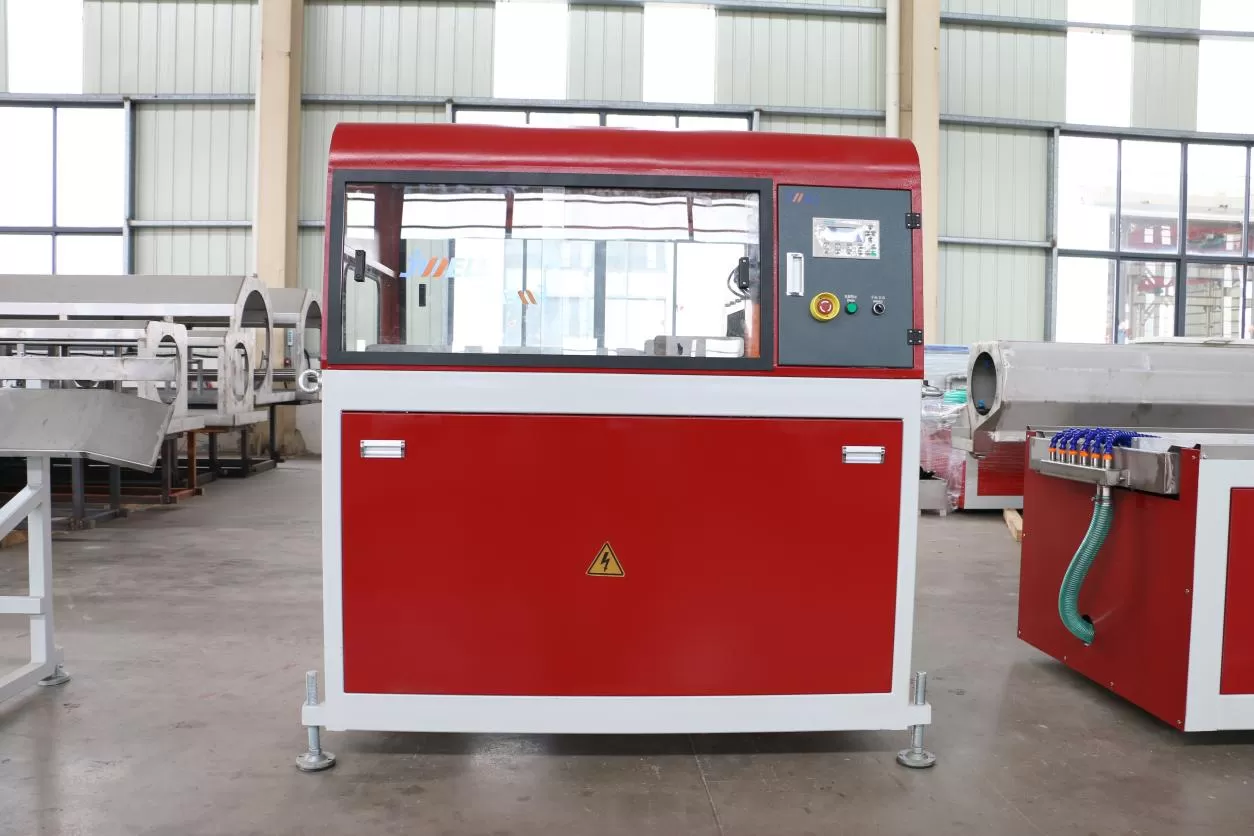

Cutting knife movement and saw working controlled by pneumatic cylinder and PLC program system.
Independent operation panel.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
