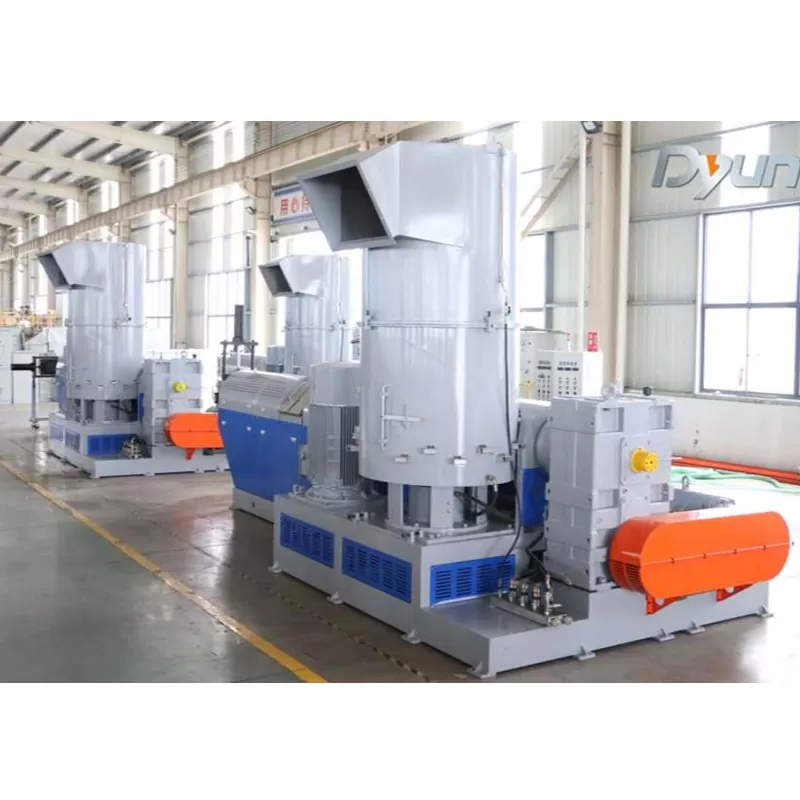

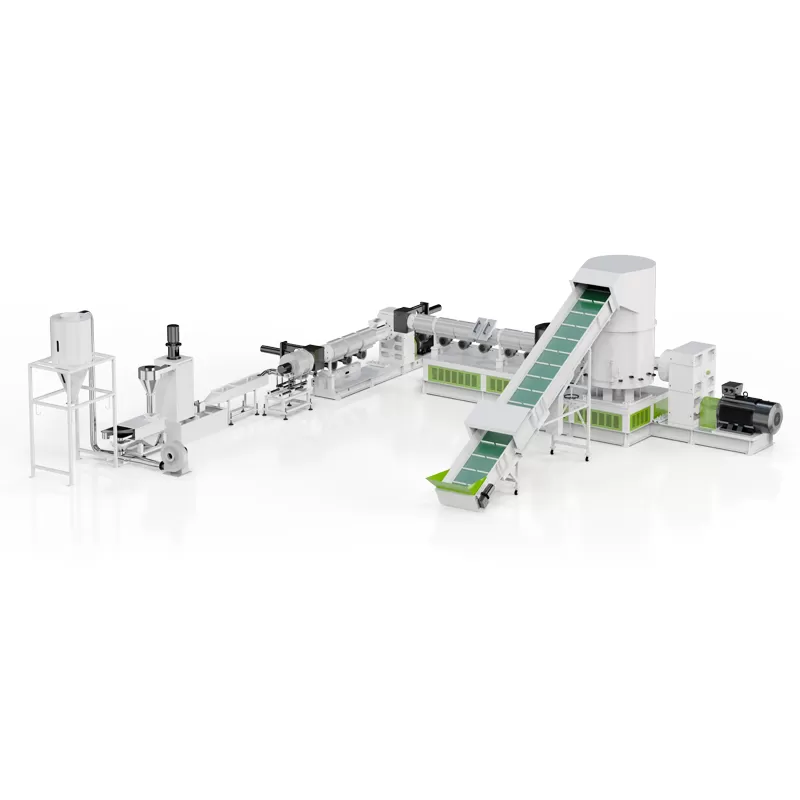

This complete plastic granulation line includes PVC conveyor, stainless steel compacting machine, high-torque single-screw extruder, fast hydraulic screen changer, water-ring pelletizer, dryer, vibrating screen, air supply system and stainless steel silo with integrated automatic production.
Model | Screw dia (mm) | L/D | Main motor power (KW) | Screw speed (RPM) | Output capacity (kg/h) |
JWP90 | 90 | 36/1 | 75-90 | 20-150 | 200-300 |
JWP120 | 120 | 36/1 | 110-132 | 20-120 | 300-400 |
JWP150 | 150 | 36/1 | 160-200 | 20-100 | 400-500 |
JWP180 | 180 | 36/1 | 215-315 | 20-100 | 600-800 |
Belt conveyor belt: The belt material is PVC, the bracket is carbon steel, and a metal detector is installed on the conveyor belt.
Compacting machine: The raw material contact part is made of stainless steel, and the rest is carbon steel. It consists of a fixed knife, a movable knife, a temperature measurement and cooling system, and a cooling fan.
Single-screw extruder: composed of reduction box (high torque, low noise, external cooling circulation system), nitrided 38CrMoAlA1 screw, barrel, barrel fan cooling, controlled by temperature controller), vacuum system composition.
Hydraulic screen changing system: double-station non-stop hydraulic screen changing, no material leakage, screen changing time ≤ 2 seconds.
Vertical water ring die surface cutting system: water ring pelletizing, the cutting speed is controlled by frequency conversion, including: cutting head, diverter cone, water ring cover, tool holder, cutterhead, cutter bar, etc.
Chute material: The bracket is Q235 welded, and the rest is stainless steel.
Centrifugal dryer material: the bracket is Q235, the rest is stainless steel.
Vibrating screen material: double-layer stainless steel mesh.
Air supply system material: Pipe tees, etc. are all made of stainless steel and are composed of fans and heaters.
Silo material: stainless steel.
This extruder adopts special screw design and different configurations, and is suitable for the regeneration of various dry film plastics such as PP, PE, BOPP, BOPET, BOPA, PA66, etc.

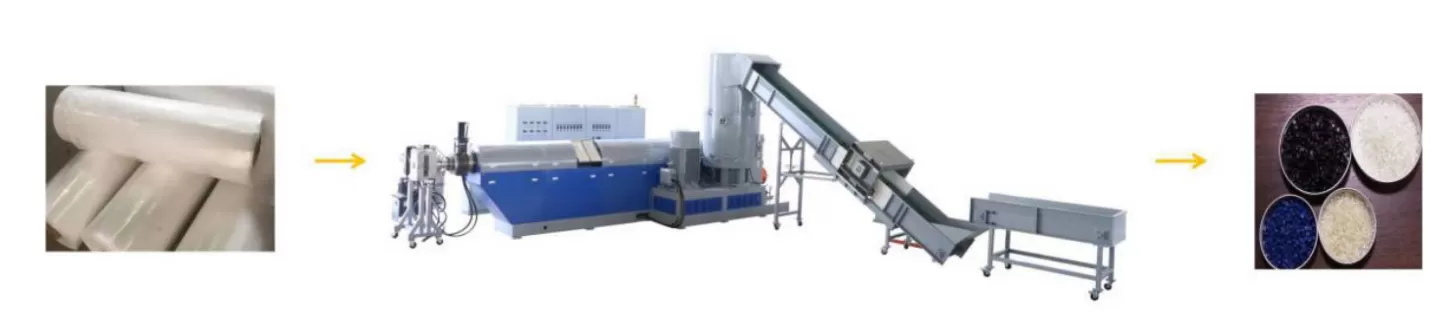

Dyun Plastic Film Integrated Pelletizing Line combines the functions of crushing, compacting, plasticization, and pelletizing into one step, making it a reliable and efficient solution for various types of plastic materials.

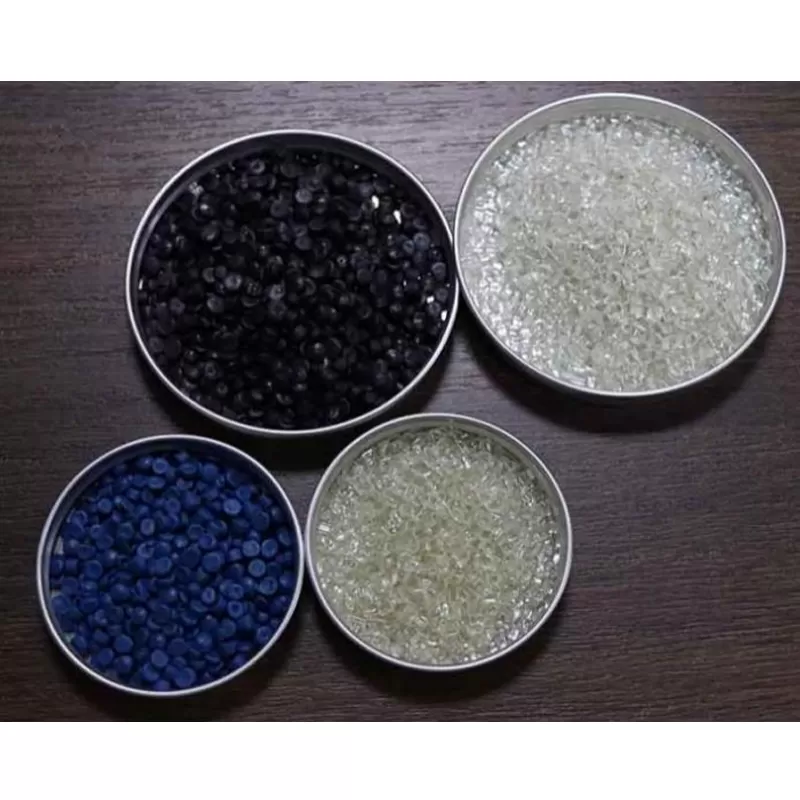

Dyun Plastic Film Integrated Pelletizing Line can handle plastic film, raffias, filaments, bags, woven bags, and foaming materials with ease. It can produce high-quality pellets that can be directly used in the production line for the blown film, tube extrusion, and injection molding. The system can also process different kinds of plastic materials such as PE, PP, PS, ABS, XPS, EPS, and PVB.
Dyun Plastic Film Integrated Pelletizing Line is designed with specially engineered granulators that can quickly and efficiently cut various plastic streams into small uniform flakes or regrinds. These granulators are extremely durable and can handle a variety of applications for plastic recycling such as grinding plastic bottles, films, and small rigid plastics.
Dyun Plastic Film Integrated Pelletizing Line is the ultimate solution for plastics recycling and granulation. It can provide higher output with lower energy consumption, saving you time and money.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
