This edge banding production line integrates single/twin-screw extruder, mold, embossing, vacuum cooling, traction, gluing, drying and winding units. Featuring fine plasticization, low energy consumption and high output, it supports multi-cavity molds and 19–54mm width, 0.4–2mm thickness products. With multi-color printing and UV coating, it is widely applied in furniture edge sealing and packaging.
Model | Driving motor | Screw rpm | Capacity | Product size | Thickness |
JWS45/25 | 11kw | 5-50rpm | 15-20kg/h | 12-35mm | 0.4-1mm |
JWS50/25 | 15kw | 5-50rpm | 25-30kg/h | 12-45mm | 0.4-1mm |
JWS55/25 | 18.5kw | 5-50rpm | 30-50kg/h | 12-45mm | 0.4-2mm |
JWS65/25 | 22kw | 5-50rpm | 50-60kg/h | 12-50mm | 0.4-2mm |

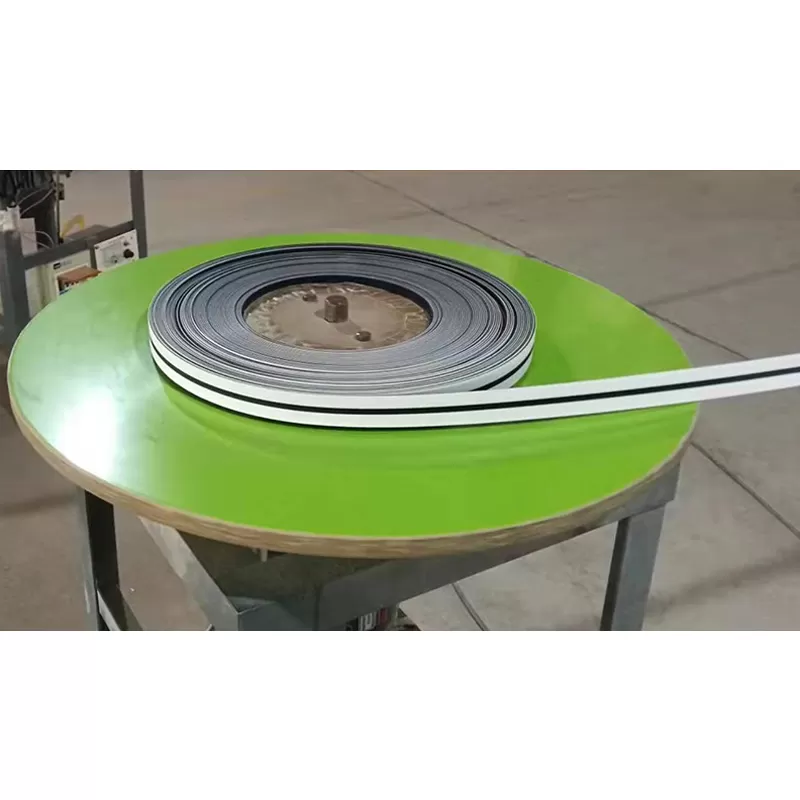

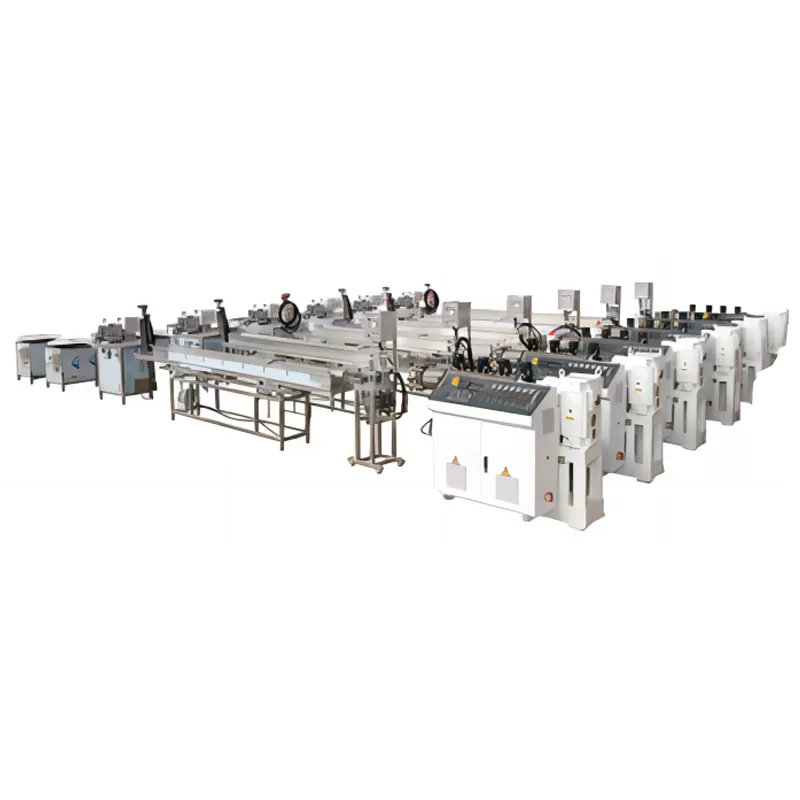

Our company has absorbed the advanced technology at domestic and abroad and successfully developed the edge banding production line suitable for the needs of customers. The production line consists of single screw extruder or twin screw extruder and mold, embossing device, vacuum tank, haul-off unit as gluing roller device, air dryer device, cutting device, the winder device etc...

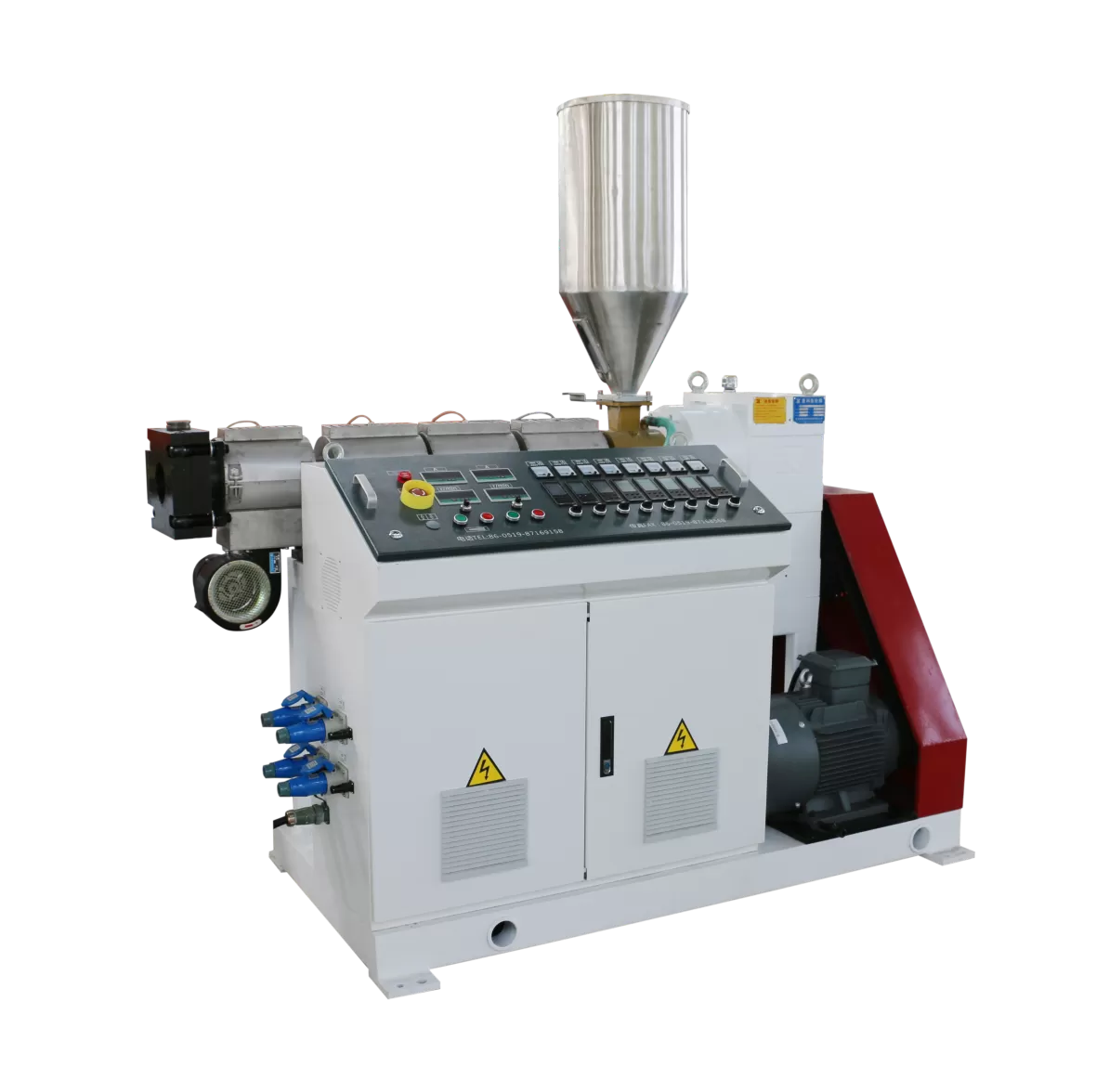

The product has characteristics as good plasticization, diversified colors, accurate control, high capacity and low energy consumption. It can replace PVC calendering sheet technology. The extruder adopts imported frequency inverter for speed regulation, the temperature control adopts Japanese Omron products. The auxiliary machine with vacuum pump and haul-off unit motor adopt high-quality products for convenient maintenance.
Main application: furniture, wainscot of office appliances, edge banding, packaging thermoforming etc.

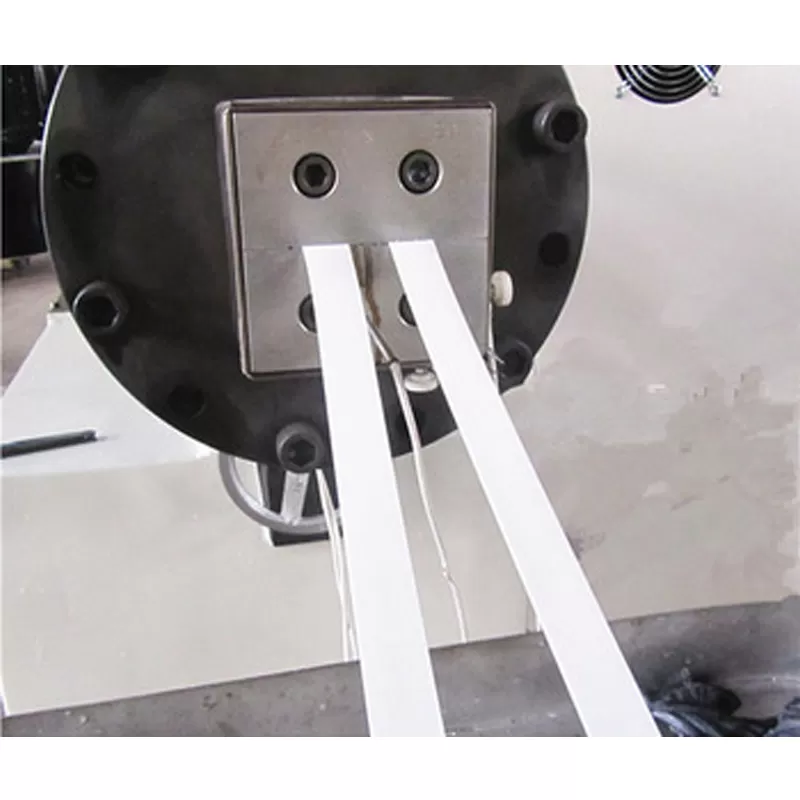

PVC edge band making machine with double screw extruder is used to produce PVC edge banding tape. For different size edge banding will need change mould. This type machine can be 2 cavity, 4 cavity, 6 cavity or 8 cavity. The size of edge banding, width 19mm-54mm and thickness 0.4mm-2mm.

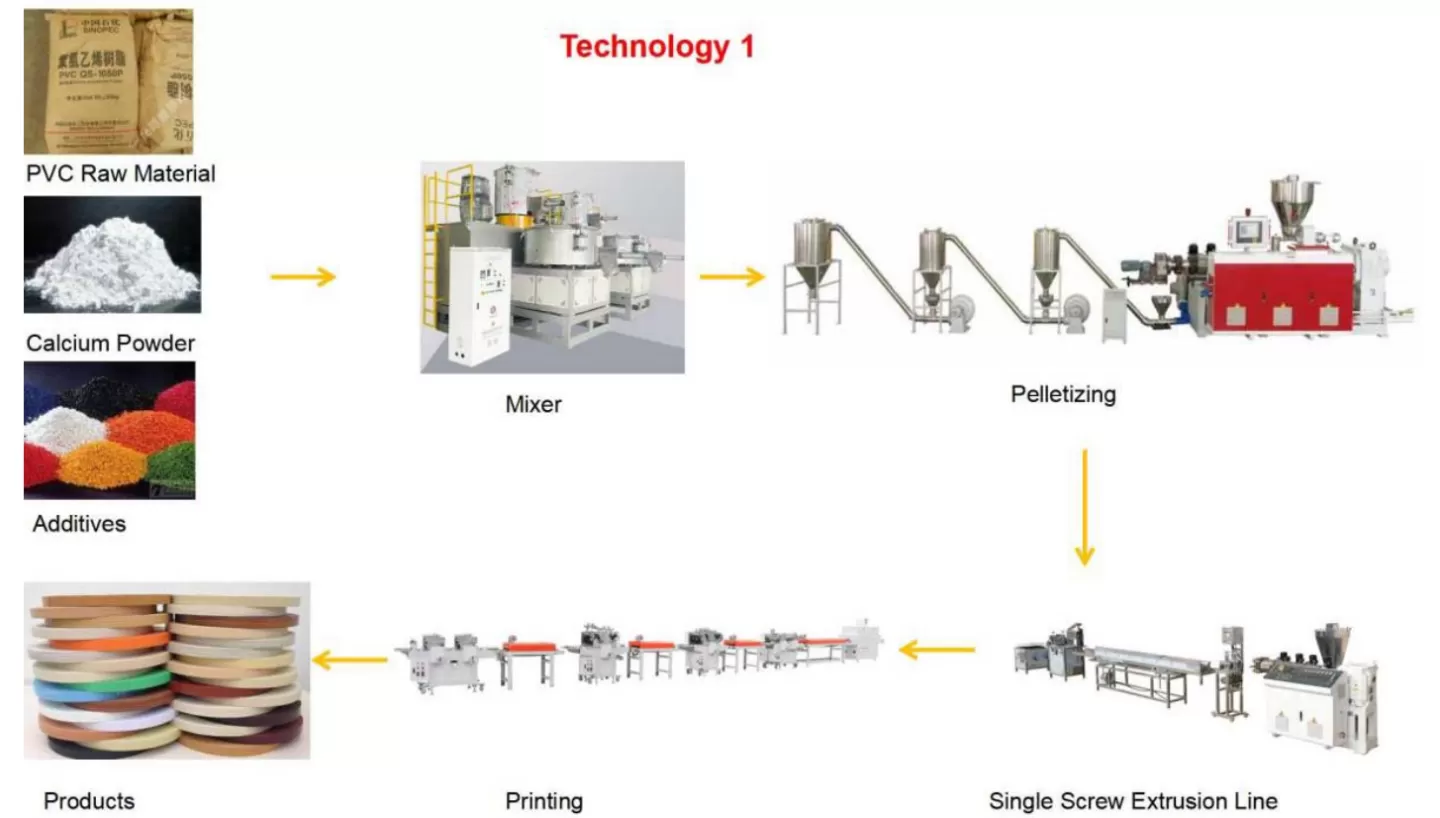

Main process of this type machine will include: double screw extruder line, printing machine.
The surface of PVC edge banding can be treated by two colors printing or three colors printing. After printing, the surface also need to coat UV varnish. After UV varnish,the Final PVC edge banding is more high glossy or Matt glossy.
Screw material: alloy steel of high quality 38CrMoAlA, nitrogen treatment, with the thickness: 0.5~0.7mm, the surface hardness: HV740~940.
International first class brand motors, inverters and other electrical components.
Based on Jwell's 26 years of production and design experience, the machine layout is compact and beautiful, and the equipment has strong stability.

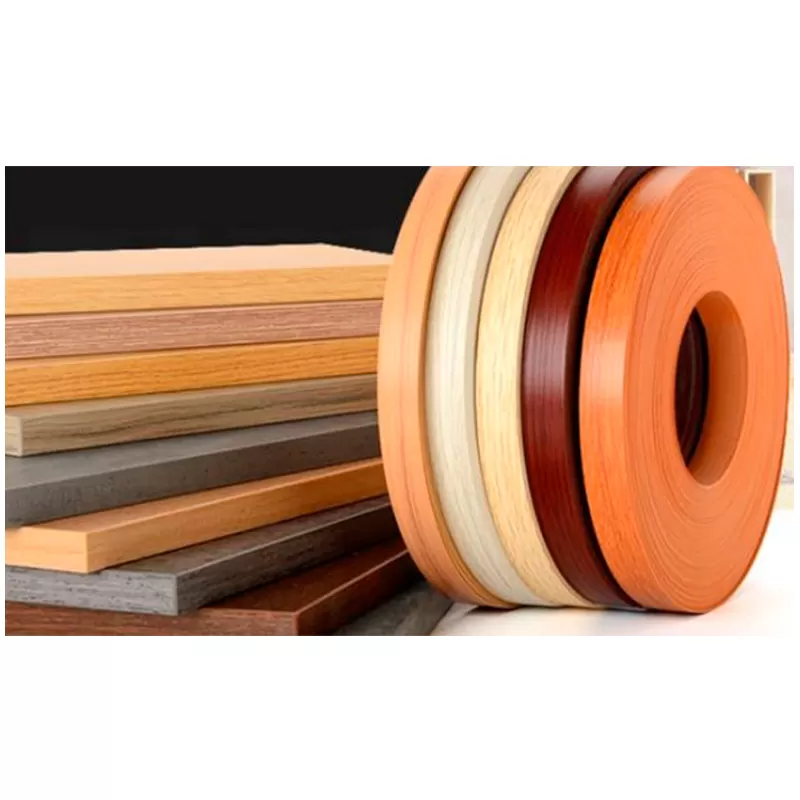

PVC ABS edge banding are mainly used for veneering, edge banding, packaging and blistering of furniture and office appliances.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
