This production line enjoys stable plasticization, high output, low shear force and long service life. Composed of control system, twin-screw extruder, die, calibrator, traction unit, laminator and stacker, it adopts variable frequency drive and imported temperature control. By simply replacing molds and screw barrels, it can produce foam profiles with superior performance to single-screw extrusion.
High speed main technical parameter
Type | YF240 | YF240 | YF240A |
Max width(mm) | 240 | 240 | 150*2 |
Extruder model | SJP75/28 | SJP93/30 | SJP110/28 |
Max capacity(kg/h) | 150-250 | 250-400 | 400-500 |
Extruder power(kw) | 45 | 55 | 90 |
Cooling water(m3/h) | 7 | 8 | 10 |
Classic type main technical parameter
Type | YF108 | YF240 | YF240A | YF300 | YF400 |
Max width(mm) | 108 | 240 | 150*2 | 300 | 400 |
Extruder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
Max capacity(kg/h) | 150 | 250 | 250 | 250 | 450 |
Extruder power(kw) | 22 | 37 | 37 | 37 | 55 |
Cooling water(m3/h) | 7 | 8 | 8 | 8 | 10 |

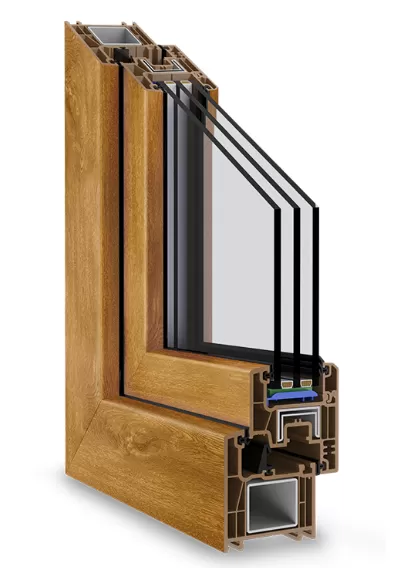

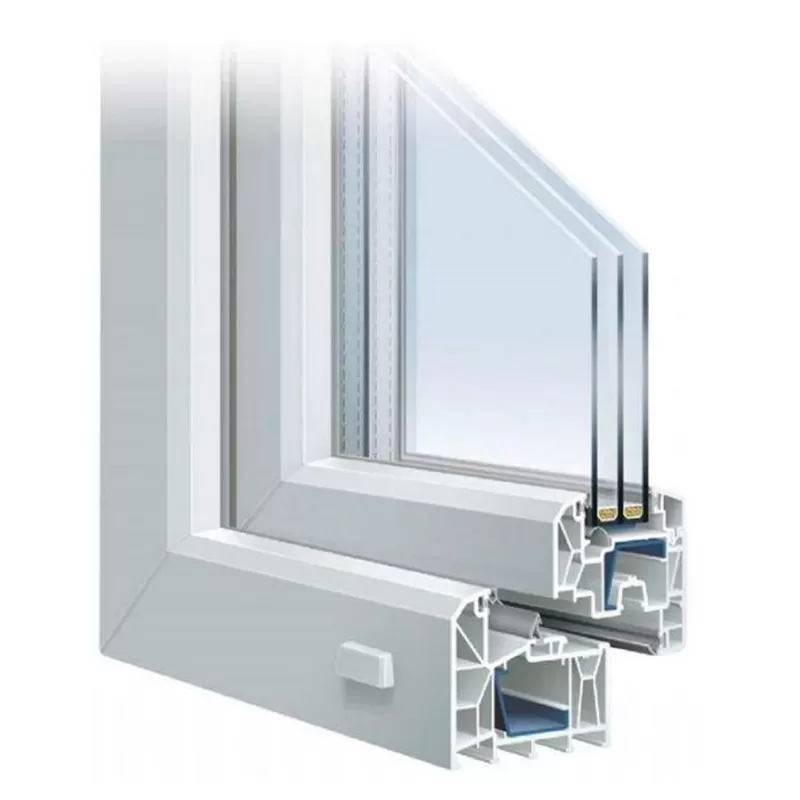

PVC window profile extrusion lines have broad applications, especially in building decorative materials.
1. Durable
Reinforced steel is added to the profiles of plastic doors and Windows, which not only has the effect of earthquake resistance, but also can withstand wind erosion. It has a unique structure, so that water is not easy to enter the reinforced steel cavity, and the life of doors and Windows is greatly improved. And the physical properties of plastic door and window profiles are very good, rigidity, corrosion resistance is good.
2, sound insulation
Sound insulation is an important choice for us to choose doors and Windows, because most people now live in the city, with noise problems. However, the multi-cavity structure of plastic door and window profiles has a good effect on noise reduction. Ideal for downtown homes or for those who prefer a quiet residential environment.
3. Weather tolerance
The multi-cavity structure of plastic door and window profiles has low heat transfer coefficient, good thermal insulation performance, and great economic and social benefits. Plastic steel door and window profiles can also be in ultra-low and high temperature environment for a long time. The exposure to the scorching sun and the humid environment are not easy to make the problem of aging of plastic steel door and window profiles. The service life of normal plastic steel doors and Windows can reach more than 50 years.

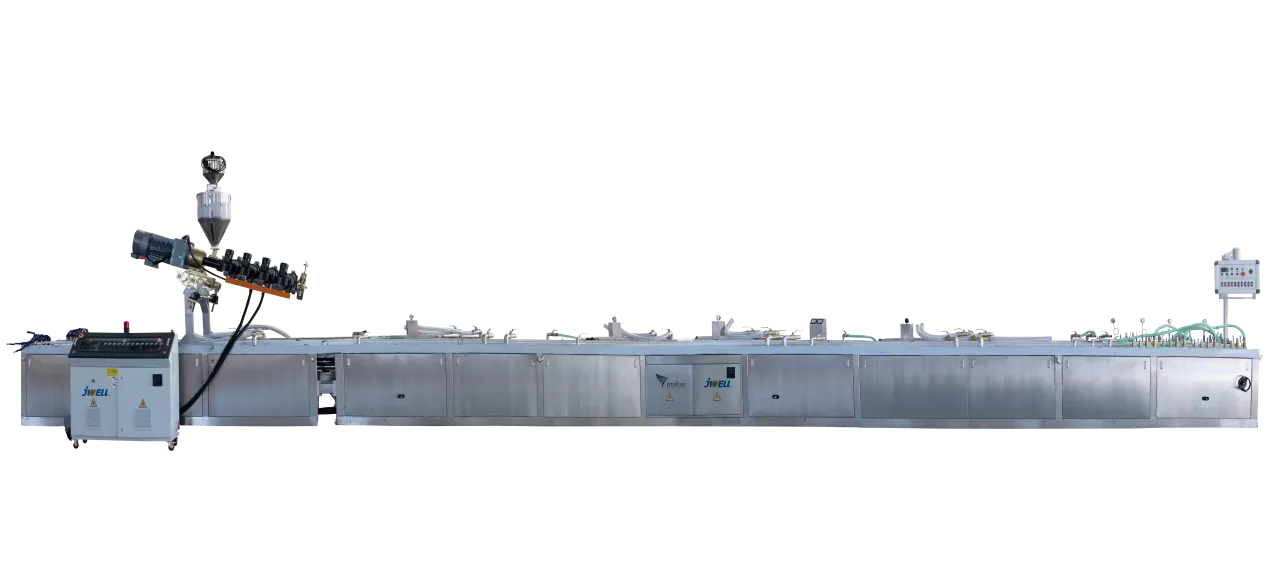

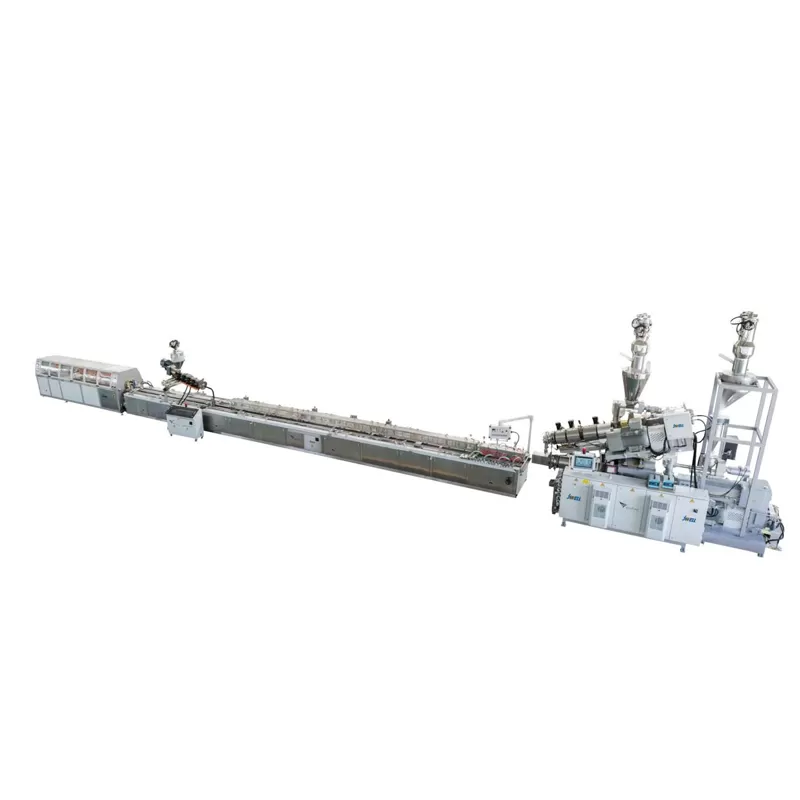

This line features stable plasticization, high output,low sheering force,long life service and other advantages. The production line consists of control system, conical twin screw extruder or parallel twin screw extruder,extrusion mold, calibration unit,haul off unit, film covering machine and stacker.

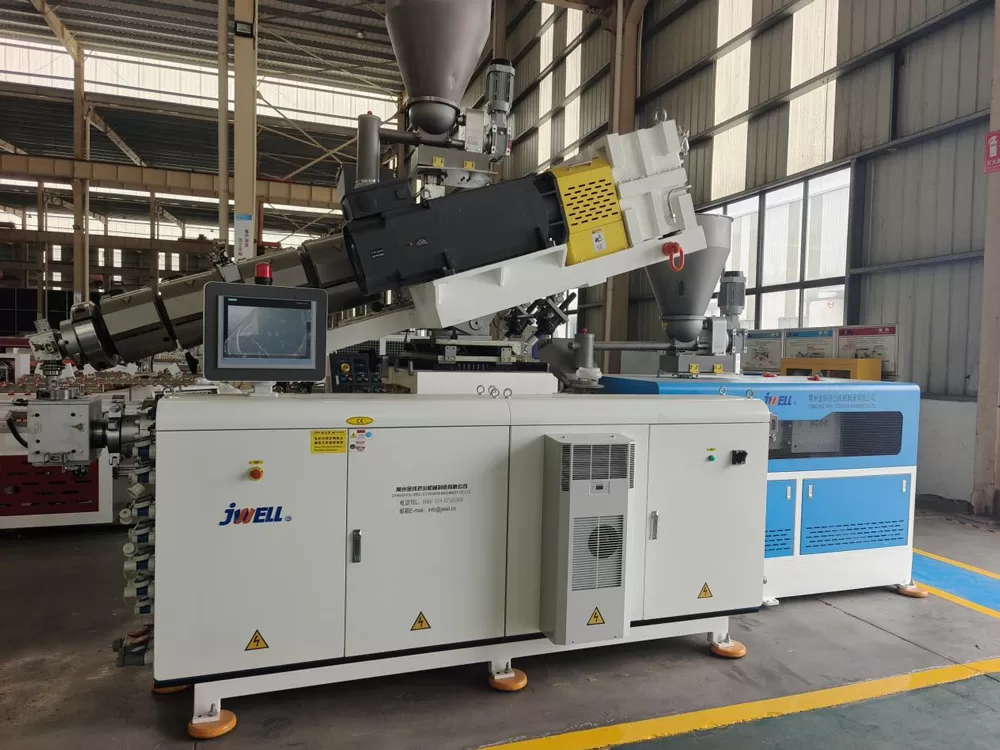

The extruder is equipped with AC variable frequency or DC speed drive, imported temperature controller. The calibration unit's pump and haul off unit's reducer are famous brand products. After simple changing of the mold and screw and barrel, it also can produce the foam profiles,the effect can be better than single screw extruder.
Our PVC window profile extrusion line has high output.
Energy saving & easy operation.
Unique designed screw guarantees stable plasticization and fast material process.
High precision and wear-resisting gearbox with the advantages of high-efficiency transmission and lower noise.

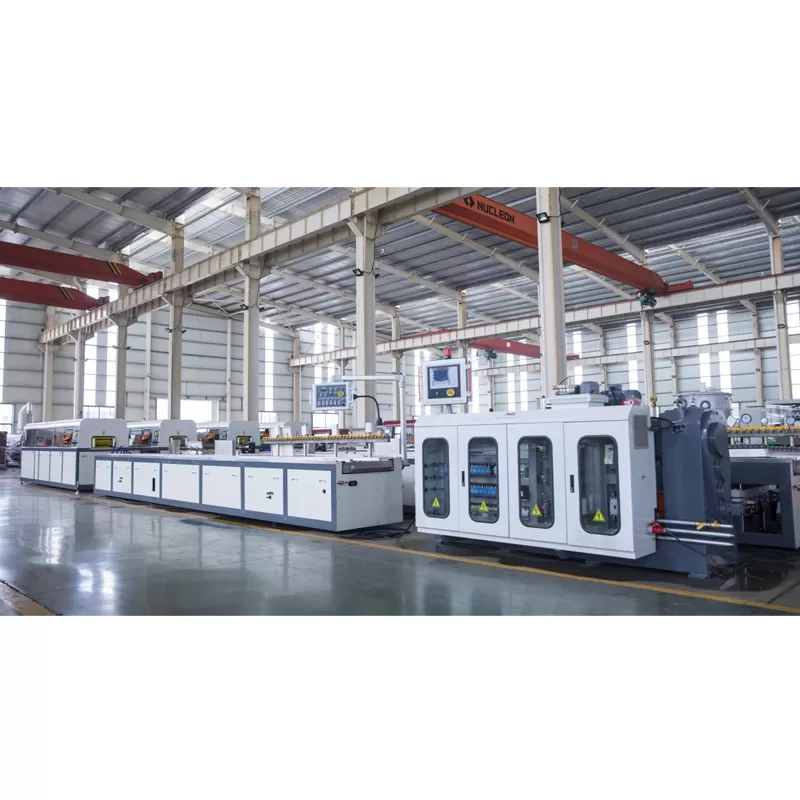

The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.

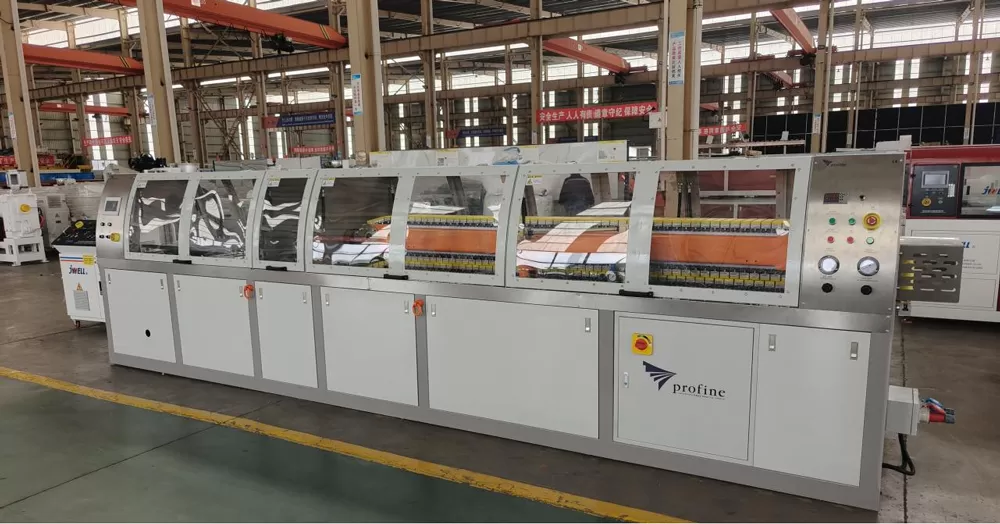

Calibration table connects with haul-off unit by lead screw.
Electrical cabinet and operation panel are protected by waterproof film.
Could be moved by motor or by hand.
Two tractors driven by two motors.
Speed controlled by imported inverter.
Cutting knife movement and saw working controlled by pneumatic cylinder and PLC program system.
Manual cutting and automatic cutting choice.
Independent operation panel.
Imported main motor, famous brand inverter and accurate electrical components.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
