Horizontal Double Wall Corrugated Pipe Extrusion Line
HDPE/PP/PVC double-wall corrugated pipes are widely used. The HDPE double-wall corrugated pipe production line developed by our company is equipped with many patented technologies. HDPE/PP adopts new high efficiency single screw extruder, PVC adopts large flat double or cone double extruder, with large extrusion capacity. The forming machine adopts horizontal structure, shuttle drive, sealed water-cooled structure, vacuum forming, and can realize online double-layer flaring. Whole line is controlled by PLC computer.
Technical Parameter of Horizontal Double Wall Corrugated Pipe Extrusion Line
Type
Pipe Size
Speed
Total Power
Product Line Lenath and Width
JWBW-150
ID40-150
Max15
270
28x4.5
JWBW-300
ID100-300
Max7.5
340
30x6
JWBW-600
ID100-600
Max5.5
490
34x6
JWBW-800
ID200-800
Max4.2
615
38x8
JWBW-1000
ID300-1000
Max3.8
795
38x8.5
JWBW-1200
ID400-1200
Max2
890
38x9
JWBW-1500
ID600-1500
Max1.2
1110
42x9.5

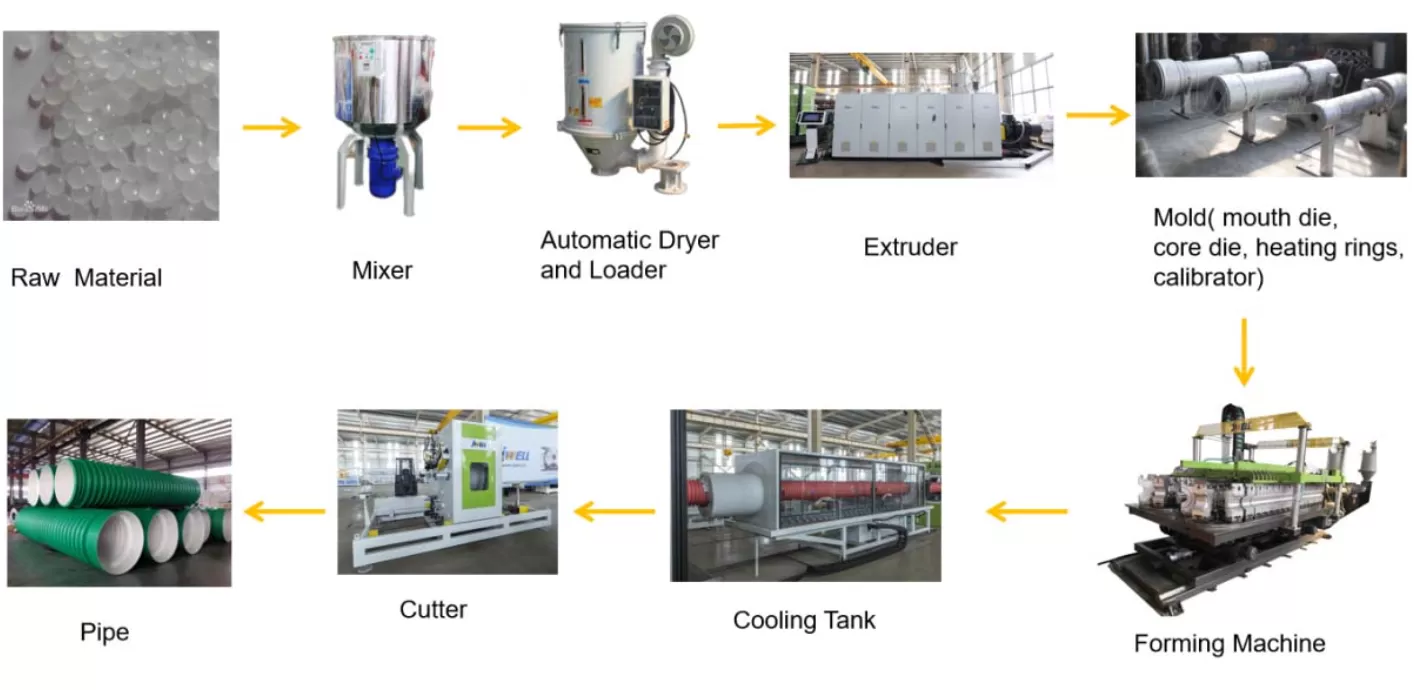

Production Process of Horizontal Double Wall Corrugated Pipe Extrusion Line
Performance and Advantages of Horizontal Double Wall Corrugated Pipe Extrusion Line

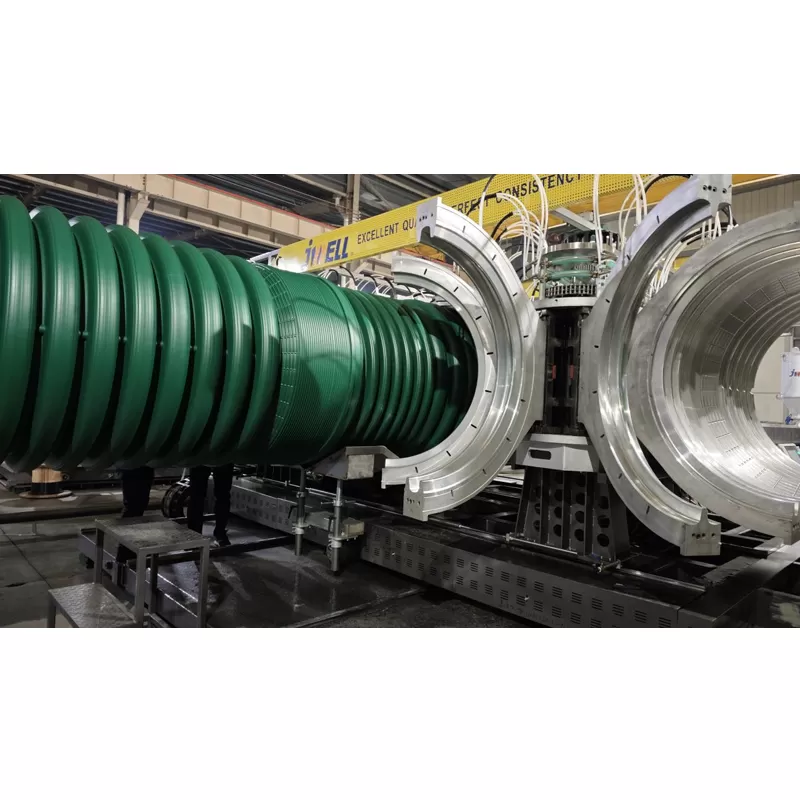

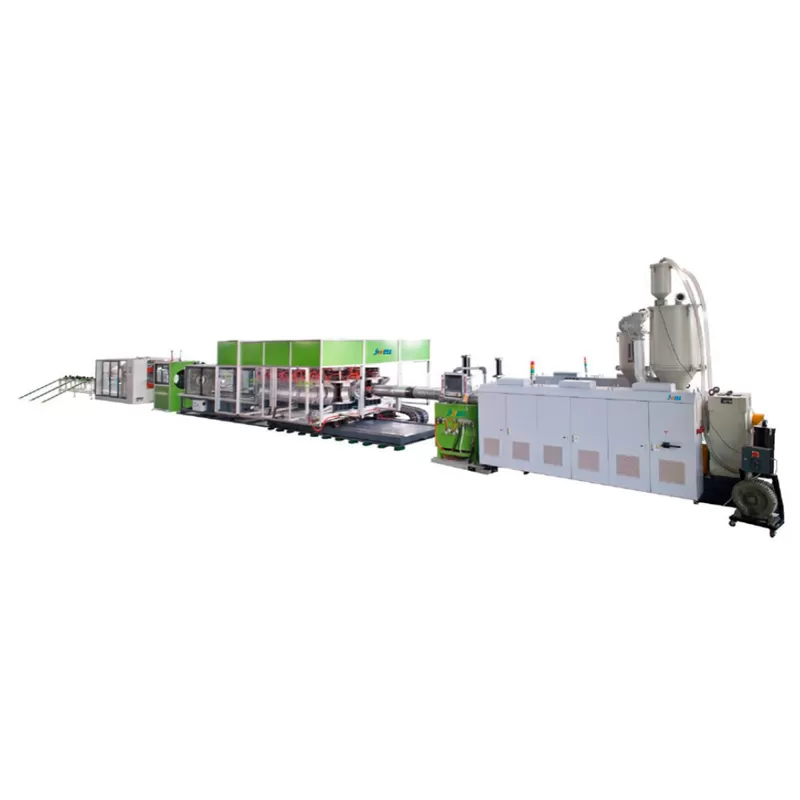

Our large-diameter single wall and double wall corrugated pipe production line is fully automatic control, running stable and high capacity. HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder or parallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole corrugated pipe extrusion line is controlled by PLC computer.
Mini high speed single wall corrugated pipe machine can produce two diameters or three diameters single wall corrugated pipe with the same mould blocks, which reduce the cost of the mould blocks, corrugated pipe machine and extrusion line price and the changing time, also increase the efficiency
New Corrugated Pipe Extrusion Line for Ventilation System high precision for front-back adjustment, according to air ventilation pipe, specially design for the mould. New vertical type water cooling corrugator, precisely location of mould block, easy to change the mould.
Application of Horizontal Double Wall Corrugated Pipe Extrusion Line

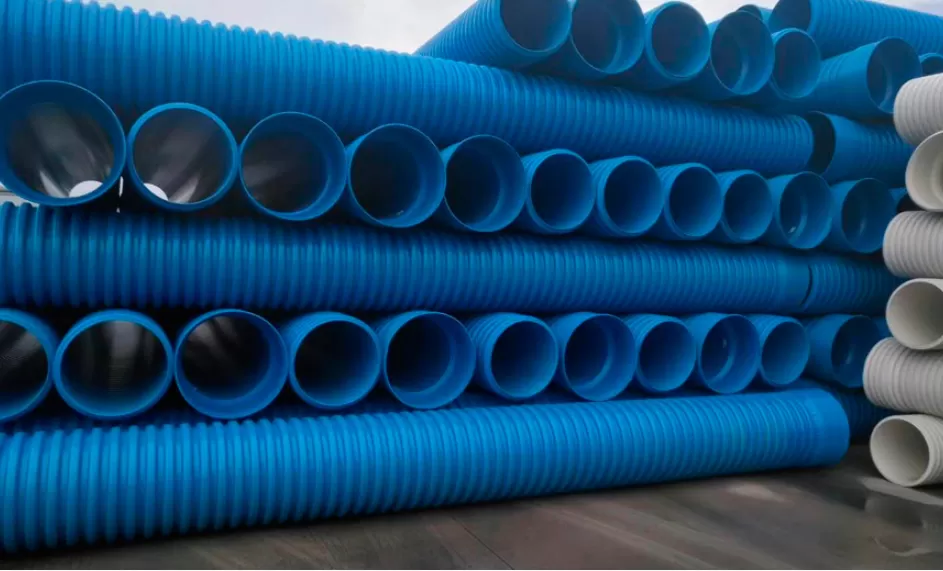

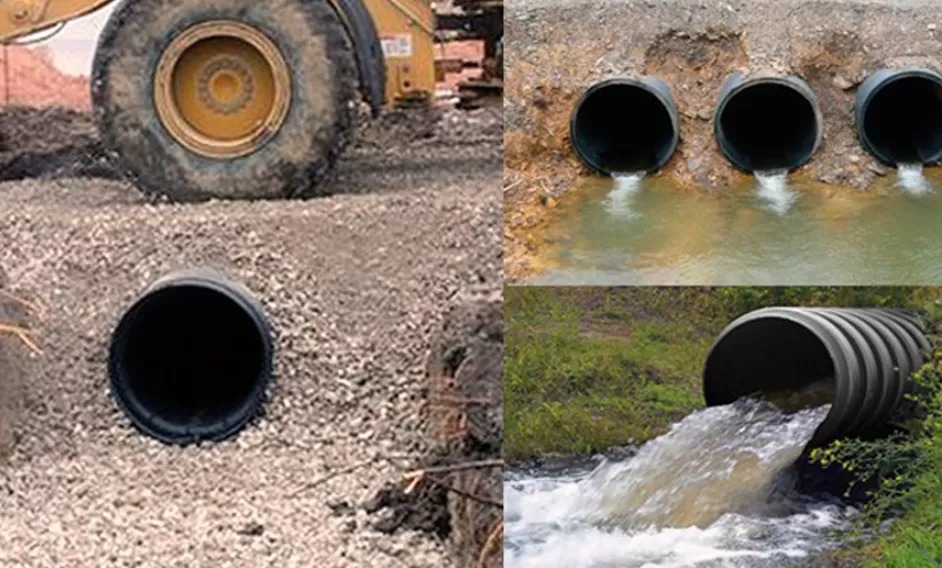

Double wall corrugated pipe extrusion line, is a new pipe with an annular structure of outer wall and a smooth inner wall, Large-diameter double-wall corrugated pipe mainly used in large water supply, water supply, drainage, sewage, exhaust, subway ventilation, mine ventilation, farmland irrigation, etc.
Special purpose single and double wall corrugated tubes of corrugated pipe production line have anti-high temperature, anti-wear, and high strength. Applied to electrical threading tube, automotive threading tube, sheath tube, machine tool product, packaging food machinery, electric locomotive, engineering installation, lamp, automation instrumentation, etc., market demand is larger.
New Corrugated Pipe Extrusion Line for Ventilation System corrugated pipe for air ventilation system is produced by two different PE material. Double wall corrugated pipe, and designed by hollow structure. It is easy to install in the ceiling and roofing. Also, this corrugated pipe has good performance to bear the cement. The pipe adopt special inner layer, smoothly, easy to clear, less resistance, sound-proof, insulation.
Videos of Horizontal Double Wall Corrugated Pipe Extrusion Line
Related Horizontal Double Wall Corrugated Pipe Extrusion Line
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
