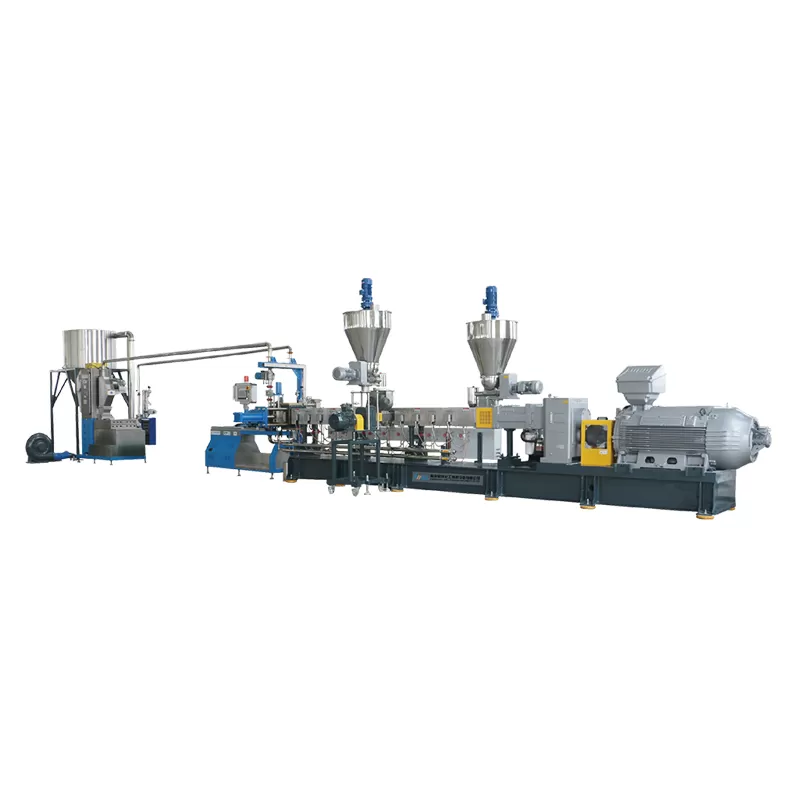

This modular twin-screw extrusion line is equipped with high-torque gearboxes, wear-resistant screws and high-efficiency IE5 energy-saving motors. With precise loss-in-weight feeding, closed dust-free underwater pelletizing and complete auxiliary downstream units, it supports flexible formula adjustment and stable high-efficiency production.
Model | L/D | Speed | Output Capacity (kg/h) |
CJWV77 | 36-56 | 400-900 rpm | 2000-3000kg/h |
CJWH95 | 36-56 | 400-900 rpm | 3000-3500kg/h |
The high filler pelletizing line is widely used in pipes, wire series, extrusion, injection molding, films, strapping and so on.
High filling operation is to fill a high proportion of inorganic powder into resin carrier and ensure the filler distributed evenly. The resin carrier can not be cut over broken in order to maintain good physical properties in the process of processing. Meanwhile the equipment should guarantee higher capacity and low wear-off to keep cost-effective and highly practical.
Modular twin screw extruder equipped with super high torque gearbox(available brands including Flender and Henschel from Germany、Zambello from Italy、Local made Changxin and Zhitian etc.), wear resistant & corrosive resistant barrels and screw elements, high torque shaft and safety clutch, efficient heating and precise control to ensure stable, reliable and long term production.
Raw material are fed into twin screw extruder via accurate LIW feeders separately with high automation and flexibility to adjust formulation, available brands including Kubota、Brabender、K-Tron、Schenck、Colotronic and Local made Lingood、Transcell etc.
High-efficiency and energy-saving motors can maximize the conversion of electrical energy into mechanical energy. The W21 Magnet drive system is composed of a permanent magnet motor and inverter with Super Premium IE4 (GB1) efficiency and Ultra Premium IE5 efficiency, which is perfectly suitable for speed regulation, low Applications with stringent requirements such as precise rotational speed control, low noise and compact design, available brands including WEG、Siemens, it can be low voltage, 6kV or 10kV.
Automatic underwater pelletizing system can produce round pellet with high automation, the closed system has no emission of smoke and dust to environment and can adapt to various capacity requirements, available brands including ECON、BKG、Gala, Local made CGC、Ronghong etc.
Various kinds of downstream equipments realize homogenization, sieving, drying & cooling, automatic packing smoothly.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
