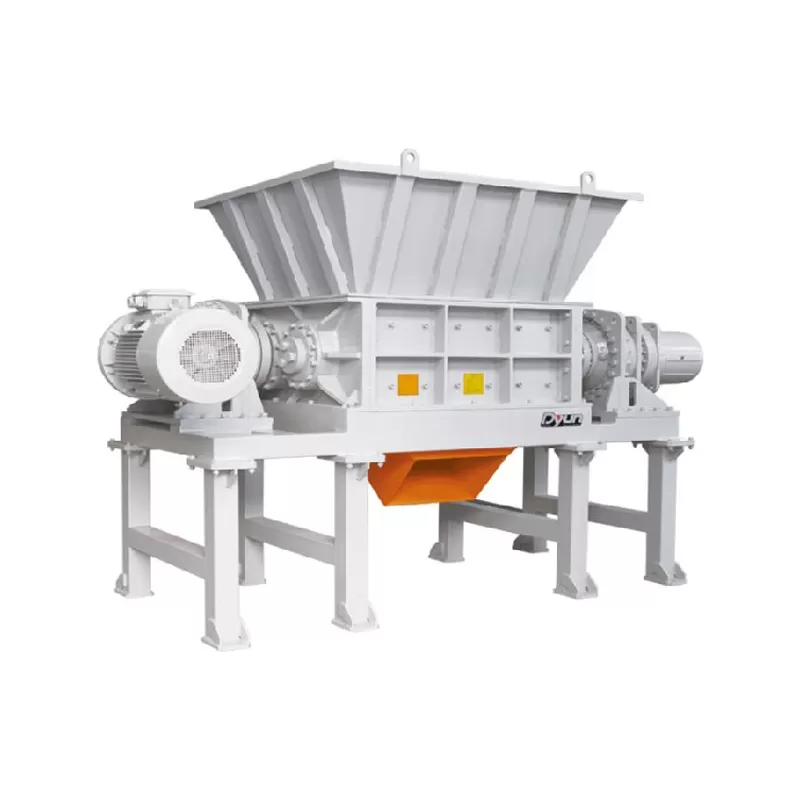

This dual-axis shredder features low noise, low energy consumption and high output with low-speed high-torque shearing. It is ideal for large plastic waste crushing, improves material stacking density to cut transportation costs, and provides qualified materials for subsequent sorting, cleaning and granulation.
Model | Rotor diameter (mm) | Main motor power (KW) | Rotor blade quantity (pcs) | Blade thickness (mm) | Crushing chamber size Max (mm) |
DYTSS-32100 | 430 | 22x2 | 26 | 40 | 1000x800 |
DYTSS-40130 | 514 | 37x2 | 26 | 50 | 1300x950 |
DYTSS-50180 | 615 | 55x2 | 36 | 50 | 1800x1200 |
This series of dual axis shredders has the characteristics of low noise, low energy consumption, and high output. It fully embodies the advantages of low speed and large torque shear design. This series of shredders is particularly suitable for crushing large-sized plastic materials. By cutting with this machine, the stacking density of materials can be increased, thereby reducing transportation costs. In addition, further processing can be carried out on the material after crushing, such as material separation, cleaning, and granulation.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
