During the trial run, the production line achieved an output of 2,200 kg/h, with a wall thickness deviation of 6.8% and an ovality of 1.2%. The quality of the pipes produced met standard requirements, and all on-site inspection indicators exceeded the standard values. The production line operated stably, with no failures during 50 hours of continuous operation, demonstrating the high reliability and stability of the equipment.

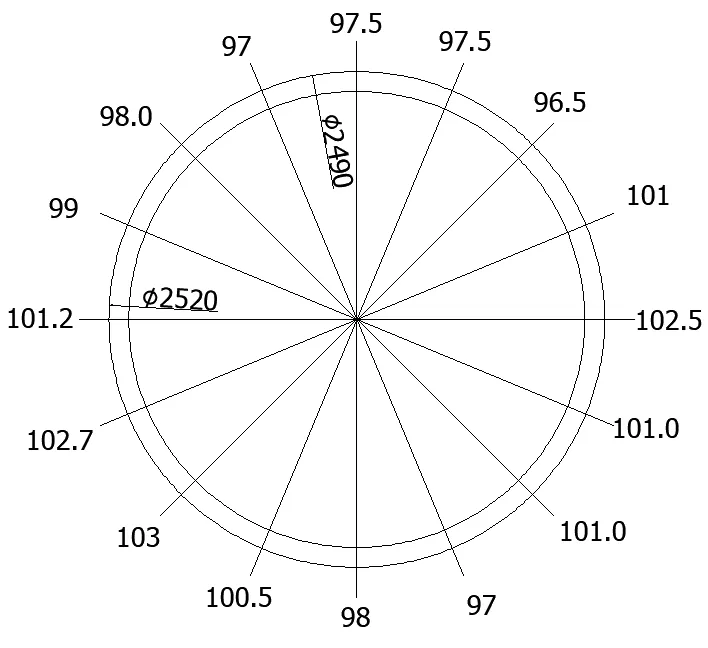

Trial run data and charts: Displaying production data, process parameter tables, and wall thickness data charts, data analysis concluded that the DN2700 PE pipe production line has high production efficiency, with an average hourly output of approximately 2,200 kg. The maximum wall thickness deviation is 6.5 mm, less than the standard 10% deviation, and the ovality is 1.2%, less than the specified 1.5%. The line operates stably, with no failures during 50 hours of continuous operation, demonstrating the equipment's high reliability and stability. All on-site inspection indicators exceed standard values.
The total energy consumption per ton is 346.14 KWH/t. The integrated control system with cost calculation function allows customers to grasp the production status of the production line and the production cost per meter in real time, and adjust the production process according to the actual production situation to keep the equipment at the optimal cost point, saving costs for users.

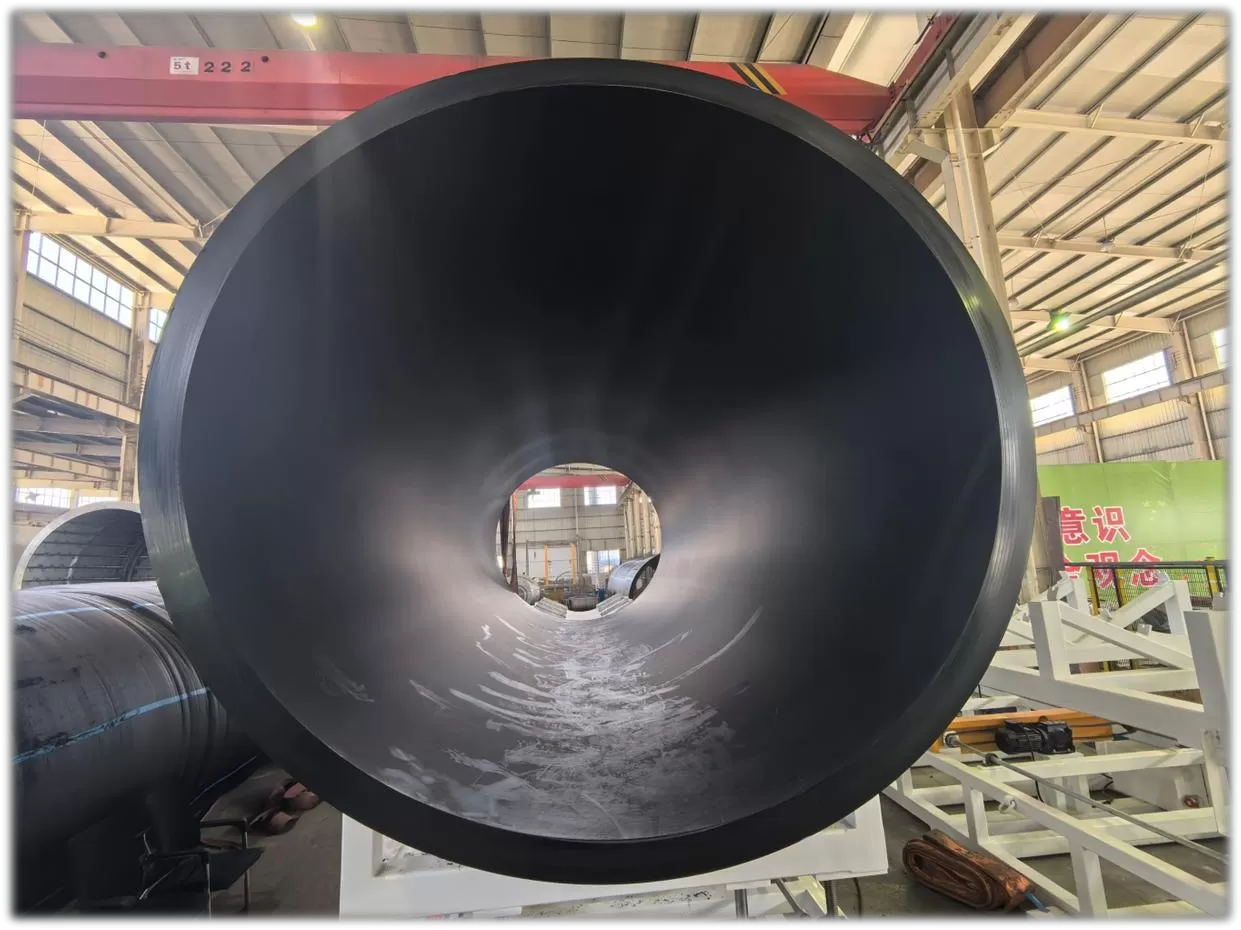

The quality of the produced pipes meets standard requirements, with all on-site inspection indicators exceeding standard values. The production line operates stably, with no failures during 50 hours of continuous operation, demonstrating the high reliability and stability of the equipment.At the same time, the company prioritizes quality and reliability during the design and manufacturing of the equipment, rigorously controlling every step to ensure high standards of quality and performance.In addition, the company provides comprehensive after sales service and technical support, promptly resolving any issues encountered during use and ensuring the normal operation of the equipment.

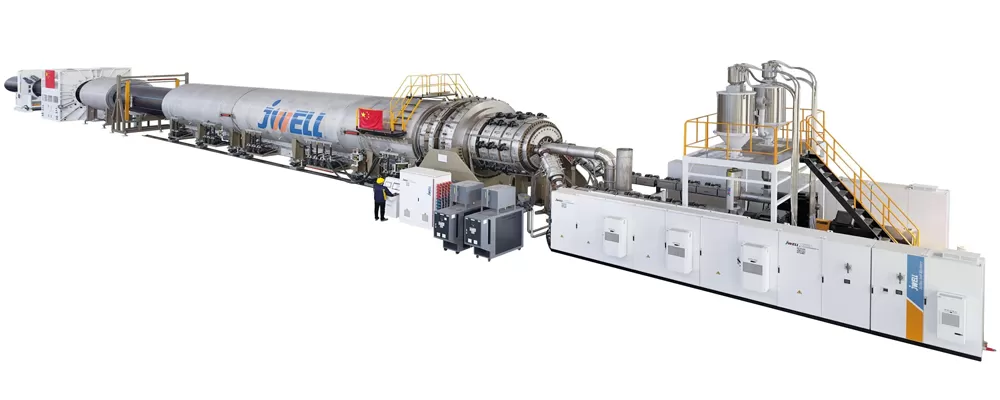

Extruder type: JWS-H120/38,Single screw extruder,450KW Motor
Extruder output: 1500-1700 kg/h;
Production line output: 3000-3400 kg/h;
Production speed: 0.01-0.26 m/min.
Diameter range: φ2200 mm - φ3000 mm;
Wall thickness: Maximum 150 mm
Date: 2025
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
