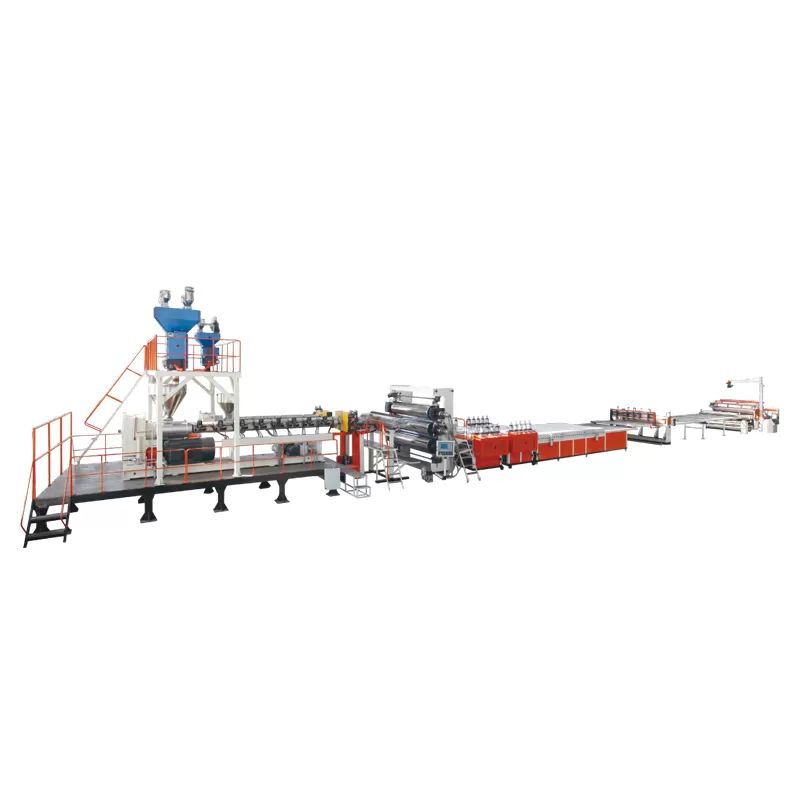

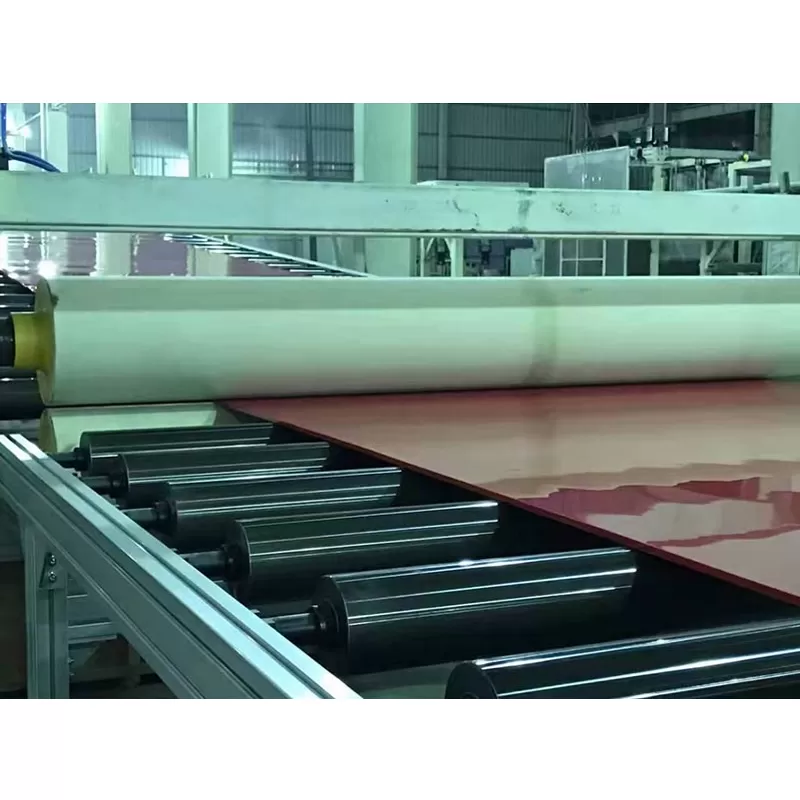

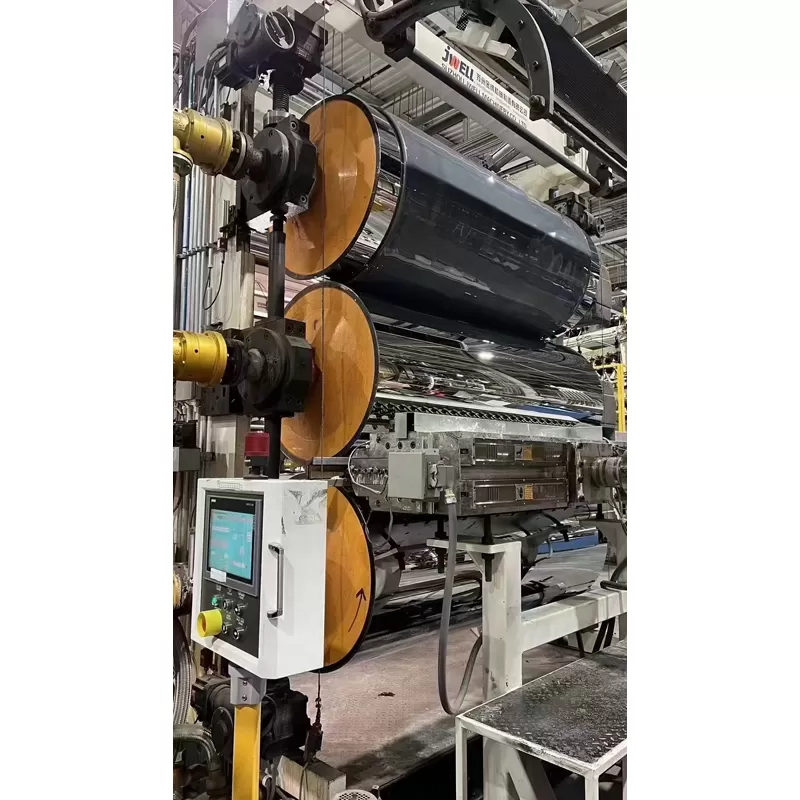

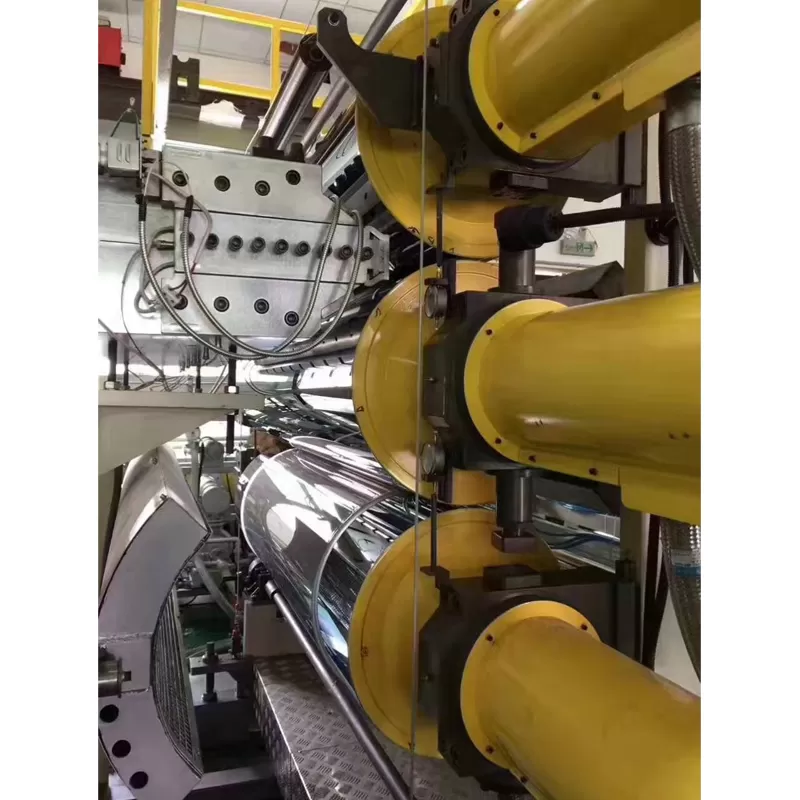

This equipment supports 24-hour continuous operation with high output, suitable for large-scale industrial production. It adopts precision extrusion die and three-roll calender for uniform thickness and flat surface. The special screw eliminates internal stress and avoids deformation. The coat-hanger die ensures even melt distribution. With gravimetric feeding and PLC control, it realizes digital management. Servo synchronized cutter achieves clean and precise cutting without secondary trimming.
Technical Parameter of PP, PE, ABS, PVC, PVDF Thick Plate Extrusion Line
Model
W150/120/90-1800
JW15060-1200
JW130/60-1000
JW120-1000
JW100-800
Width
1500mm
1000mm
900mm
800mm
600mm
Thickness
0.3-2mm
0.3-2mm
0.3-2mm
0.2-2mm
0.1-0.8mm
Capacity
800-1000kg/h
800kg/h
550-600kg/h
350-400kg/h
200-250kg/h
Designed line speed
60m/min
40m/min
30m/min
25m/min
20m/min
Calendar diameter
Φ900mm
Φ700mm
Φ600mm
Φ500mm
Φ400mm
Application of PP, PE, ABS, PVC, PVDF Thick Plate Extrusion Line

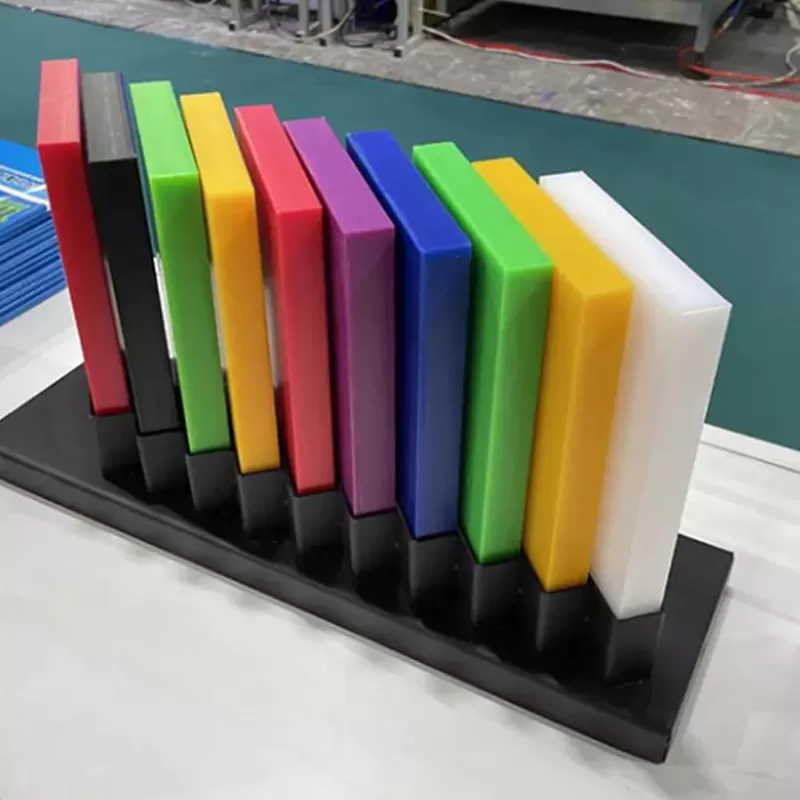

PP thick plate, is a kind of environmental protection products, 2000mm wide PP thick plate extrusion line is a newly developed production line, which is the most advanced and stable production line among similar products.

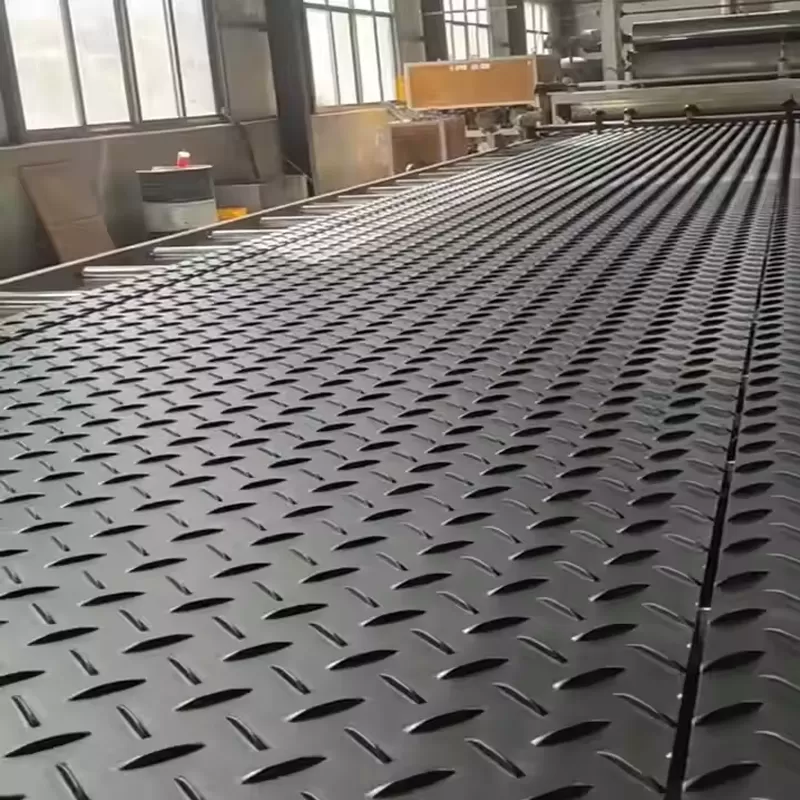

PE plate is widely used in chemical industry, electric power and other industries. HDPE sheets, known as engineering plastics, are used in machinery chemical equipment and the hockey hoop wall.
ABS thick plate is widely used in household appliances, electronics, packaging, medical equipment and other industries. Rigid PVC thick plate is widely used in chemical industry, petrol, electroplating, water purification equipment, environmental protection equipment, light box, advertising and other industries.
