CFRTP is a high-performance recyclable composite with thermoplastic resin matrix and continuous fiber reinforcement, featuring high strength, rigidity and toughness. CFRTP-UD unidirectional tape is a single-layer sheet with parallel 0° fibers, produced via melt impregnation. Its width ranges from 300–1500mm and supports customization.

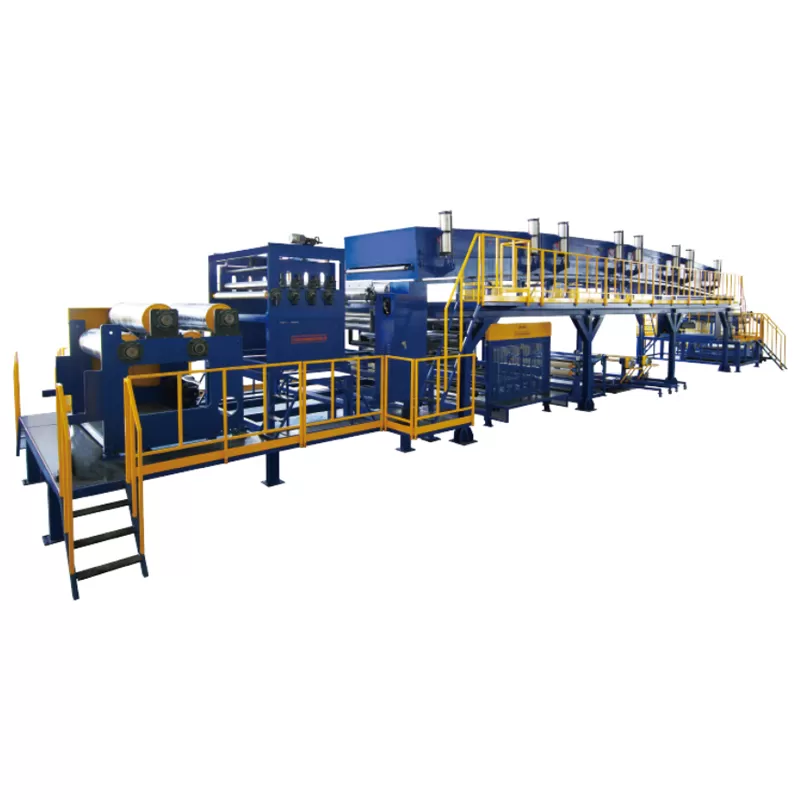

Unidirection Prepreg Tape Composite Extrusion Machine
CFRTP (Continuous Fiber Reinforced Thermoplastic composites) is based on thermoplastic resin as matrix and continuous fiber as reinforcement material, a new type of thermoplastic composite material with high strength, high rigidity, high toughness, and recyclable that is formed through resin melt impregnation, extrusion and other processes.

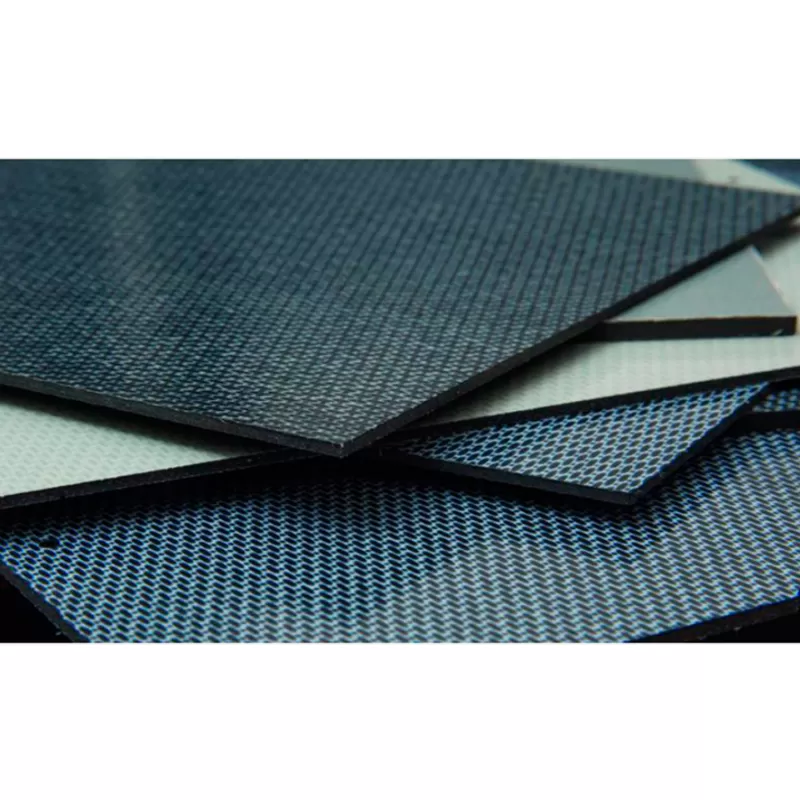

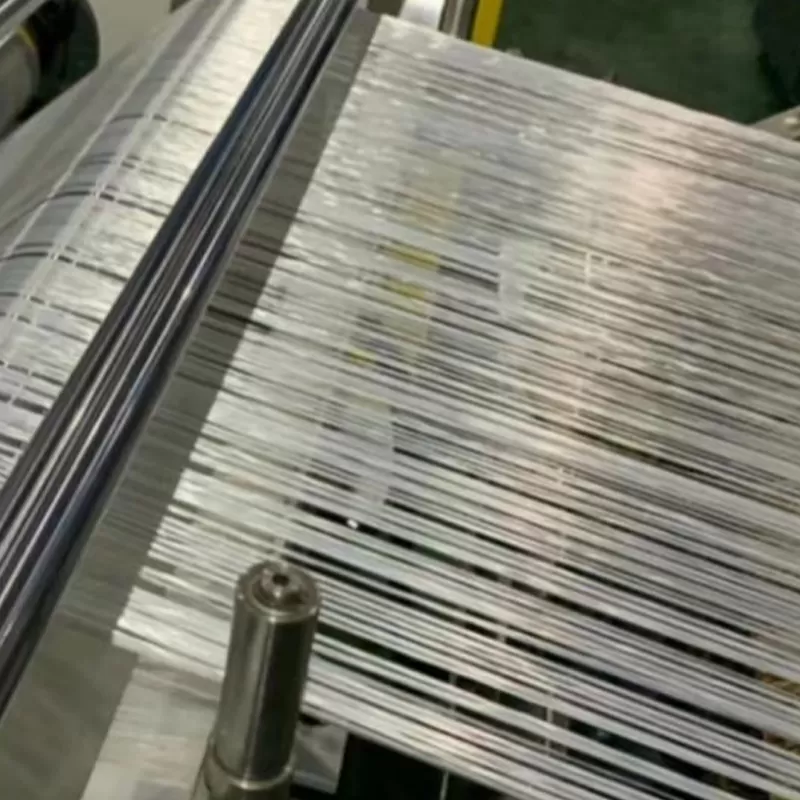

CFRTP-UD Unidirectional Tape: CFRT unidirectional tape is a single-layered, fiber-reinforced thermo plastic composite sheet in which the continuous fibers are unrolled and laid and impregnated with a thermoplastic resin. It is characterized by fibers arranged parallel to each other (0° direction) without interlacing. Product width 300-1500mm, can be customized.
① Basic resins: PP, PE, pet, pa6, PPS, peek, etc.
② Fiber type: glass fiber, carbon fiber, aramid fiber, basalt fiber and other high strength fibers.
③ Thickness of products: 0.1-0.45mm.
④ Product width: 50-1500mm.
⑤ Product surface density: 100-650gsm.
⑥ Fiber content of products: 40% - 70%.
⑦ Traction speed: 5-25m / min.
Main application areas: medical equipment, automotive interior and exterior trims, thermoplastic winding pipes, sports leisure, electronic communication, home building materials, transportation logistics.

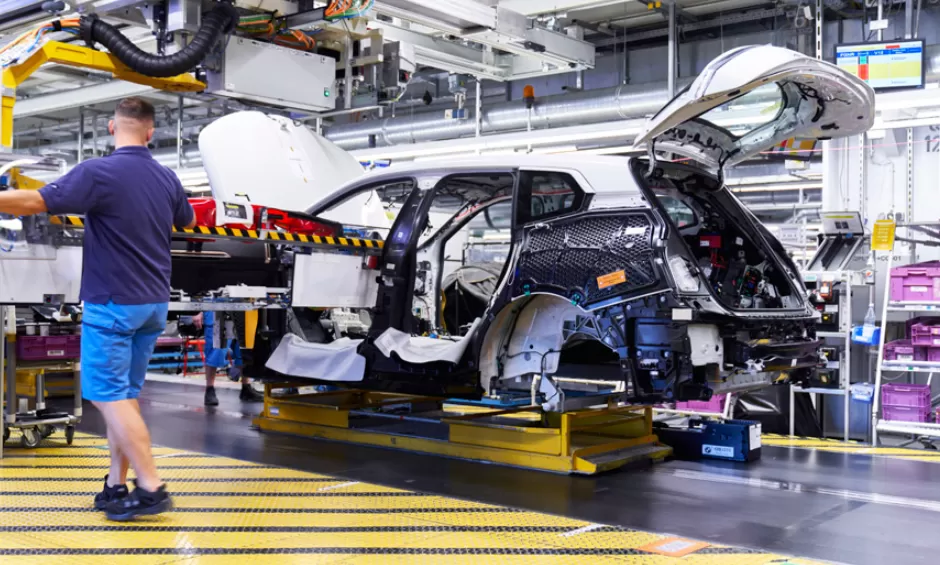

Transportation logistics: floor&inner liners and roof panels of rail vehicles, interior and exterior automotive trim, sleeper carriages, truck compartments, ship decoration panels, container liners and roof panels, etc.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
