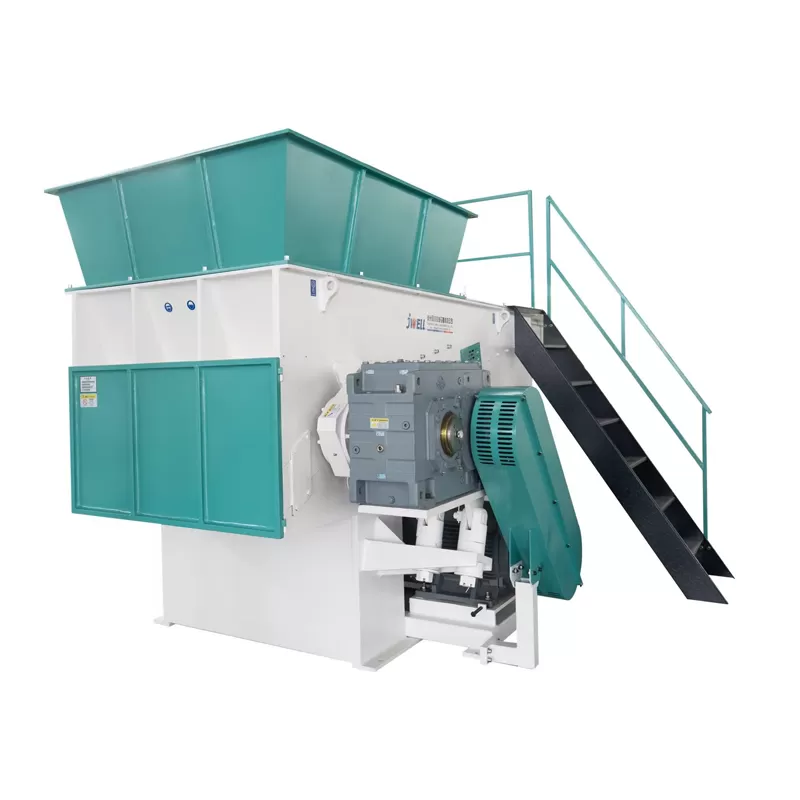

DYSSJ series shredder has the advantage of its strong push rod and the clever combination of heavy directional bearings to make the operation safe and reliable. Fully automatic crushing process, with beautiful design visual material window, can arbitrarily observe crushing effect and crushing dynamic process. At the same time DYSSJ series models can be designed according to the needs of different feeding hopper, suitable for batch feeding hopper can optimize production, because the pusher can continue to be crushed material pushed to the rotor, improve crushing efficiency, and will not cause too much feeding problems.
Technical Parameter of Single Shaft Shredder Machine
Model
Crush Chamber max size (mm)
Main motor power (KW)
Rotor blade quantity (pcs)
Fixed blade quantity (pcs)
Rotor speed (RPM)
DYSSJ-850
700*730
37
60
3*2
37
DYSSJ-1500
800*1290
75
102
5*2
37
Application of Single Shaft Shredder Machine
All DYSSJ models have a standard pusher plate, which is more convenient for crushing large solid bodies or pallets, wood, etc.

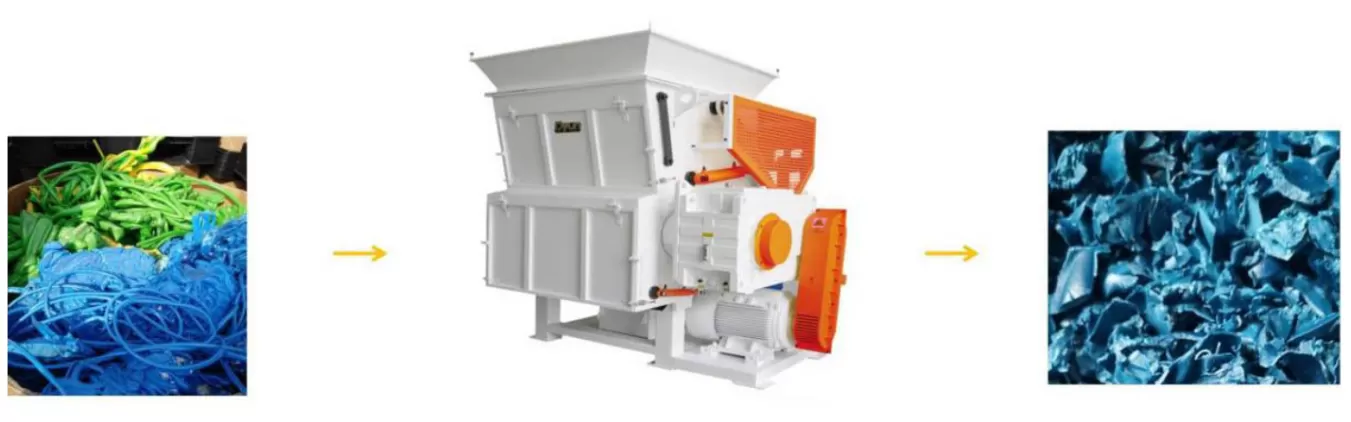

Advantage of Single Shaft Shredder Machine

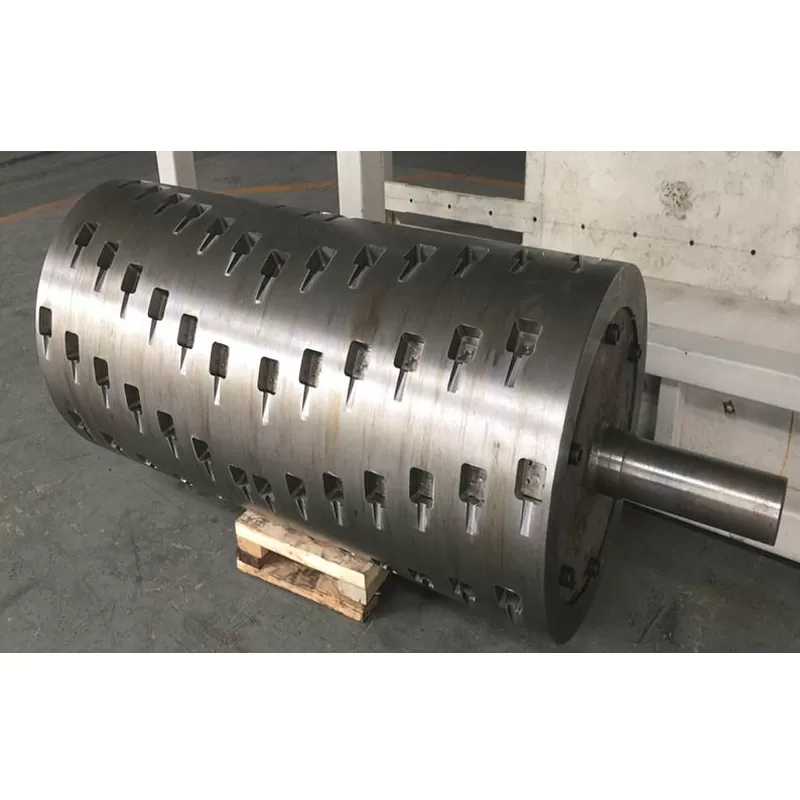

Customers can choose different knife roller structures according to their needs for crushing different materials, which can maximize the crushing capacity and quality, and at the same time extend the service life of the equipment.
The crusher box has three opening and closing methods: manual hinge, electric screw, and hydraulic cylinder for customers to choose from.

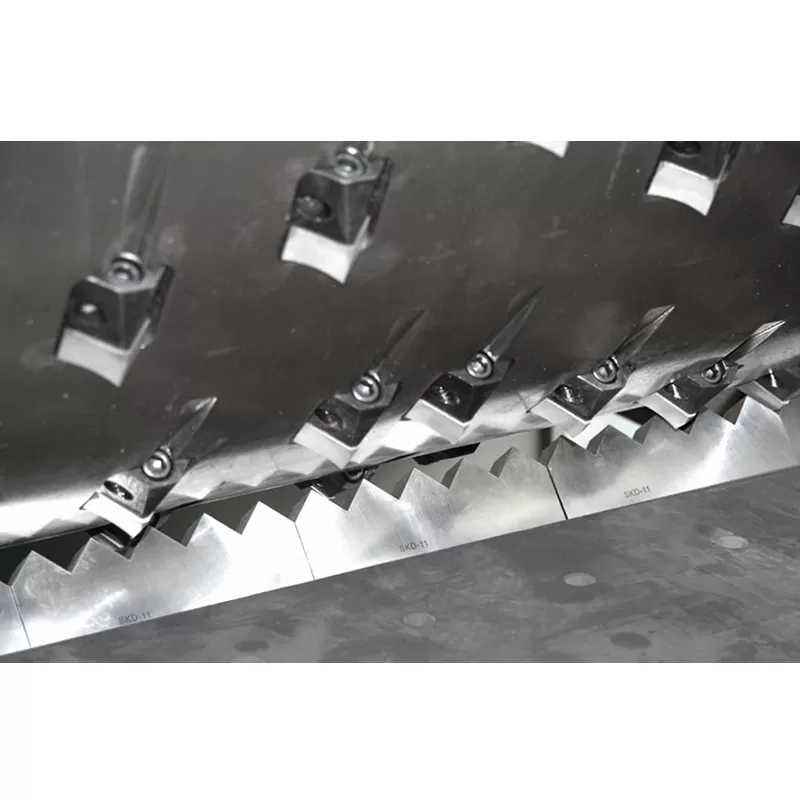

The knife blades are available in a variety of materials and are suitable for a variety of materials for customers to choose: Cr12MoV (D1), Cr12Mo1V (SKD11), Cr12Mo1V1 (D2), DC53
Feeding hopper, cutter and filter can be separated with easy opening and cleaning
The machine adopts high hardness steel template, so it very soild and durable.
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience.
