PVC-O, The name for biaxially oriented polyvinyl chloride pipe is the latest evolution of PVC pipe. The pipe is manufactured through a special orientation processing technology (biaxially oriented stretching technology). The PVC-U (M) pipe produced by extrusion method is subjected to axial and radial stretching, so that the PVC long-chain molecules in the pipe are arranged in a regular manner in the biaxial direction, resulting in a new type of PVC pipe with high strength, high toughness, high impact resistance, and cracking resistance.
Technical Parameter of 400mm PVC-O Plastic Pipe Extrusion Line Biaxial Stretching PVC Pipe Extruder Machines
Diameter Range (mm)
Equipment model
Motor Power
Capacity Kg/hr
Ø90-250
SJP78/33
45KW
300
Ø110-315
SJP93/37
79KW
450
Ø160-400
SJP93/37
79KW
500
Ø315-630
SJP114/37
118KW
800
Ø450-800
SJP114/37
118KW
900
Ø630-1000
SJP135/37
173KW
1200
Ø800-1200
SJP135/37
173KW
1450
Advantage of 400mm PVC-O Plastic Pipe Extrusion Line Biaxial Stretching PVC Pipe Extruder Machines
PVC-O pipe compared with ordinary water supply PVC pipes, it has the following advantages:
Strong impact resistance and point load capacity.
Strong low-temperature resistance.
Lighter weight, energy-saving, and large water delivery capacity.
Material saving, greatly reducing usage costs
Long service life and corrosion resistance. The service life of PVC-O pipe can reach up to 50 years, which is twice that of ordinary PVC-U pipes.

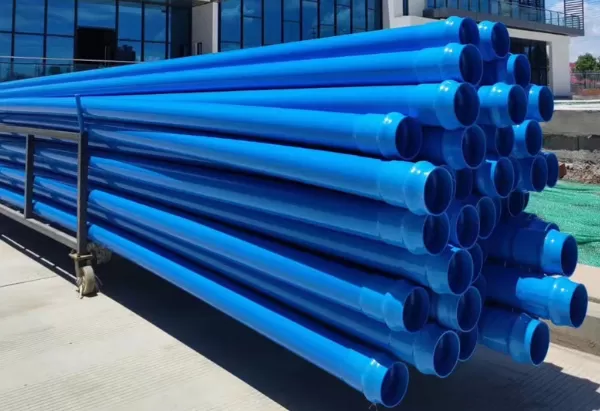

Application of 400mm PVC-O Plastic Pipe Extrusion Line Biaxial Stretching PVC Pipe Extruder Machines
PVC-O pipes are widely used in fields such as municipal water supply and drainage,agricultural irrigation,mining pipelines,and trenchless installation and rehabilitation.Their excellent performance and cost-effectiveness have enable them to stand out in market competition.
Videos of 400mm PVC-O Plastic Pipe Extrusion Line Biaxial Stretching PVC Pipe Extruder Machines
Related 400mm PVC-O Plastic Pipe Extrusion Line Biaxial Stretching PVC Pipe Extruder Machines
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
