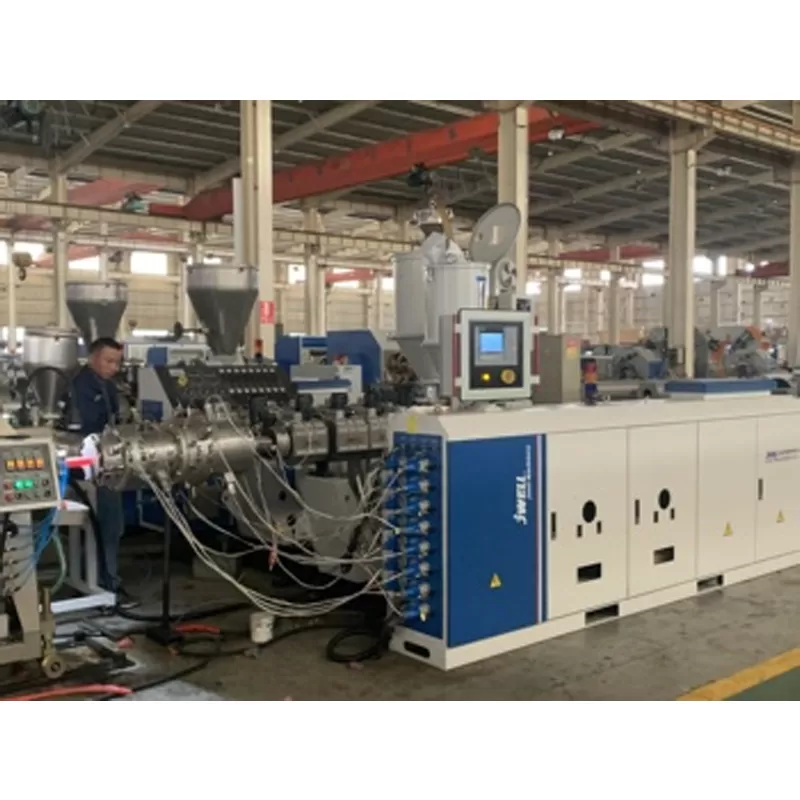

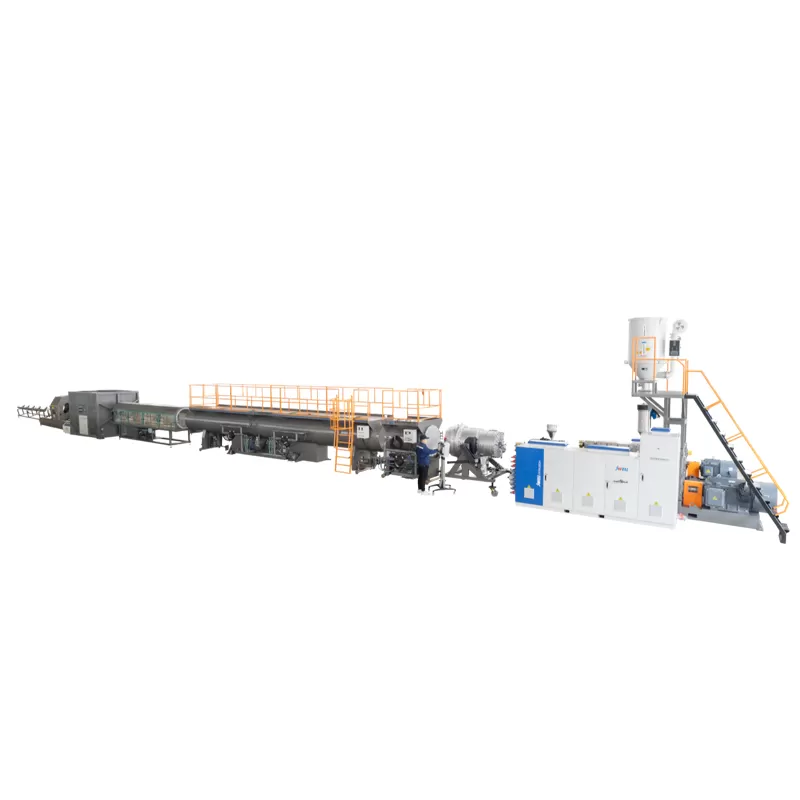

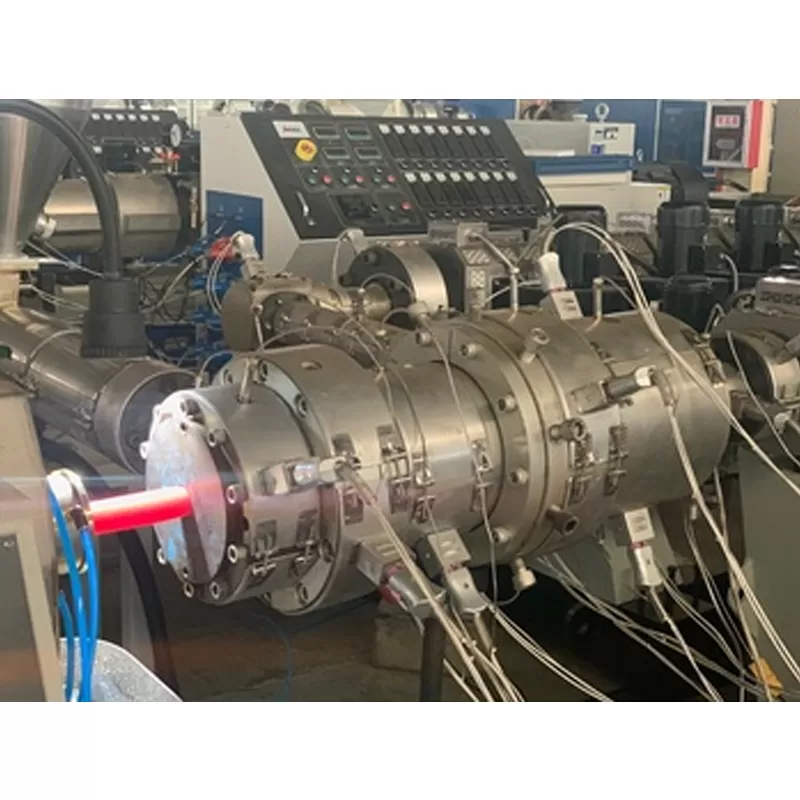

Glass fiber reinforced PP-R (FR/PP-R for short) pipe is a high performance pipe produced at low temperature and high speed by multi-layer co-extrusion through special technology and equipment developed by Jwell. It features of unique structure, advanced configuration, high degree of automation and easy operation. The extruder screw adopts BM high-efficiency type, high output, good plasticization, nice stability and reliability.
Type | Diameter(mm) | Extruder | Capacity(kg/h) | Power (kW) |
JWPEG-63 | 20~63 | JWS65/33 | 100-150 | 100 |
JWPEG-110 | 20~110 | JWS65/33 | 150-200 | 130 |
JWPEG-160 | 63~160 | JWS65/33 | 200-250 | 145 |

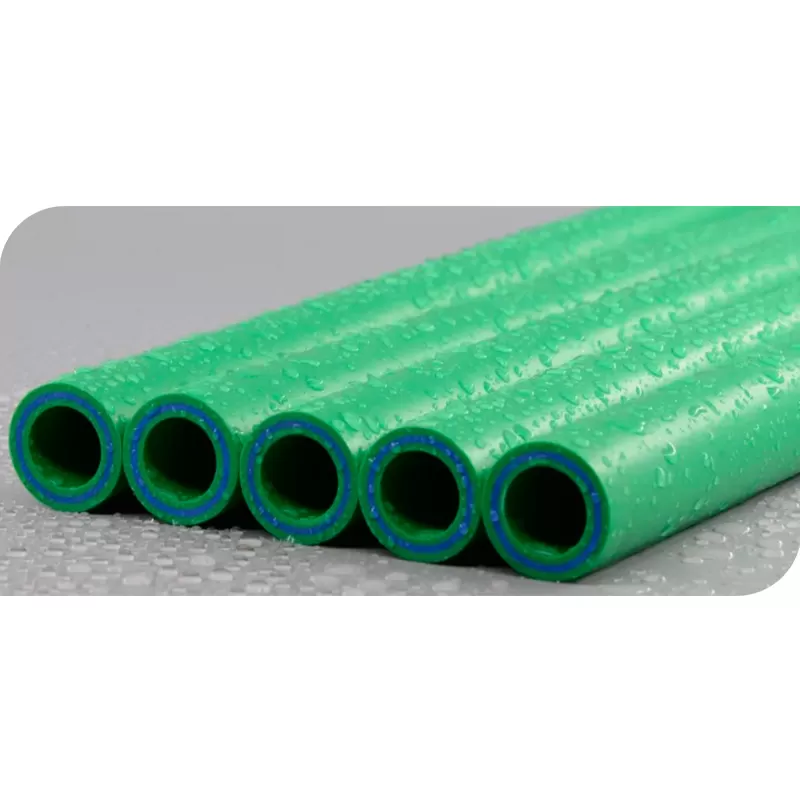

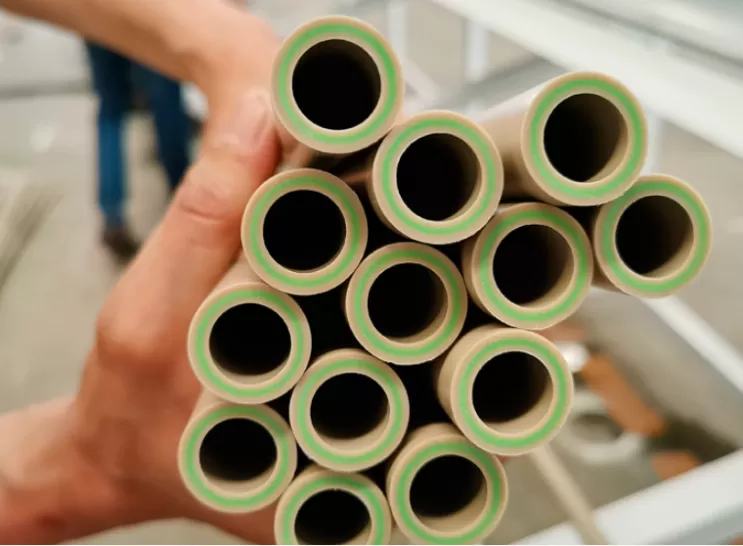

The PPR fiberglass reinforced pipe are mainly used for drinking water delivery，Hot and cold water transport. On the basis of maintaining the advantages of the original PP-R product, the product also has the following
The linear expansion coefficient is only about 20~30% of the ordinary PP-R product; Completely solve the problem of plastic pipe expansion
The rigidity of the pipe is enhanced to prevent the sagging phenomenon of the pipe. At the same time, the density and number of fixed support points are reduced, so as to reduce the comprehensive cost of the project
Higher pressure class, longer service life under the usual design of tremor force
4. Better high temperature resistance, energy saving and consumption reduction effect; Fr/PP-R application in hot water system, normal use temperature can reach 95~100, not only improve the use of medium temperature, but also reduce the thickness of insulation material, its comprehensive cost is lower
Large water flow: under the same level of pressure, the wall thickness of FR/PP-R pipe increases the inner diameter of the pipe, thus increasing the water flow (increase by 20%).
With its unique advantages, PPR glass fiber pipe has been widely used in petroleum, electric power, chemical industry, new energy, urban water supply and drainage, factory sewage treatment, seawater desalination, gas transmission and other industries.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
