This large-diameter pipe shredder handles pipes up to 1600mm without pre-cutting, with horizontal hydraulic feeding and two-stage crushing. PLC-controlled, it features high output, low energy consumption and low noise. With robust sealed bearings, safe emergency design and wide applicability for various plastic waste.
Model | Rotor effective width (mm) | Main motor power (KW) | Shreddable pipe dia max (mm) | Out put (kg/h) |
DYSSG-630 | 848 | 2x30 | 630 | 800-1000 |
DYSSG-800 | 1028 | 2x37 | 800 | 1000-1200 |
DYSSG-1000 | 1258 | 2x45 | 1000 | 1200-1500 |
DYSSG-1200 | 1478 | 2x55 | 1200 | 1500-2000 |
DYSSG-1600 | 1968 | 2x110 | 1600 | 1800-2500 |
DYSSG shredder can be used to shred the PE, PP, PVC pipe with a diameter of 1600MM, and pipes with a length of 3-6M can be directly shredded without cutting, and the speed is slow and stable.

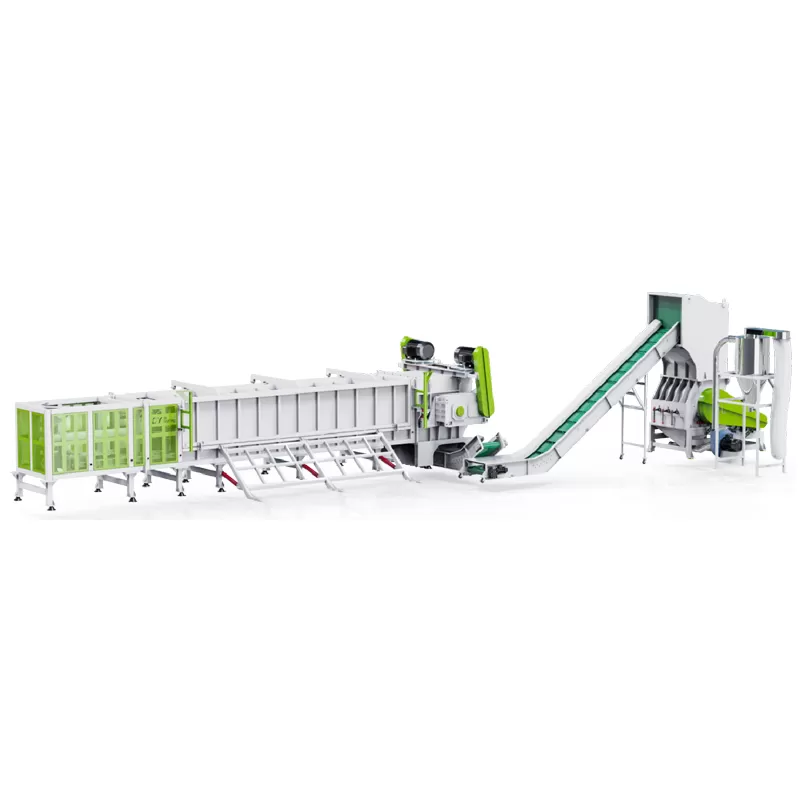

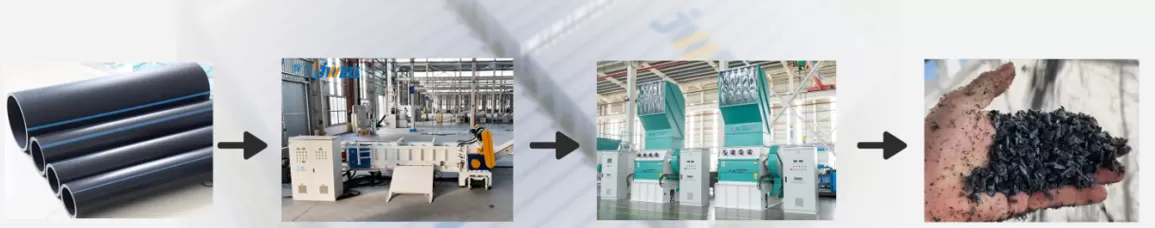

All kinds of pipe directly shred,without splitting, put the pipe into the horizontal feeding groove, feeding groove automatically closed, the pipe is pushed to the center of the shaft, through hydraulic propulsion crushing. After crushing the material through the conveyor belt into the crusher for secondary crushing, to complete the required crushing particle size. The material can be fully and effectively finely crushed in the crushing chamber, with high output, low energy consumption, high efficiency and uniform discharge finely crushed. And in the use of the equipment, low noise, no pollution, simple operation, convenient maintenance. The whole system is controlled by PLC centralized control system.

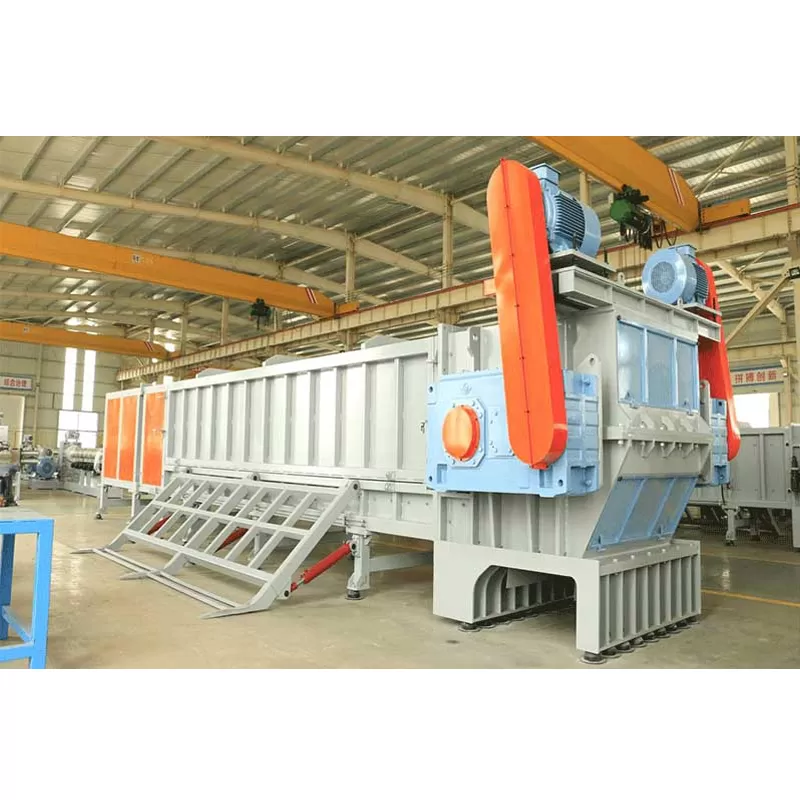

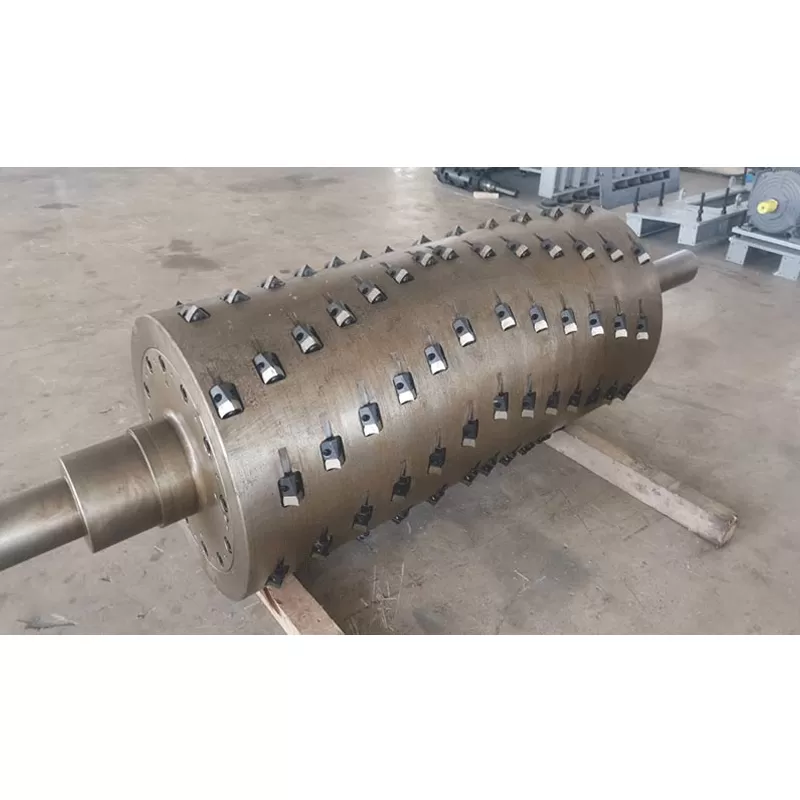

The Dyun Large Diameter Pipe Shredder is specially designed for handling large diameter pipes (up to 1600mm diameter) without any need for pre cutting. The Dyun rotor diameters range from 848mm to 1968mm and the standard hopper can accept lengths up to 6m. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. The Dyun shredder range can also be used to shred bundles of small diameter pipes and profiles, lumps, stacked wheelie bins, buckets & pallets, etc.
The hydraulically operated ram feeds the material horizontally in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.
A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
