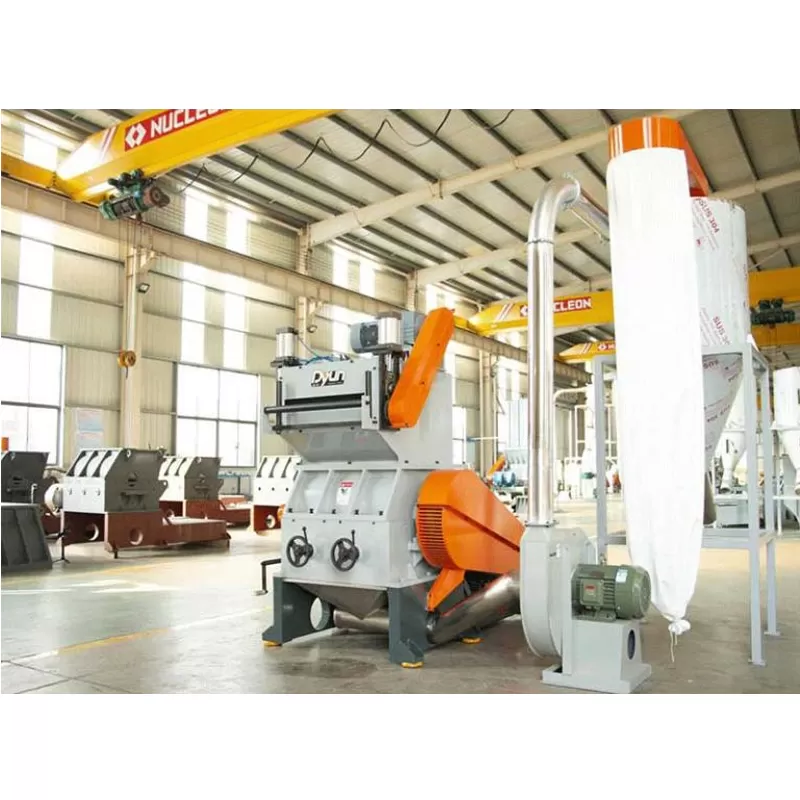

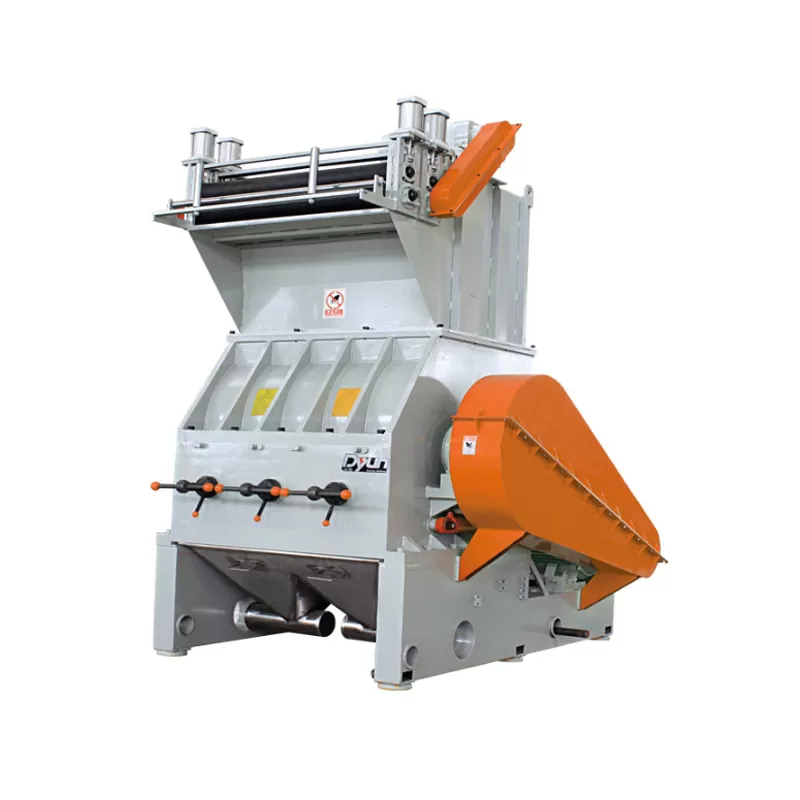

Equipped with traction device and pneumatic pressure rollers, this crusher reaches 30m/min linear speed for higher efficiency. Its balanced main shaft, V-shaped cutting and water cooling prevent material overheating. Optimized tool structure boosts cutting capacity for hard thick materials, with optional dust removal and aggregate suction systems.
Model | Feed size(mm) | Main motor power (KW) | Haul off power(KW) | Rotor effective width (mm) | Out put (kg/h) |
DYPS-P 1000 | 960*300 | 37-45 | 4 | 1000 | 400 |
DYPS-P 1200 | 1160*350 | 45-55 | 5.5 | 1200 | 500 |
DYPS-P series crusher is used to solve the problem of recycling and crushing of wide PP/ABS/PMMA sheets, plates and foamed coils with a thickness of 0.2~3mm.
Compared with the general crusher, this crusher adds a set of traction device, added two sets of pressure rollers, air pressure opening and closing, linear speed up to 30m/min, thereby improving the production efficiency, the main shaft is made of high-quality steel, and has been verified by dynamic and static balance. The "V"-shaped cutting technology and the box water cooling system avoid the phenomenon of overheating and sticking of the material in the crusher cavity. Tool rest optimization design, claw knife can be dispersed by strength, so that the shear knife of each blade increases, suitable for crushing thick material, hard material block material head, effectively improve the cutting force of the tool, reduce the problem of tool wear. According to the customer's requirements, it provides a complete set of aggregate suction unit and dust separation device, which is more convenient to use.

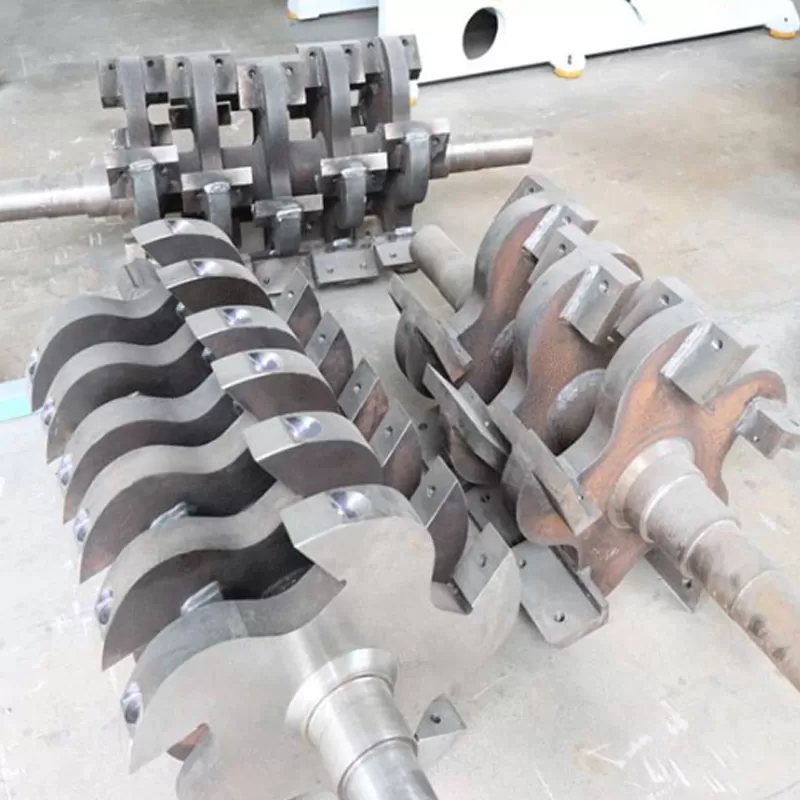

Customers can choose different knife roller structures according to their needs for crushing different materials, which can maximize the crushing capacity and quality, and at the same time extend the service life of the equipment.
The crusher box has three opening and closing methods: manual hinge, electric screw, and hydraulic cylinder for customers to choose from.
The knife blades are available in a variety of materials and are suitable for a variety of materials for customers to choose: Cr12MoV (D1), Cr12Mo1V (SKD11), Cr12Mo1V1 (D2), DC53
Feeding hopper, cutter and filter can be separated with easy opening and cleaning
The machine adopts high hardness steel template, so it very soild and durable.
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience.
