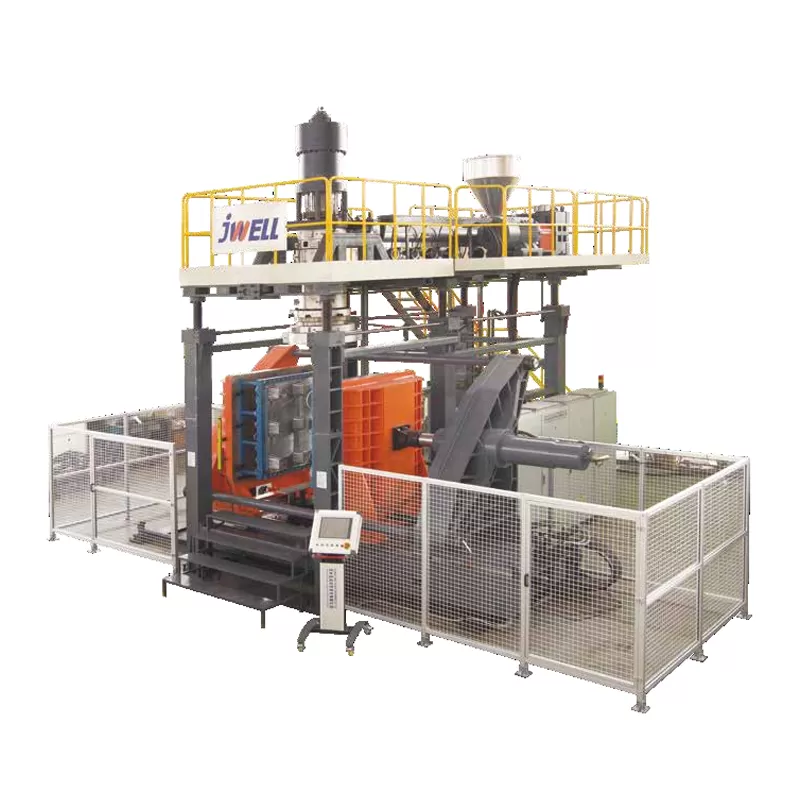

This IBC ton barrel blow molding machine produces 1000L industrial containers for chemical, food and pharmaceutical storage. Featuring premium wear-resistant extruder screws, high-precision parison control and intelligent HMI, it is equipped with optimized dies, stable transmission system and flexible parameter adjustment for efficient container molding.
Model | Unit | BM2000 | BM2000F |
Die head structure | Accumulating Type | ||
Main screw diameter | mm | 150 | 120*2 |
Max. plasticizing capacity (PE) | kg/h | 750-850 | 800-900 |
Driving motor | kW | 185 | 132*2 |
Accumulating volume | L | 75 | 120 |
Oil pump motor power | kW | 54.5 | 54.5 |
Clamping force | KN | 1200 | 1300 |
Max. space between platen | mm | 750-1950 | 750-1950 |
Platen size W*H | mm | 1600*1800 | 1600*1800 |
Max. mould size | mm | 1400*1800 | 1400*1800 |
Heating power of die head | kW | 79.6 | 101 |
Machine dimension L*W*H | m | 10.2*8.6*7.3 | 12*9.5*7.8 |
Machine weight | T | 50 | 62 |
Total power | kW | 365 | 480 |

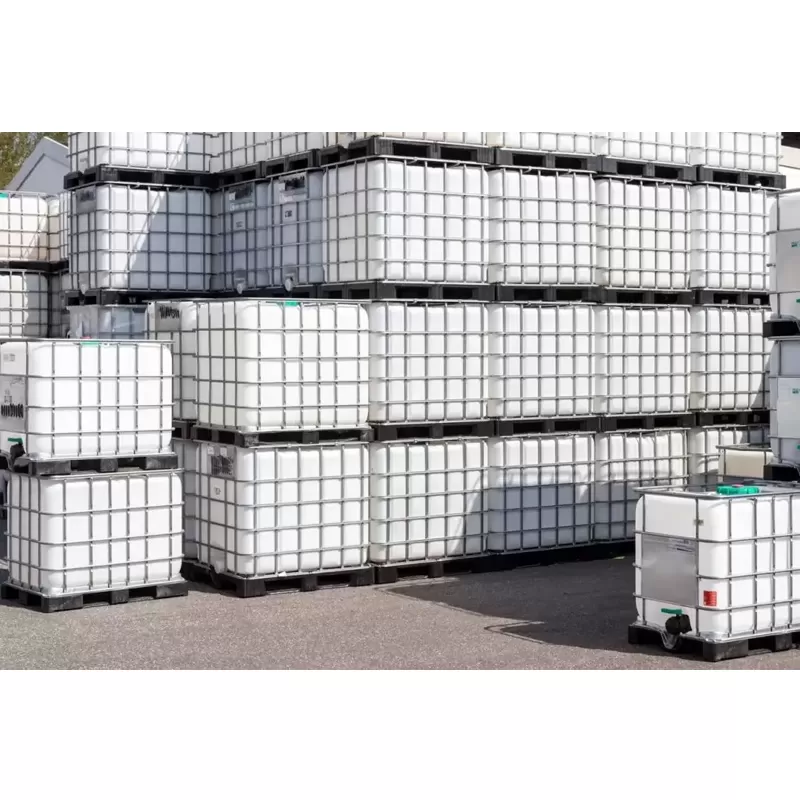

The IBC tote—short for Intermediate Bulk Container—is a common type of industrial storage vessel. Typically, it consists of three main components: an outer metal cage, an inner plastic liner, and a discharge valve located at the base. With a standard capacity of approximately 1,000 liters—precisely enough to hold one metric ton of liquid—it is colloquially known as a "ton tote." Widely utilized across industries such as chemicals, food processing, and pharmaceuticals, it serves as an invaluable tool for the transportation and storage of liquid raw materials.
Robust Structure: The protective metal cage encases the plastic liner, offering exceptional resistance to impact.
Convenient Handling: The bottom-mounted valve design facilitates easy and effortless liquid discharge.
Space Efficiency: Its square-shaped profile optimizes storage utilization, saving more warehouse space compared to traditional round drums.
1. Jwell will offer clients dieheads with smooth extrusion, careful design, precise processing and good after-sale service. In order to meet differert demands of the polymer materials, different layer structures and other special demands, all the dieheads are designed by modern three dimensional designing softwares, so the channel of thermo-plastics is the best one for the customers.
2. Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer, can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
3. The extruder uses screw and barrel, which is a famous brand JWELL all over the world. It has advantages such as high output, smooth plastization, wearable and long life. The gear box is the kind of product speacially used for plastic extrusion.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
