The plastic barrels and hollow trays produced by Jwell Pallet Blow Molding Machine have smooth surface, uniform wall thickness, and no pitting or impurities. Welcome to consult large hollow blow molding machine equipment.
Core components such as screw barrel, material storage die, template, frame and hydraulic system are all produced and processed by our company. Strict inspection processes are conducted from raw material selection, processing process flow design and heat treatment to ensure equipment stability.
Technical Parameter of BM500/1000 Pallet Blow Molding Extrusion Machine
Model
Unit
BM500
BM1000
Die head structure
Accumulating Type
Main screw diameter
mm
120
135
Max. plasticizing capacity (PE)
kg/h
350-450
550-650
Driving motor
kW
132
160
Accumulating volume
L
45
45
Oil pump motor power
kW
54.5
54.5
Clamping force
KN
1200
1200
Max. space between platen
mm
750-1950
750-1950
Platen size W*H
mm
1600*1600
1600*1600
Max. mould size
mm
1400*1600
1400*1600
Heating power of die head
kW
57.4
57.4
Machine dimension L*W*H
m
9.6*5.6 * 6.5
9.6*5.6*6.5
Machine weight
T
45
45.5
Total power
kW
265
294
Advantage of BM500-1000 Pallet Blow Molding Extrusion Machine
1. High bearing capacity: when the blowing pallet and wooden pallet are the same weight, the load capacity of blow molding pallet is five- fold as much as wood pallet, which has improved the bearing capacity of the pallet and reduce the use of pallet. It improves the efficiency and cut the cost. What is more, the dynamic load of blow molding pallet is up to2 tons and the static load is 4 tons.
2. Long service year: It got a long service life, which can be used for more than 5 years in general; it can take up to 2 years in bad condition. It is 4-5 times of wooden pallet, about 2-3 times of injection pallet.
3. Specificity: They divided in two forms, about single face and double-faced. According to different bearing capacity requirements, its weight can be controlled in production, which is reduce the cost of materials. It is suitable for all industries, such as food, beverage, pharmaceuticals industry and other industries, it also can be customized for special requirements according to different factories.
4. High security: non-combustion, non-conductive, non-static, non-skid and no other auxiliary connection. That can ensure the safety of goods and operators.
5. Good quality: the blow molding pallet is strong in toughness and shatter-resistant. If it falls from the place that 3 meters high, it will be safe. Even if it hits by the forklift, it will not be broken.
6. Economical: That can be used recycled plastics, JWELL JWZ- BM500/1000 molding machine can be multi-purpose. It will help customers reduce investment costs, and it has low mold cost.
7. Environmental protection: the blow molding pallet is non-toxic, tasteless and anti-corrosion. Then the waste pallet can be recycled and utilized, this is good for the environment.
Application of BM500-1000 Pallet Blow Molding Extrusion Machine

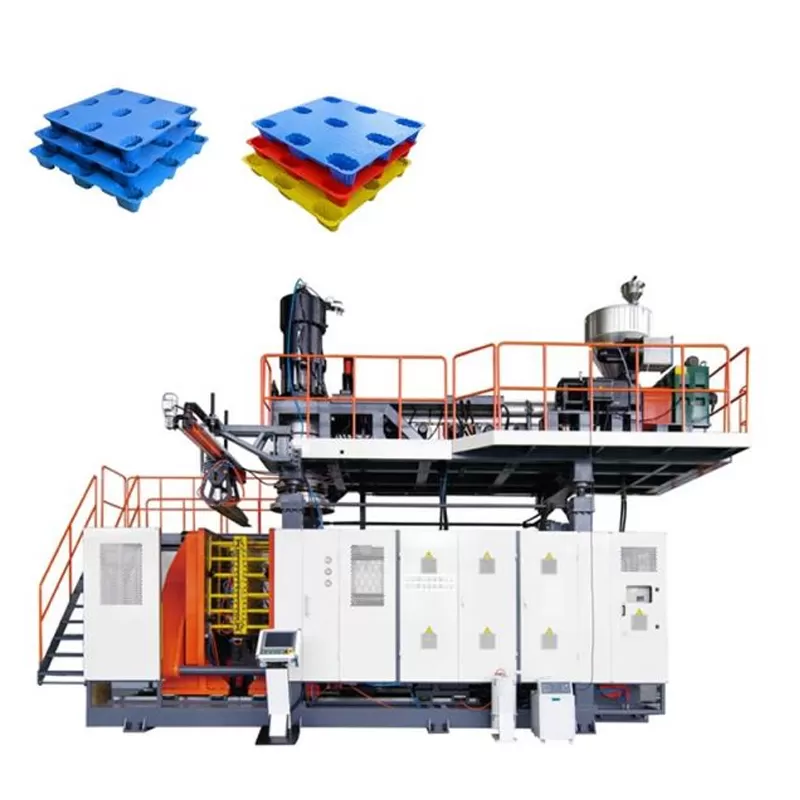

This BM500/1000 pallet blow molding machine is suitable for the production of blow molding trays, pallets, boards, tables and panels of various specifications. It adopts high-yield technical systems, storage type dies, hydraulic servo control systems and automation programs.

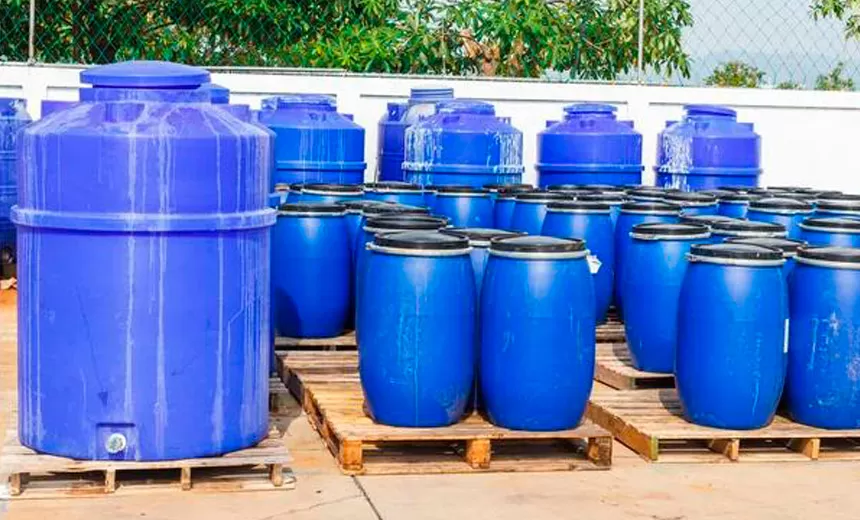

This machine is also Suitable for producing 500-1000L big size chemical revolving barrel. Adopt high output extrusion system, accumulating type die head, hydraulic servo controls system. We have rich experience in the production, commissioning and service of large-scale storage type blow molding machines.

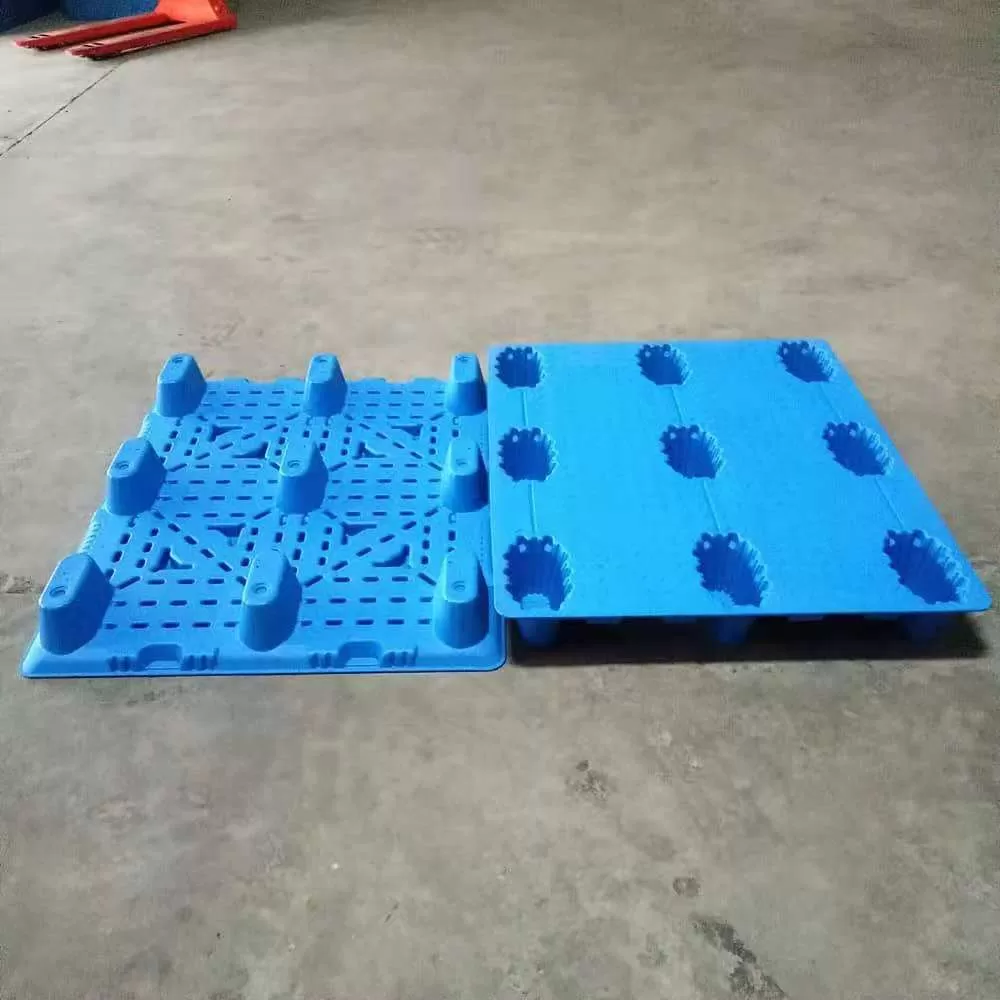

Suitable for producing different kinds of pallets.
Optional bottom sealing, product eject,core-pulling movement elements.
Adopt high output extrusion system, accumulating die head.
Hydraulic Servo control system.
Videos of BM500/1000 Pallet Blow Molding Extrusion Machine
Related BM500/1000 Pallet Blow Molding Extrusion Machine
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
