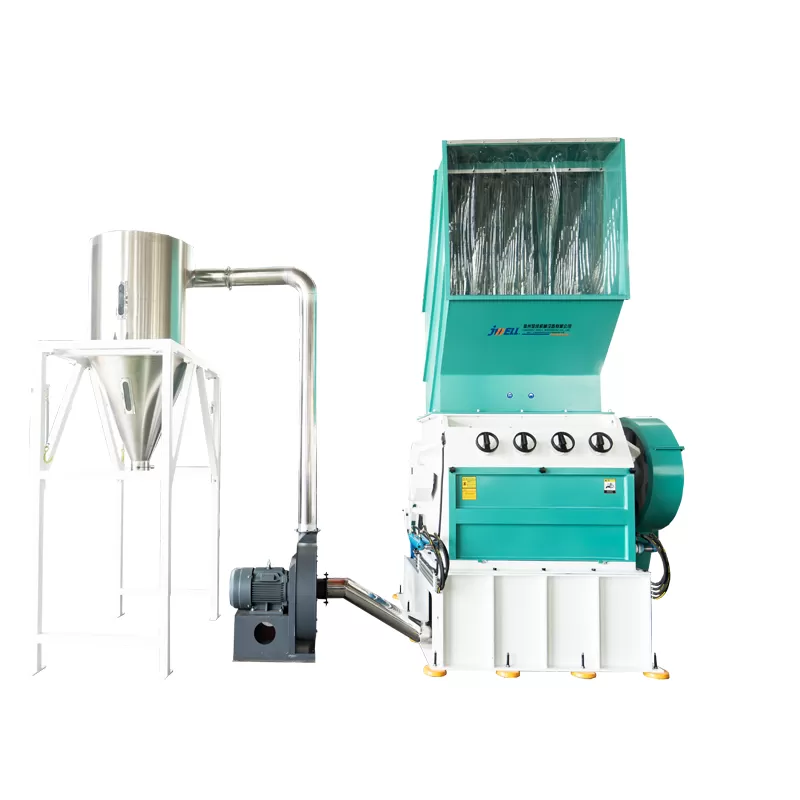

This crusher features a thick welded steel cabinet with high strength and durability, supported by hydraulic opening for easy maintenance. Its high-quality steel spindle undergoes dynamic balance treatment. Adopting advanced V-shaped cutting technology, it realizes uniform cutting, energy saving, low noise and stable operation.
Model | Feed size(mm) | Main motor power (KW) | Rotor blade quantity (pcs) | Rotor effective width (mm) | Out put (kg/h) |
DYPS-Z 800 | 800*800 | 37-75 | 6/10 | 400 | 600 |
DYPS-Z 1000 | 1000*1000 | 55-110 | 10/14 | 700 | 800 |
DYPS-Z 1200 | 1200*1000 | 90-132 | 10/14/18 | 800 | 1000 |
DYPS-Z 1500 | 1500*1000 | 110-200 | 14/18 | 1000 | 1200 |
The DYPS-Z series heavy crusher is specially designed to meet the demanding requirements and the recycled material that is not easily crushed, and the thickness is between 3~30m.
Cabinet: The main box adopts solid welded steel structure, precision machining by CNC machine tool. It has the characteristics of large thickness, high strength, strong wear resistance, no pollution and long service life. Equipped with exquisite buckle, fastening durable, scientific design, easy to lift pressure, the upper box can be easily opened, hydraulic device, convenient maintenance.
Spindle: Made of high quality steel, dynamic and static balance, not easy to deform when working, stable working state. Adopting the latest "V" cutting technology, according to the different grinding materials, the rotor can be processed into different quantities. Make the blade in the work to achieve uniform cutting, energy saving and emission reduction, reduce noise.

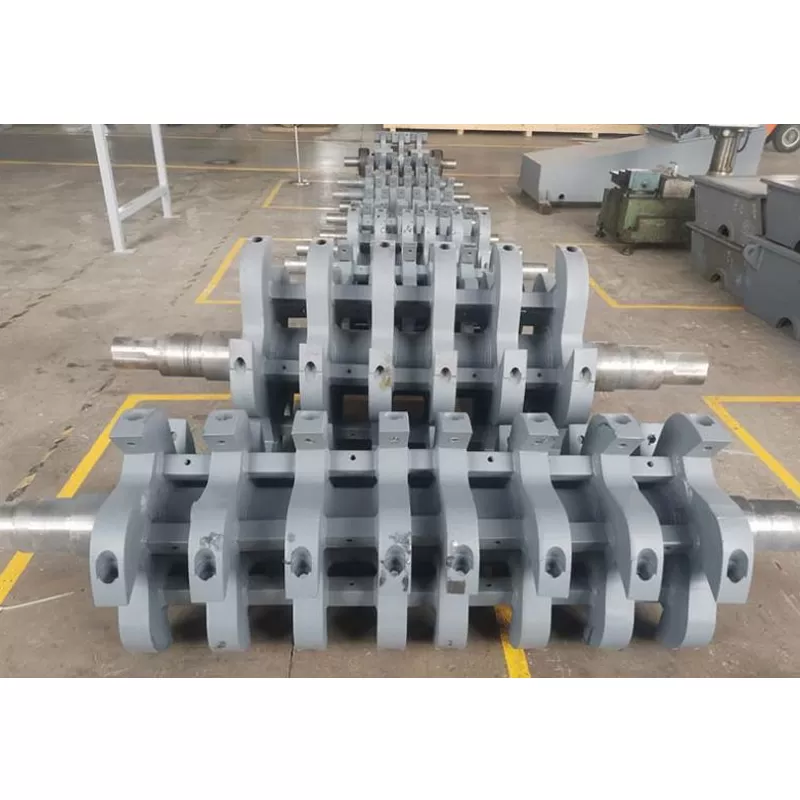

Customers can choose different knife roller structures according to their needs for crushing different materials, which can maximize the crushing capacity and quality, and at the same time extend the service life of the equipment.
The crusher box has three opening and closing methods: manual hinge, electric screw, and hydraulic cylinder for customers to choose from.
The knife blades are available in a variety of materials and are suitable for a variety of materials for customers to choose: Cr12MoV (D1), Cr12Mo1V (SKD11), Cr12Mo1V1 (D2), DC53.
Feeding hopper, cutter and filter can be separated with easy opening and cleaning
The machine adopts high hardness steel template, so it very soild and durable.
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience.
