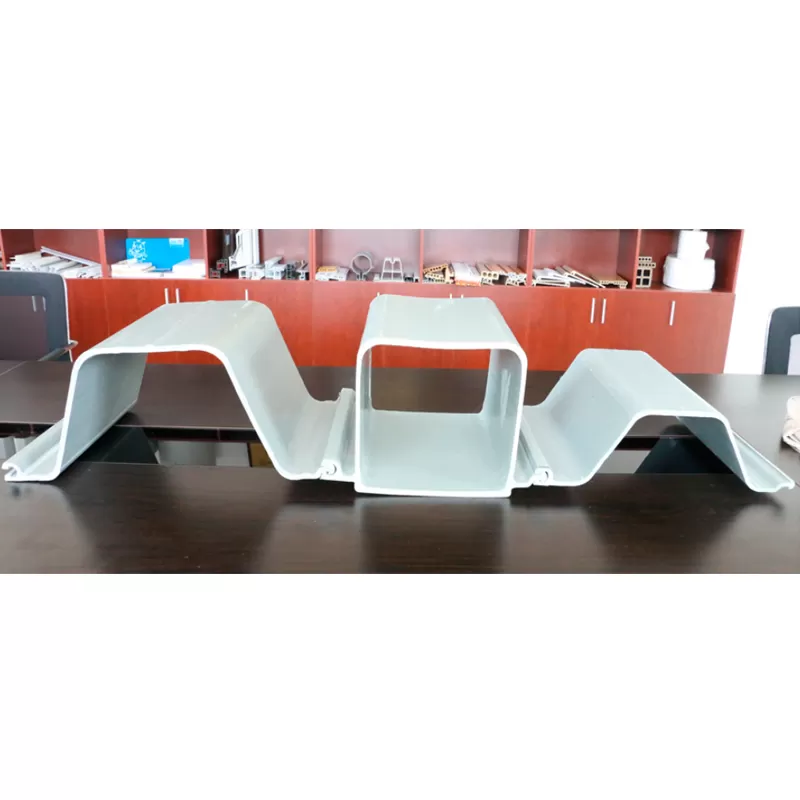

Vinyl sheet pile is an eco-friendly, lightweight and highly corrosion-resistant substitute for steel, concrete and wood. It boasts long durability, low investment cost and convenient quick installation. Widely applied in water conservancy, flood control, agriculture, municipal transportation, marine engineering, foundation pit support and various seepage-proof construction projects.
Model | YF800 | YF1000 | YF1250 |
Max width(mm) | 800 | 1000 | 1250 |
Extruder model | SJZ80/156 | SJZ92/188 | SJZ92/188 |
Extruder power(kw) | 55 | 132 | 132 |
Max capacity(kg/h) | 250-350 | 400-600 | 400-600 |
Cooling water(m3/h) | 12 | 15 | 15 |
Compressed air(m3/min) | 0.8 | 1 | 1 |
Vinyl sheet pile is a lightweight, extremely durable, environmentally friendly, highly resistant to corrosion and advanced alternative to the traditional materials such as steel, concrete and wood. Vinyl sheet piles are used in construction industry more and more widely because of their excellent parameters and the possibility of lowering investment costs. Also, simple and fast installation using standard tools and machinery.

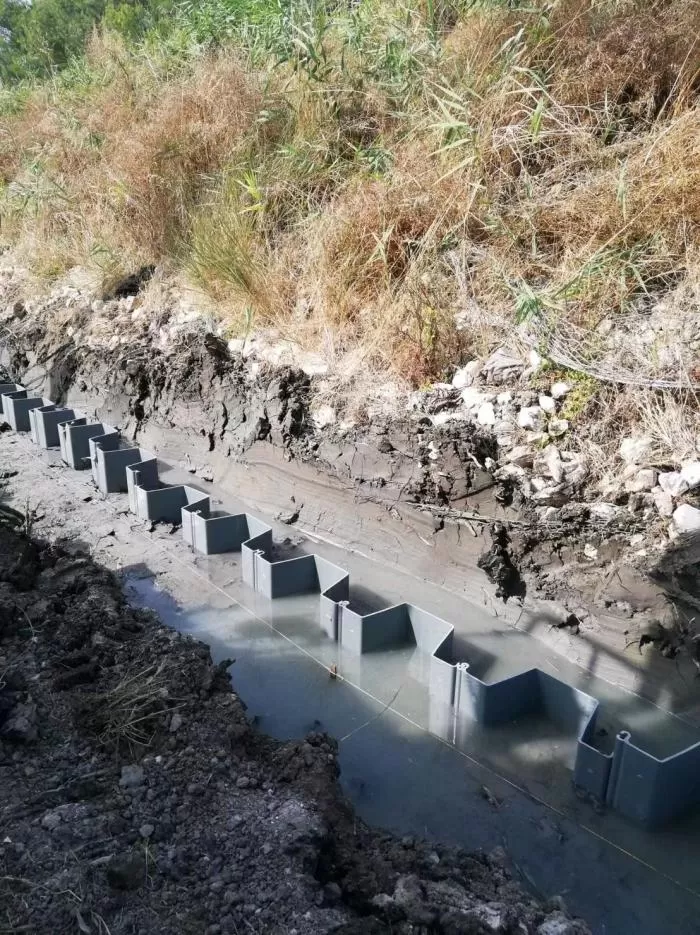

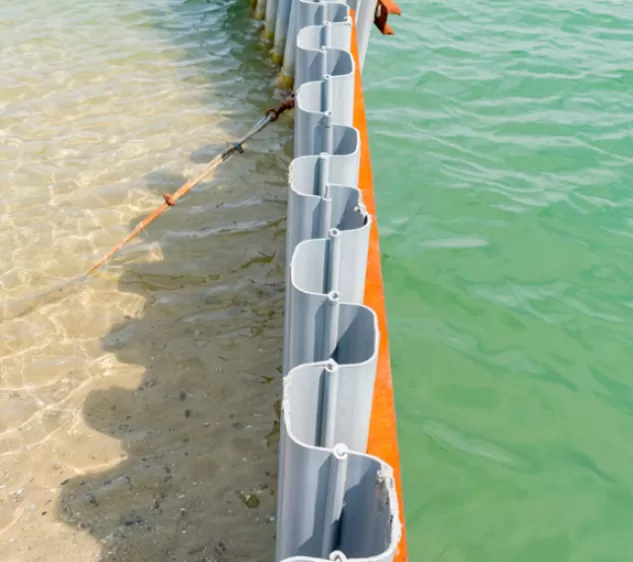

River and flood-land environment projects: soil and water ecological transformation, water barriers, artificial lake banks, river embankment revetment projects.
Disaster prevention and mitigation projects: flood protection system, landslide prevention, leakage prevention, debris flow prevention, wind and sand prevention, etc.
The agricultural land and irrigation project: aquaculture, irrigation channels bulkhead, construction and maintenance of small and medium-sized reservoirs and dams.
Municipal traffic engineering: roadbed protection, tunnel, culvert, pipeline laying, road construction, port wharf, dock construction.

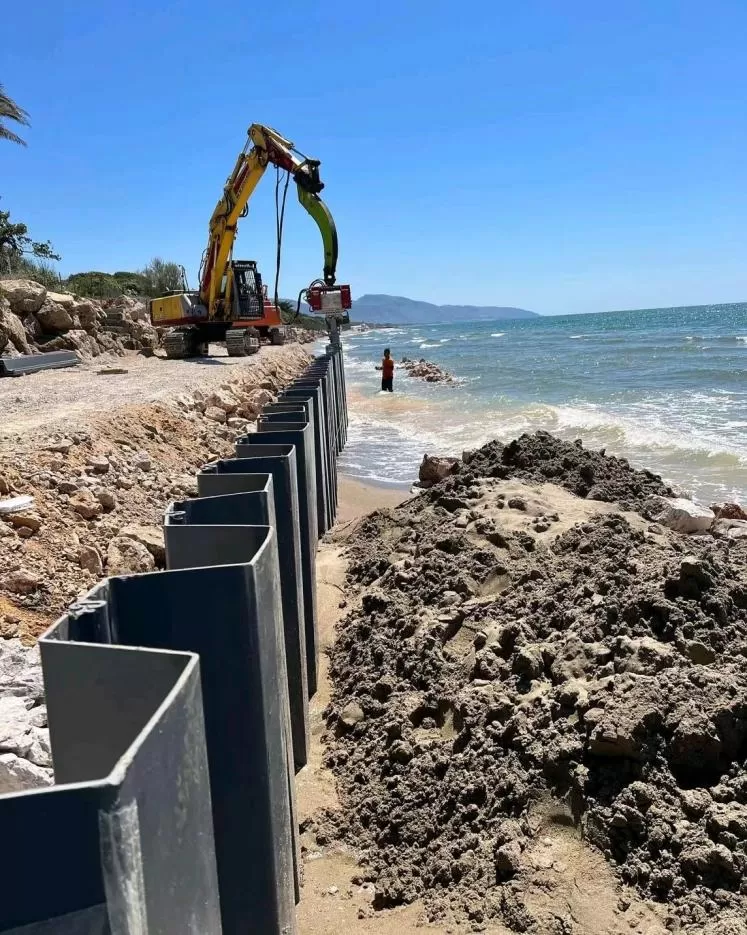

Marine development projects: coastal dam enclosure, seawall construction, breakwater wall, saline-alkali land, foundation enclosure construction of marine aquaculture bases, etc.
Construction engineering: foundation pit support, slope protection, soil retaining, fence, flower pond, anti-seepage wall, water-stop cofferdam, foundation treatment, underground parking lot, sewage treatment, etc.

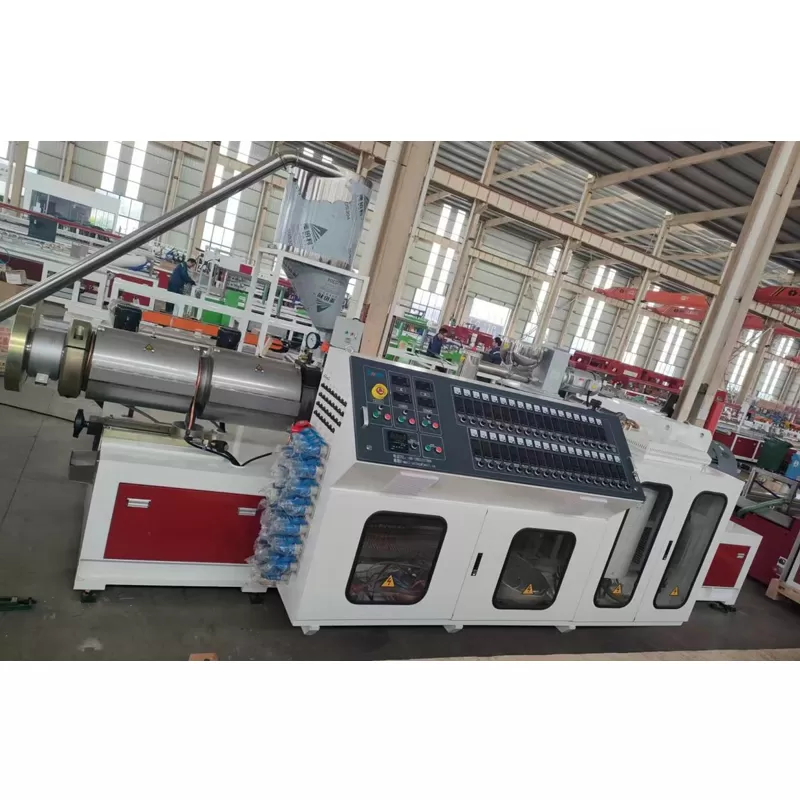

Screw material: alloy steel of high quality 38CrMoAlA, nitrogen treatment, with the thickness: 0.5~0.7mm, the surface hardness: HV740~940.
Adopt high quality components to ensure high performance of extrusion
Gearbox material: 20CrMoTi, teeth hardening, precision gear grind treatment

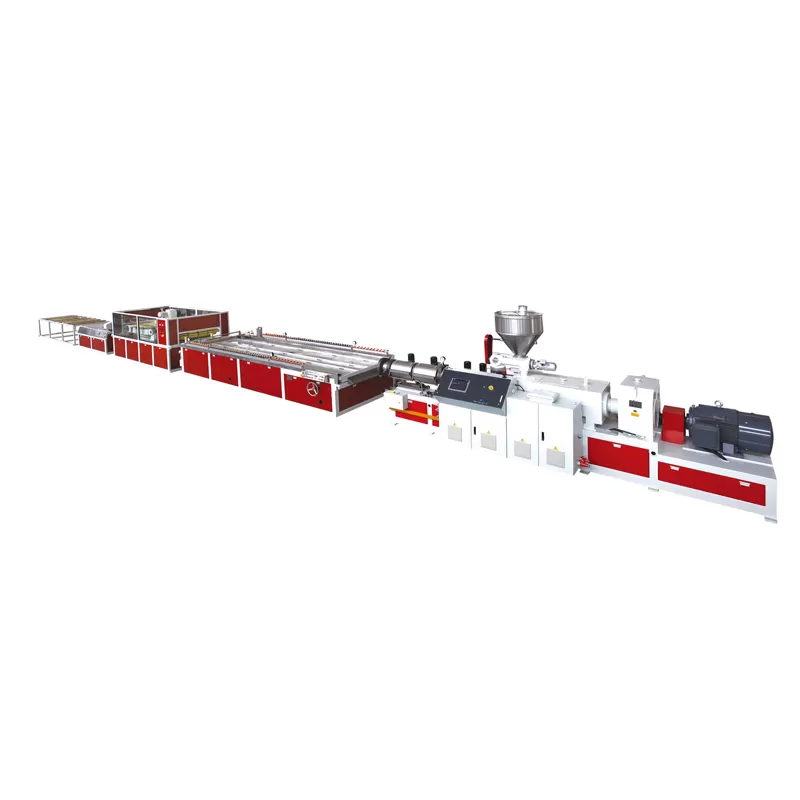

The equipment layout is based on Jwell's 26 years of extruder production experience. The equipment layout is reasonable and compact. The equipment has the advantages of high stability, large output, energy saving, intelligence, and long life.
Equipped with strong power cooling device, good quality calibration molds and high pressure vacuum control system
Calibration table and basin are made of stainless steel
Could be moved by motor or by hand
Two caterpillars driven by two reduction motors
Speed controlled by imported inverter
Independent operation panel, easily adjust the haul off machine
Accurate and fast cutting with dust collector
Circular saw-blade: Alloy steel, specially design for cutting PVC profiles
Manual cutting and automatic cutting choice
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
