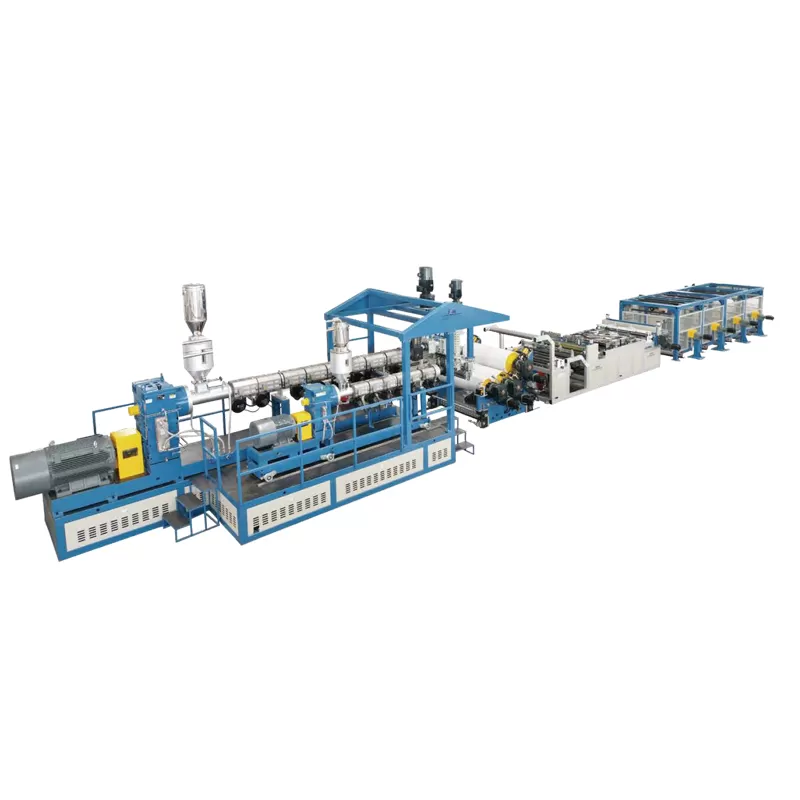

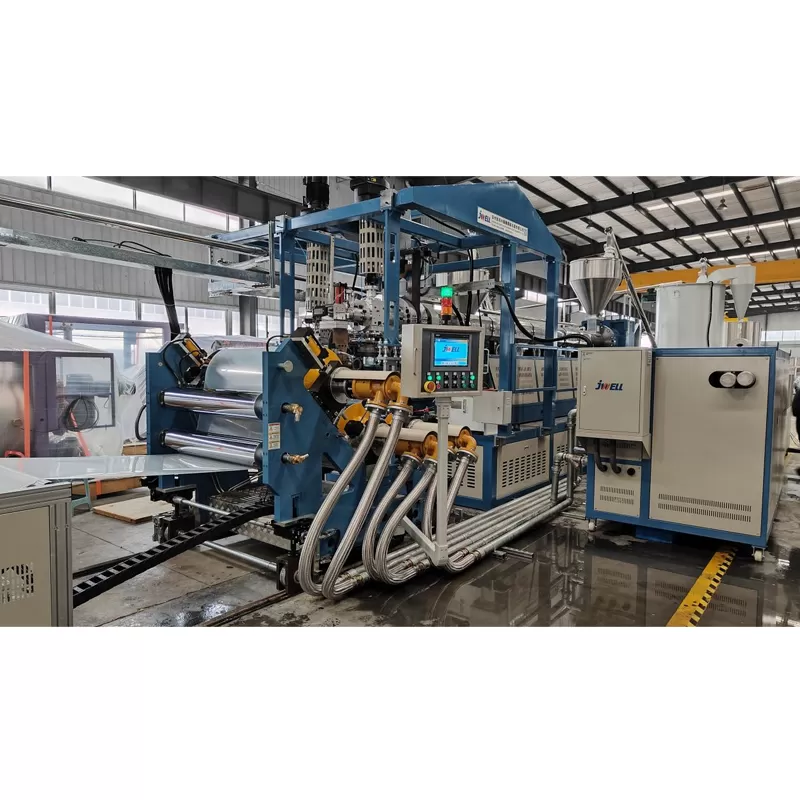

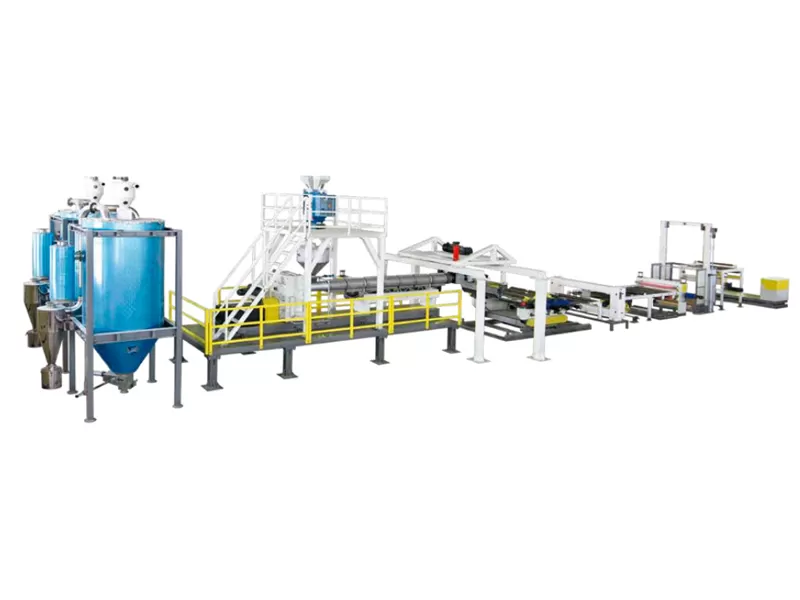

This line features high efficiency with output up to 1,200 kg/h for continuous large-scale production. Multi-layer co-extrusion realizes A/B/A or A/B/C composite sheets, cutting material costs via recycled core or barrier layers. Online gauge and automatic die ensure uniform thickness. Precision three-roll calendering produces transparent, matte or bi-color sheets for diverse demands.
| Model | W150/120/90-1800 | JW15060-1200 | JW130/60-1000 | JW120-1000 | JW100-800 |
|---|---|---|---|---|---|
| Width | 1500mm | 1000mm | 900mm | 800mm | 600mm |
| Thickness | 0.3-2mm | 0.3-2mm | 0.3-2mm | 0.2-2mm | 0.1-0.8mm |
| Capacity | 800-1000kg/h | 800kg/h | 550-600kg/h | 350-400kg/h | 200-250kg/h |
| Designed line speed | 60m/min | 40m/min | 30m/min | 25m/min | 20m/min |
| Calendar diameter | Φ900mm | Φ700mm | Φ600mm | Φ500mm | Φ400mm |

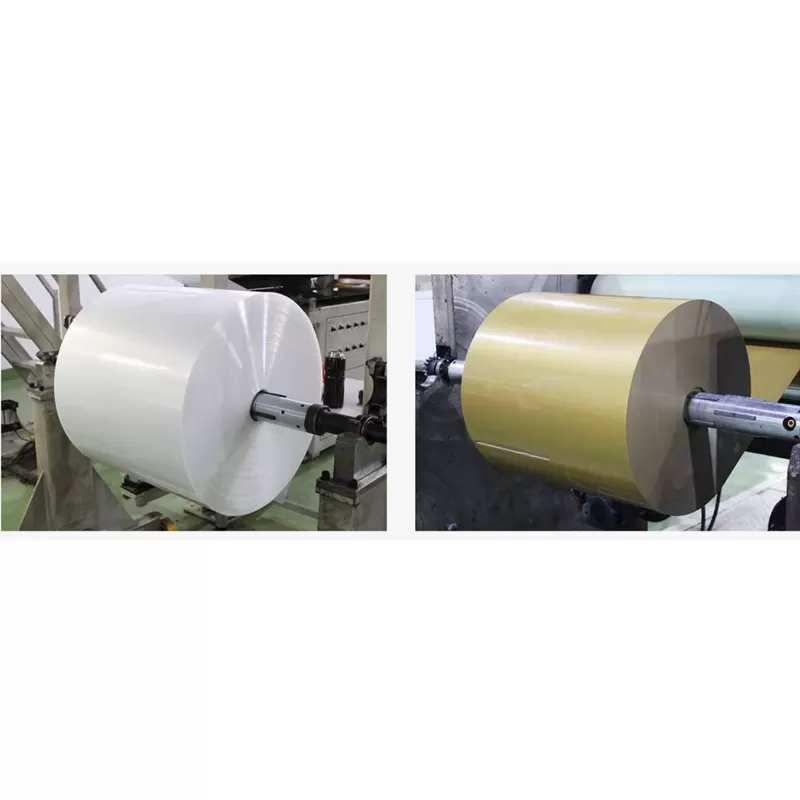

PP/PS thermoforming extrusion sheet, PP stationery extrusion sheet:

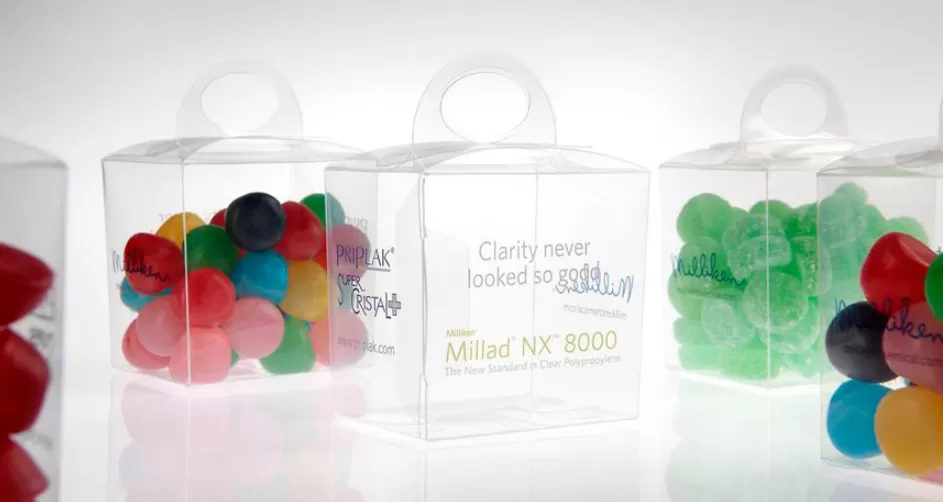

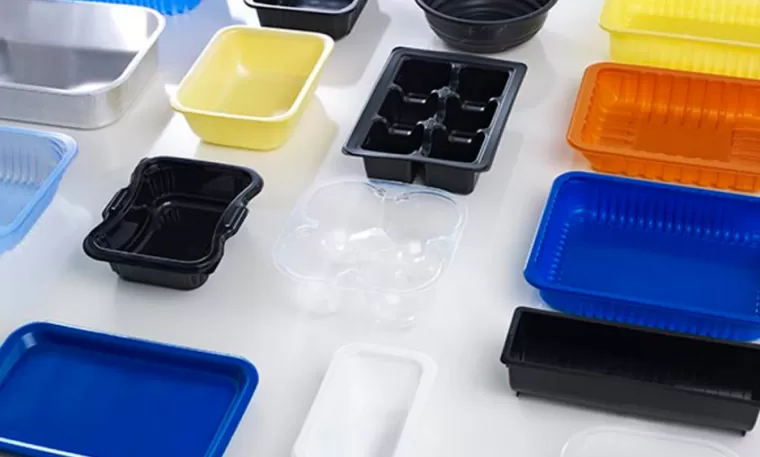

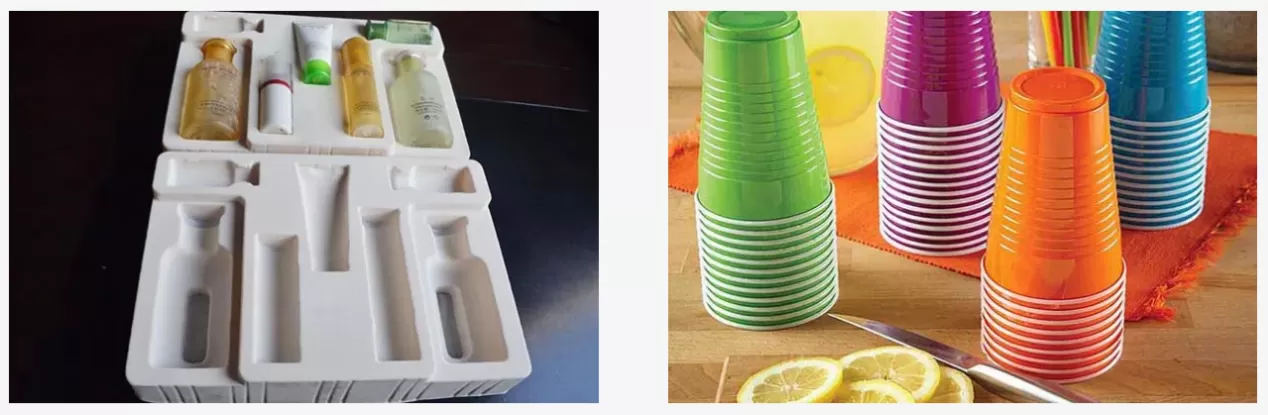

PP/PS single-layer,co-extrusion two-color,double-side transparent sheets are used in thermoforming and packing industry.
PP transparent sheet, dull polish sheet(coarse and fine), two-color sheet and some other sheets are used in stationery industry.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
