XPE/IXPE is a continuous foaming material with a smooth surface, closed independent cells and non-absorbent properties. It excels in environmental protection, flame retardancy, waterproofing, shock absorption, heat insulation, weather resistance and light weight. Widely used in automotive interiors, packaging, construction, home decoration, sports, toys, healthcare and various daily consumer goods industries.

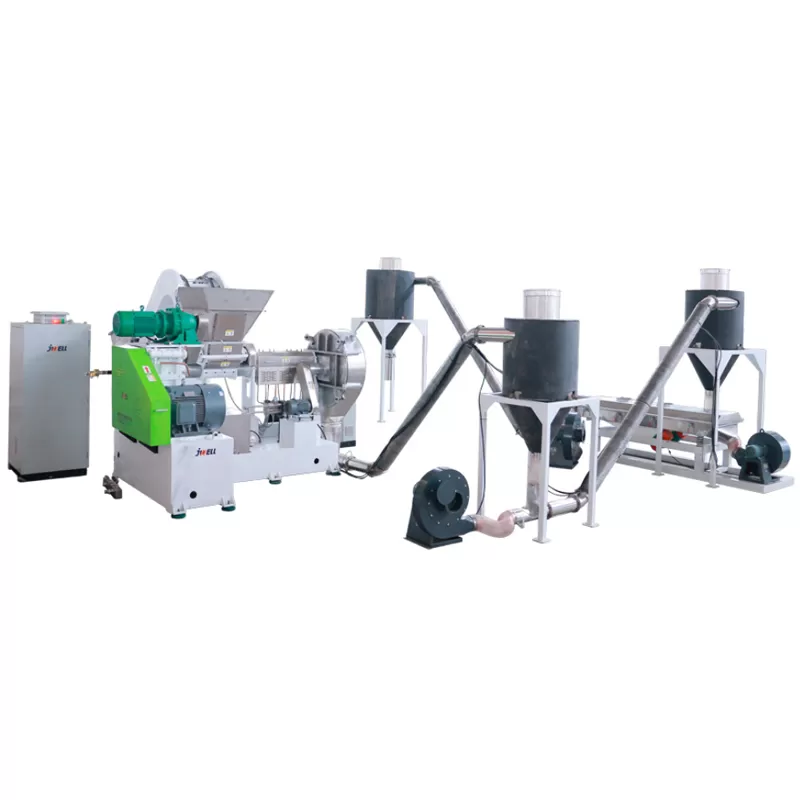

Technical mixing granulation machine parameter:
| Internal mixer | 35L | 55L | 75L |
|---|---|---|---|
| Furnace Width | 120/14 | 55+45kW | 150-200kg/h |
| Motor power | 135/14 | 75+55kW | 200-300kg/h |
| Capacity | 150/14 | 110+75kW | 300-400kg/h |

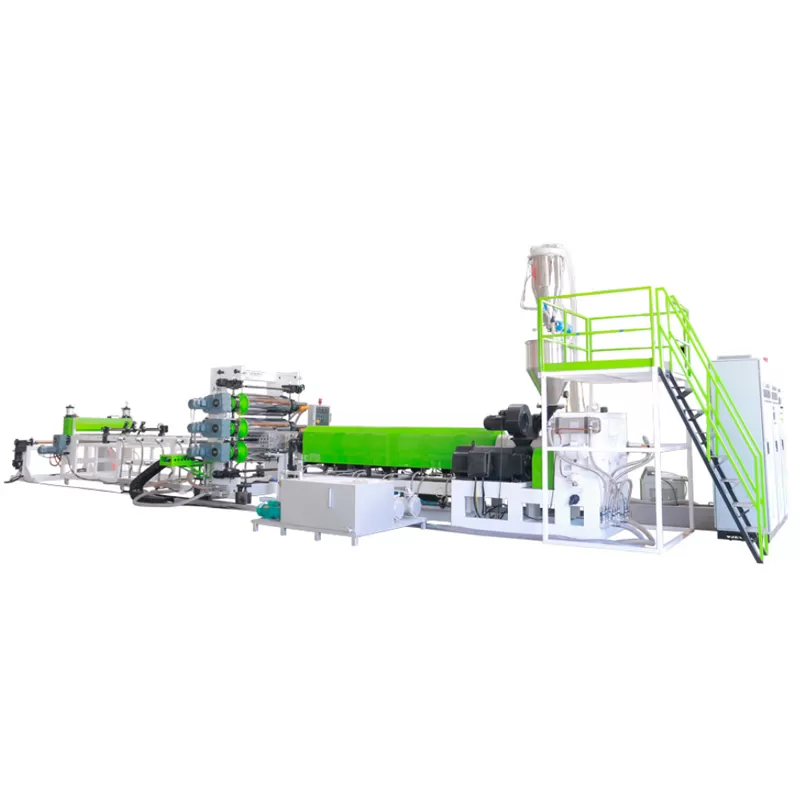

Technical LDPE sheet extrusion machine parameter:
| Extruder | JWS150/28 | JWS170/28 | JWS200/28 |
|---|---|---|---|
| Product Width | 400-600mm | 800-1300mm | 600-900mm |
| Product Thickness | 0.3-4mm | 1-4mm | 1-4mm |
| Motor Power | 132kW | 160kW | 220kW |
| Capacity | 120-150kg/h | 150-250kg/h | 250-400kg/h |

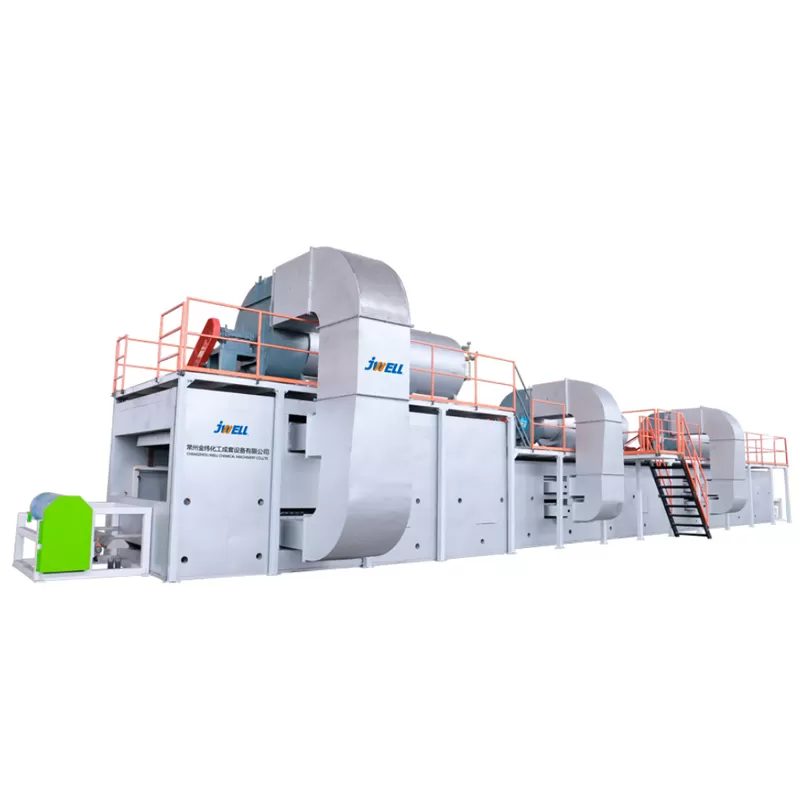

Technical Parameter of XPE Horizontal Foaming Line Data
| Furnace Width | 2700mm | 3000mm | 3800mm |
|---|---|---|---|
| Product width | 1100-1500mm | 1500-2000mm | 2000-2800mm |
| Product thickness | 4-12mm | 4-12mm | 4-12mm |
| Burner | 600×10³ Kcal | 600×10³ Kcal | 800×10³ Kcal |
| Foaming ratio | 5-40 | 5-40 | 5-40 |
Technical parameter of IXPE vertical foaming line
| Parameter | Natural gas heating (LNG/PNG/LPG) | Electric heating |
|---|---|---|
| Product width | 1000-1500mm | 1000-1500mm |
| Product thickness | 0.8-4mm | 1-4mm |
| Installed power | 70KW | 300KW |
| Linear velocity | 10-18m/min | 6-10m/min |
XPE(IXPE) is a kind of free-style continuous foaming material. The surface is bright and clean, bubble hole is airtight, independent, even, not bibulous soft qualitative material. Compared with other similar products, its performance is more excellent, especially in environmental protection, flame retardant, insulation, waterproof, moisture-proof, shock absorption, buffering, resilience, heat preservation, heat insulation, weather resistance, aging resistance, drug resistance, light weight, easy processing and molding, pollution-free and other aspects are other materials can not simultaneously.
Lining so XPE (IXPE) as core material and packing material has been widely applied to automobile interior trim, sports leisure, tourism supplies, packaging, refrigeration, building decoration, home decoration, public, as well as shoes, bags, friction materials, agriculture, forestry and fisheries, Marine navigation industry, children's toys, health care, and various kinds of general merchandise industry, and other fields.
Jwell started manufacturing screws and barrels in 1978, making it one of the earliest screw and barrel manufacturers in China. Its brand, "Jinhailuo", has become well recognized in the industry. In 1997, Jwell was established to begin the production of extrusion machinery. Today, Jwell is the vice president unit of the China Plastics Machinery Industry Association and one of the technology leaders in the extrusion machinery industry.
