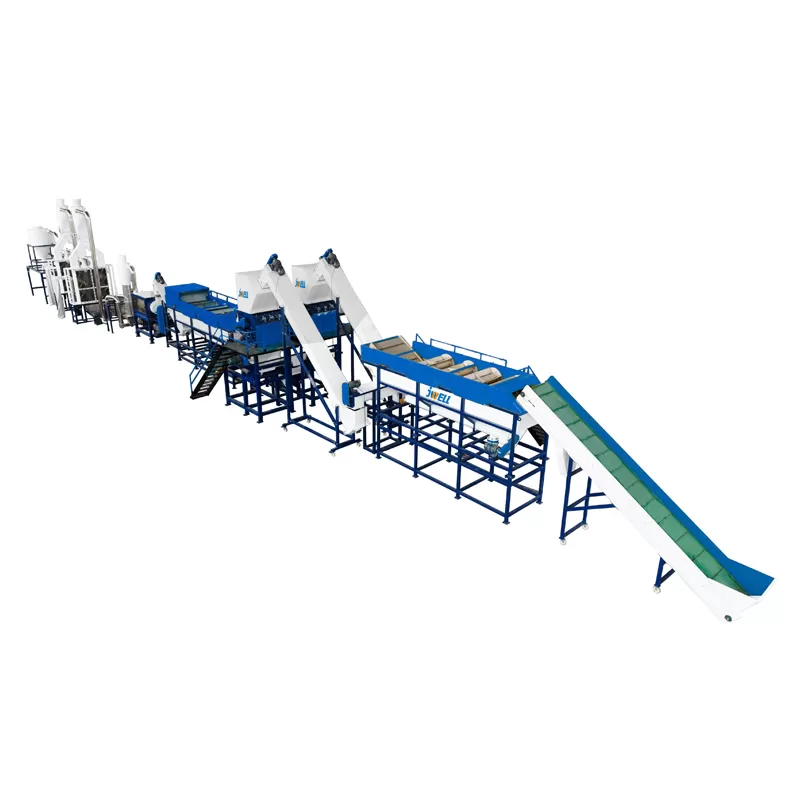

This hard plastic recycling washing line processes PP, PE, ABS and other dirty waste plastics. Specialized in HDPE/PP rigid plastic recycling, it achieves grading, crushing and washing to produce clean materials. With capacity from 500 to 2500kg/h, it features high-efficiency waste plastic regeneration.
| Model | Main motor power (KW) | Washing type | Water content | Output capacity (kg/hr) |
| FDA PP PE | 100KW | Water washing | ≤3% | 900-1000KG/HR |
This line is suitable for crushing and cleaning of various dirty plastics,such as PP, PE, PS, ABS, and PC,etc.
In the field of HDPE/PP/LDPE recycling projects. Most of the materials come from urban and industrial collection sites, their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE-PP- LLDP in the same country is different.

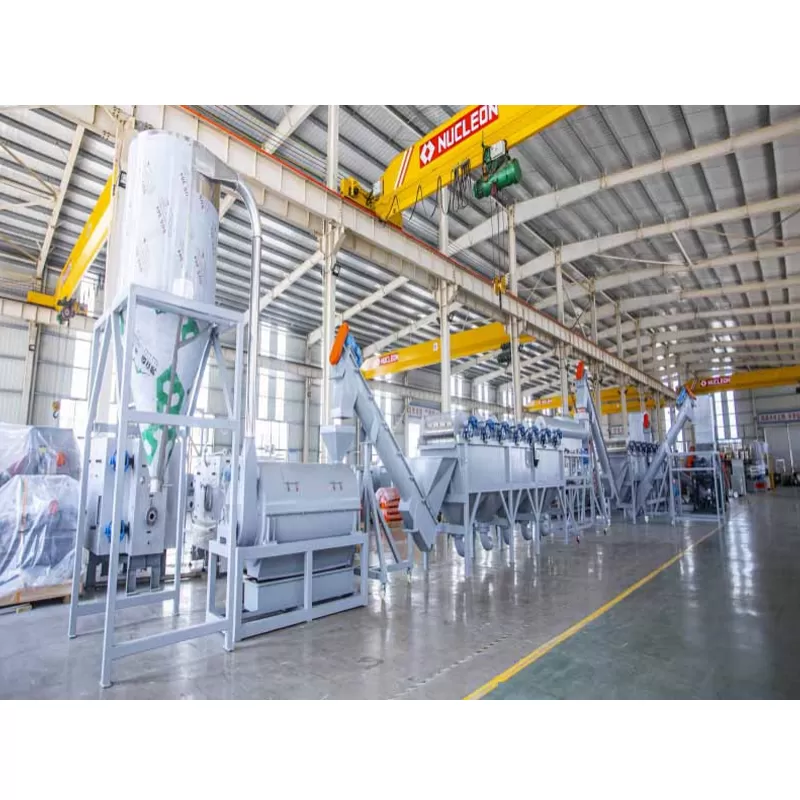

Dyun Recycle Washing Line is designed for recycling daily-use plastic products. Through grading, crushing, and washing, clean and reusable materials can be obtained for downstream use.
The raw materials that can be processed by this system are HDPE/PP bottles and utensils, HDPE/PP barrels and boxes, and HDPE/PP daily-use rigid plastics.
The Dyun hard plastic (HDPE) recycling lines have a capacity of 500 kg/h~2,500 kg/h. A high-efficiency treatment technique can greatly improve recycling efficiency.

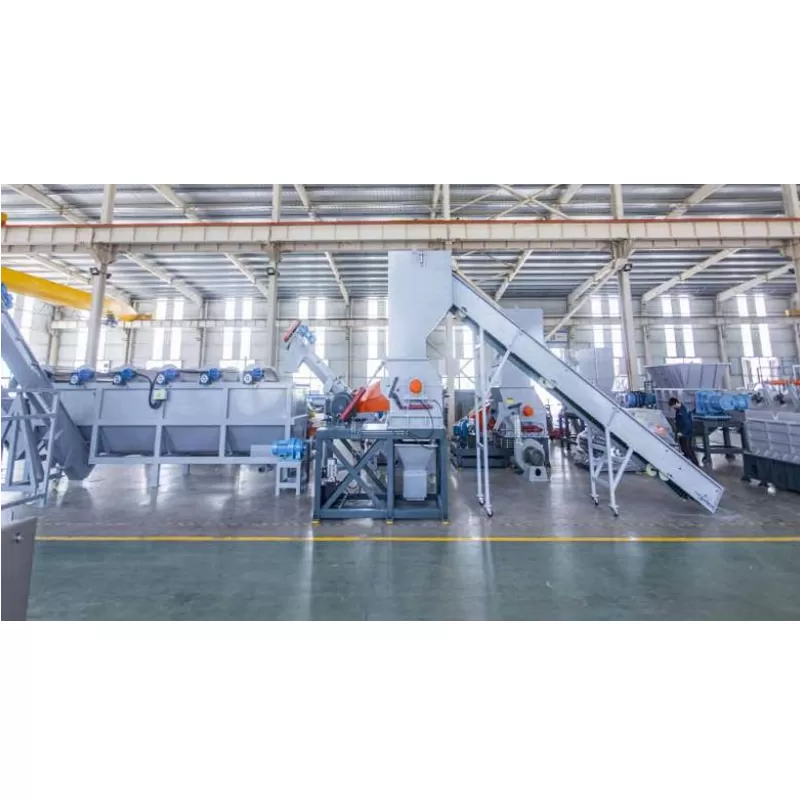

Feeding conveyor to the shredder
With load related controlling device for conveyor belt for avoiding of the overfeeding of the shredder;
Metal detector as optional, for detection of metallic contaminants for protecting of the shredder;
The speed of belt conveyor is controlled by inverter.
35% more space inside the cutting chamber ;
Variable faster ram movement;
Less space occupied than traditional shredders
with horizontal rams;
Enclosed cutting chamber to prevent materials flying out.
1. Keep washing with clean water
2. With mixing function, 3D mixing of materials
3. The retention time of materials is longer, about 30 minutes
4. Independent water treatment system
5. Water can be heated. Pre wash with hot water

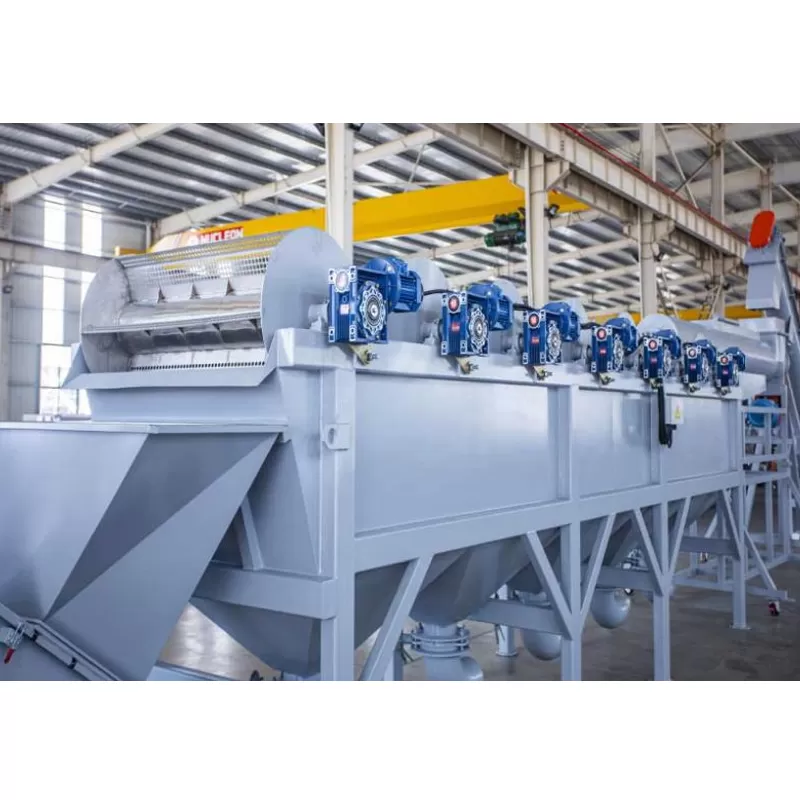

For separation of contaminants or other plastics with gravity > 1 g/cm³ from PE/PP flakes; With screw-IN and screw-OUT; Special design of inner paddles to guarantee sufficient sediment of heavy impurities; Stainless steel SUS304 body; With pneumatic water in-feed-valve, automatic level control via electronic feeler.
Handling different material, we have different kinds of drying system, squeezer or centrifugal dryer & pipeline dryer, depends on customer requirement. For soft material such as film we can either use squeezer or centrifugal dryer, after drying, material moisture will be controlled wiithin 5-8%, for rigid plastic material, we can use centrifugal dryer and pipeline dryer system, after drying, material moisture will be less than 1%.
To guarantee non-stop work and stable feeding for downstream extrusion pelletizing line, we will use a buffer silo to storage washed material. Special design can ensure no-blockage for material, at top of the silo, cyclone device for dust removing.
