Multi-layer Single layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving And High Speed Extrusion Line
This line is a new energy-saving and high-speed production line developed by our company using advanced European technology, which is suitable for the high-speed extrusion of HDPE, PP and other polyolefin pipes. The line is suitable for high speed extrusion of HDPE, PP and other polyolefin pipes. Compared with ordinary production lines, its energy saving effect reaches about 35% and its production efficiency increases by more than one times, which not only saves space and manpower costs, but also improves efficiency.
The pipeline produced by this production line has moderate rigidity, strength, good flexibility, creep resistance, environmental stress cracking resistance and good hot melt performance. It has become the preferred product of urban gas transmission pipeline and outdoor water supply pipe.
The line has a beautiful appearance, a high degree of automation and a stable and reliable production.
Technical Parameter of Multi-layer Single layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving And High Speed Extrusion Line
Type
Pipe spec(mm)
Extruder
Max.output(kg/h)
Total power(kw)
JWGXPE-63
ф20-ф63
JWSG-60/38
420
150
JWGXPE-250
Ф75-ф250
JWSG-75/38
500
230
JWGXPE-250
Ф110-ф315
JWSG-75/38
600
230
JWGXPE-450
ф200-ф500
JWSG-90/38
700
384
JWGXPE-630
ф315-ф630
JWSG-90/38
960
466
JWGXPE-800
ф400-ф800
JWSG-120/38
1200
644
JWGXPE-1000
ф500-ф1000
JWSG-120/38
1350
704
JWGXPE-1200
ф630-ф1200
JWSG-75/38
1400
817
JWGXPE-1600
ф900-ф1600
JWSG-120/38JWSG-90/38
1800
1350
JWGXPE-2400
Ф1600-ф2400
JWS90/38B
1000-1100
2700
JWGXPE-2700
Ф2200-ф3000
JWS-H120/38
3000-3400
346KWH/TON

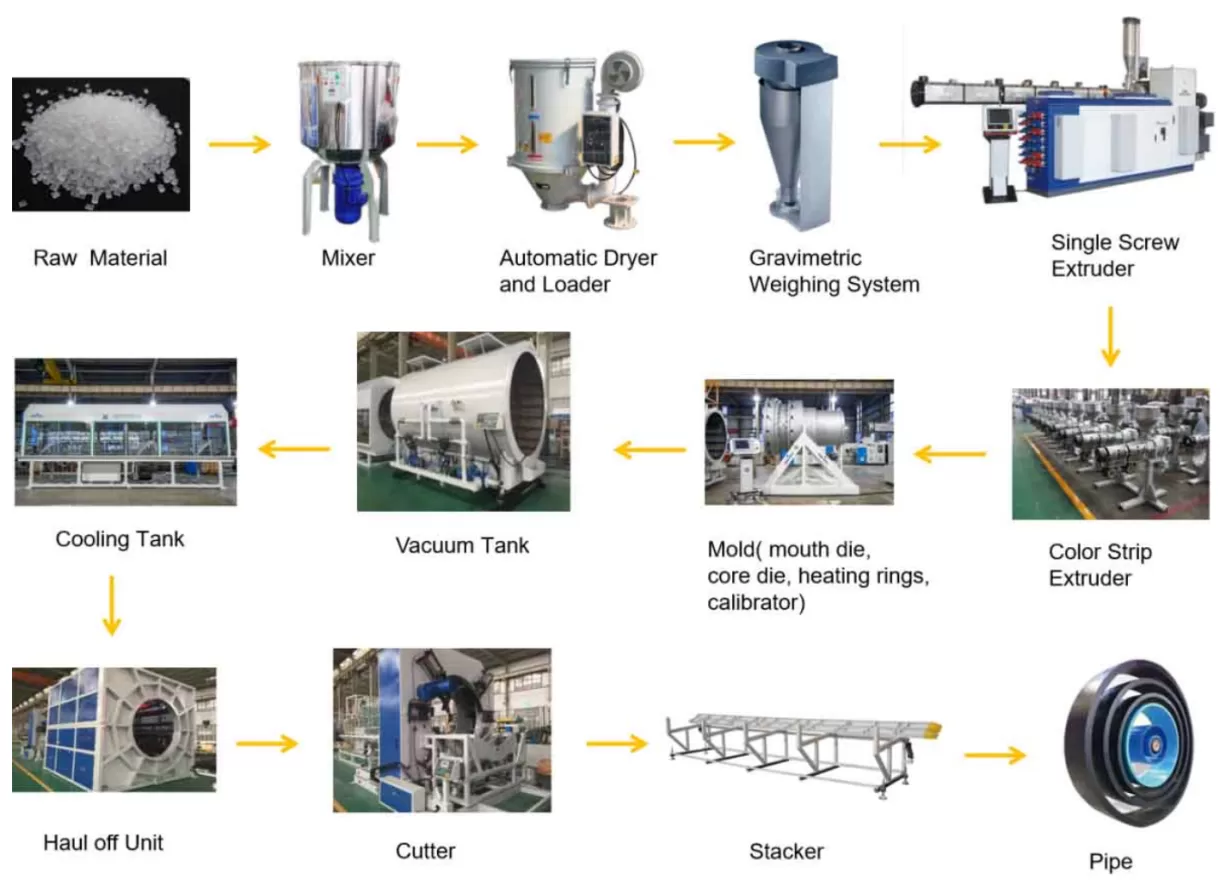

Production Process of Multi-layer Single layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving And High Speed Extrusion Line
Performance and Advantages of Multi-layer Single layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving And High Speed Extrusion Line
According to the special needs of users, we can provide 2-layer / 3-layer / 5-layer and multi-layer solid pipeline;
Multiple extruder can be synchronized, and a multiple-meter weight control system can be selected. can be centralize controlled in the main PLC to achieve precise and quantitative extrusion of each extruder.
According to the multi-layer spiral mold designed with different layers and thickness ratios, the distribution of mold cavity flow channels is reasonable to ensure that the tube layer thickness is uniform and the plasticization effect of each layer is better.
The advanced SIEMENS computer control system realizes the integration and closed-loop control of the whole line, easy for analysis of data (energy consumption display and analysis), remote diagnosis (fast after-sales service), equipment maintenance reminder (humanized reminder), raw materials section(the advanced meter-weight control technology keeps the wall thickness of the tube in a very narrow tolerance range).

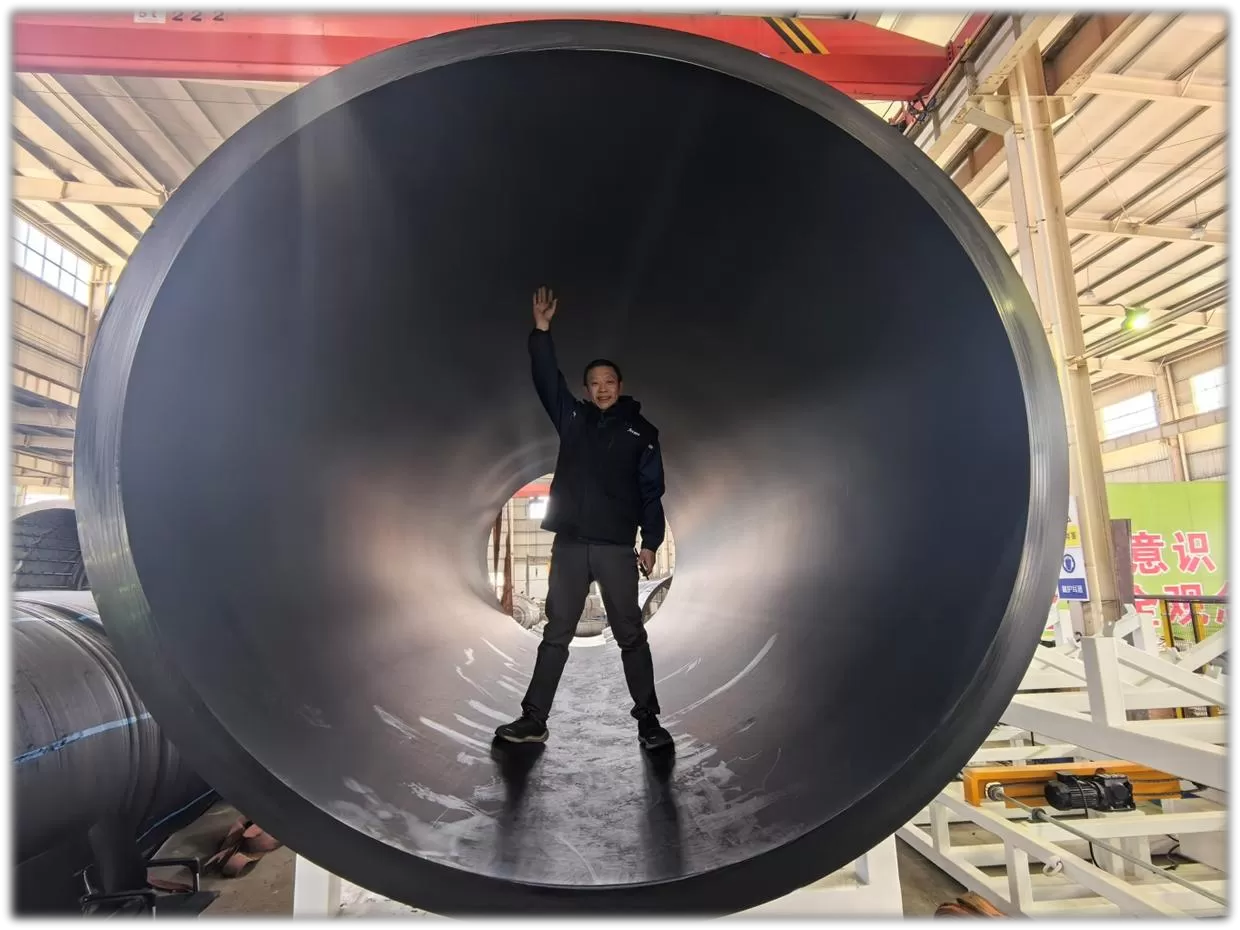

Application of Multi-layer Single layer HDPE Water Supply Pipe/Gas Pipe Energy-Saving And High Speed Extrusion Line
The pipeline produced by this production line has moderate rigidity, strength, good flexibility, creep resistance, environmental stress cracking resistance and good hot melt performance. It has become the preferred product of urban gas transmission pipeline and outdoor water supply pipe.
